130A Optimized: Precision-engineered for 130A cutting on Hypertherm HPR130XD, HPR260XD, and HPR400XD systems.
Stable Plasma Arc: Micro-laser drilled orifice (1.1mm) ensures a focused, consistent arc for clean, dross-free cuts.
Spatter Resistant: Mirror-polished electroless nickel plating prevents molten metal adhesion, reducing cleaning time.
Perfect Fit: Precision-machined threads and tapered design guarantee seamless integration with OEM-style consumables.
Cost-Effective: OEM-equivalent performance at a lower price, minimizing operational costs.
220182
HALANSM®
HLN-220182

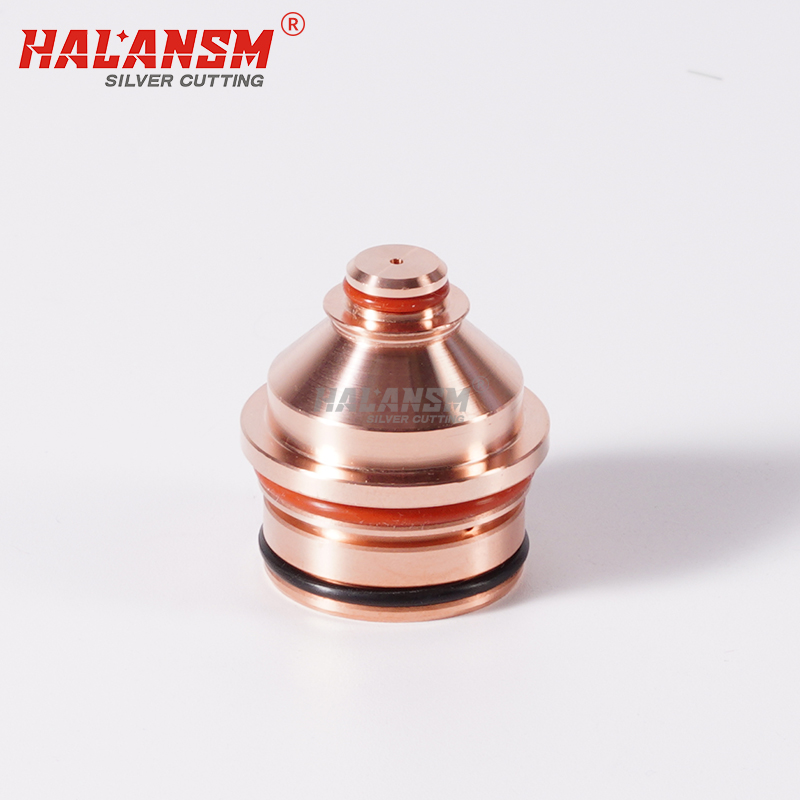

HALANSM® 220182 Nozzle – Precision Performance for HPRXD Plasma Torches
The HALANSM 220182 Nozzle is the critical component responsible for shaping and constricting the plasma arc in your Hypertherm HPRXD plasma cutting system. Designed as a direct replacement for OEM part 220182, this nozzle is precision-engineered for 130A operations on HPR130XD, HPR260XD, and HPR400XD torches, delivering unmatched cut quality and durability.
At the heart of the HALANSM 220182 is a micro-laser drilled orifice (1.1mm diameter) that has been machined to micron-level tolerances. This precision ensures the plasma arc remains focused and stable during the cutting process, resulting in:
Clean, precise cut edges with minimal dross (re-solidified molten metal).
Consistent pierce quality, even on thicker materials.
Reduced risk of arc wandering or double arcing.
The nozzle’s tapered internal chamber is designed to smoothly transition the plasma gas from the swirl ring into a tightly constricted column, maximizing cutting speed and energy efficiency.
The HALANSM 220182 features a mirror-polished electroless nickel plating that serves two critical purposes:
Spatter Resistance: The smooth, non-stick surface prevents molten metal from adhering to the nozzle, reducing the need for frequent cleaning and extending service life.
Corrosion Protection: The nickel plating protects the underlying copper alloy from oxidation and chemical damage, even in harsh industrial environments.
Every HALANSM 220182 nozzle is machined to match the exact dimensions of the original Hypertherm part:
Precision Threads: Ensure a secure, leak-proof connection to the swirl ring and retaining cap.
Tapered Outer Design: Aligns perfectly with the HPRXD torch’s internal geometry for optimal gas flow.
Hexagonal Grip: Allows for easy installation and removal using standard tools, minimizing downtime during maintenance.
Part Number: 220182
Compatible Systems: Hypertherm HPRXD Series (HPR130XD, HPR260XD, HPR400XD)
Current Rating: 130A (Mild Steel)
Material: High-Purity Copper Alloy + Electroless Nickel Plating
Orifice Diameter: 1.1mm (Laser Drilled)
Key Feature: Tapered Internal Chamber for Arc Constriction
Upgrade your plasma cutting system with the HALANSM 220182 Nozzle. Experience fewer interruptions, cleaner cuts, and maximum productivity.
Disclaimer: HALANSM® is an independent brand offering compatible aftermarket spare parts. This product is not manufactured, endorsed, or affiliated with Hypertherm, Inc.
Real Shot: Images 1–11 above show the actual HALANSM torch ceramic head, Euro connector pins, cable coil, consumable-installed view and length comparison you will receive.
