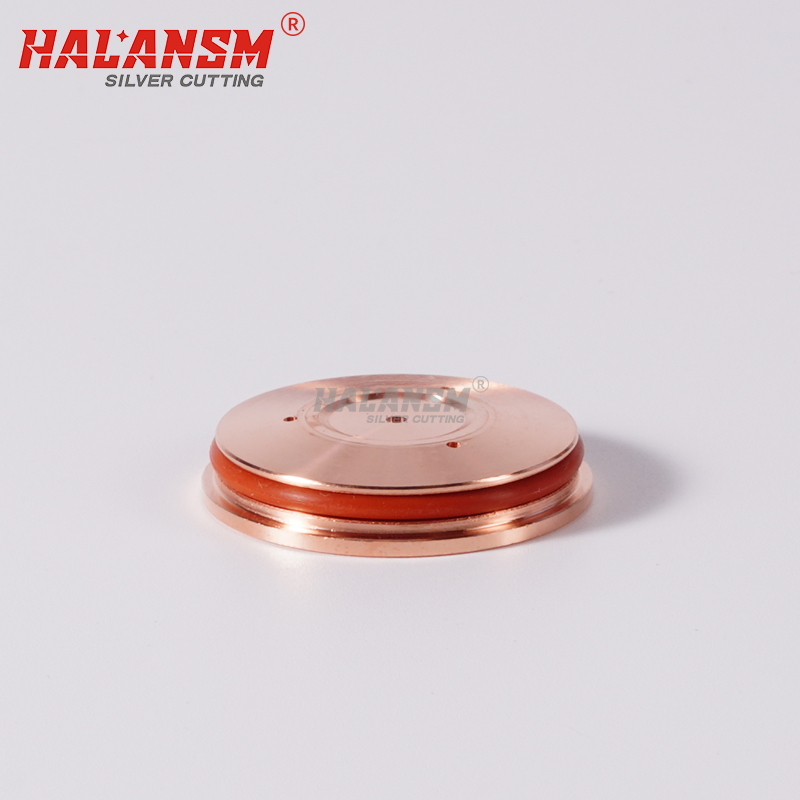

The HALANSM® 220194 is the 30A mild steel shield for the Hypertherm HPR plasma torch family — HPR130, HPR260, HPR130XD, HPR260XD, HPR400XD, HD3070, HD4070 . Copper-alloy body, precision-machined internal bore to maintain correct standoff distance and laminar gas flow around the 220193 nozzle. In the HPR 30A stack it pairs with 220192 electrode + 220180 swirl ring + 220193 nozzle + 220754 retaining cap + 220194 shield + shield cap (220173 on HPR130/260-class machines, 220747 on HPRXD-class machines) + 220340 water tube. HALANSM 220194 is OEM-profile matched to Hypertherm 220194 geometry, lower cost-per-piece than OEM, full English packaging, fast shipping. Compatible aftermarket replacement, not Hypertherm OEM.
220194
HALANSM®
HLN-220194
Shield 220194 / 30A Mild Steel Shield for HPR Series – HALANSM®
220194 is Hypertherm's 30A mild steel shield for the HPR plasma torch family. Copper-alloy body with precision-machined bore, seated between the nozzle retaining cap (220754) and the shield cap (220173 on HPR130/260-class machines, 220747 on HPRXD-class machines). Its job: protect the inner consumable stack from molten spatter and maintain the laminar gas shroud around the 220193 nozzle for a stable, focused arc and clean cut edge.
220194 in the HPR 30A Mild Steel Stack
Pos | Part | Ref |
|---|---|---|
Electrode | 220192 (30A) | 220192 |
Swirl Ring | 220180 (30A) | 220180 |
Nozzle | 220193 (30A) | 220193 |
Retaining Cap | 220754 (30–50A) | 220754 |
Shield | 220194 (30A MS) | 220194 |
Shield Cap | 220173 (HPR130/260-class) / 220747 (HPRXD-class) | 220173 / 220747 |
Water Tube | 220340 (45–260A) | 220340 |
Key Points (buyer-facing)
30A MS shield, one part number crosses all HPR machines: 220194 fits HPR130, HPR260, HPR130XD, HPR260XD, HPR400XD, HD3070, HD4070 identically . Only the shield cap on top differs by machine class (220173 vs 220747) — the shield itself is the same.
NOT a shield cap: 220194 is the shield (mid-stack protective sleeve around the nozzle). The shield cap that screws on top is 220173 (HPR130/260-class) or 220747 (HPRXD-class). Do not confuse the two when ordering — both are required for a complete 30A stack.
30A-only: 220194 is rated 30A mild steel. Running it at 50A/80A/130A will cause premature shield blow-out and arc instability. Correct shields by amp: 50A = 220555, 80A = 220189, 130A = 220183, 200A = 220356 (HPR260-class) / 220761 (HPRXD), 260A = 220440 (HPR260-class) / 220764 (HPRXD), 400A = 220636 (HPRXD) .
Change as a set: Per Hypertherm's own guidance, HPR consumables interact synergistically — always replace electrode + swirl + nozzle + retaining cap + shield + shield cap together for peak cut quality and life .
NOTE: 220194 = 30A MS shield. Shield cap pairing: HPR130/260-class → 220173; HPRXD-class (HPR130XD/HPR260XD/HPR400XD) → 220747. The 30A stack is identical across all HPR machines except the shield cap number. HALANSM 220194 is an aftermarket compatible replacement, not Hypertherm OEM.
