220937 HALANSM® Electrode 50A 200A for Hypertherm HyPro2000 Upgrade Torch for HT2000 / MAX200 / MAXPRO200 Plasma Cutting Systems

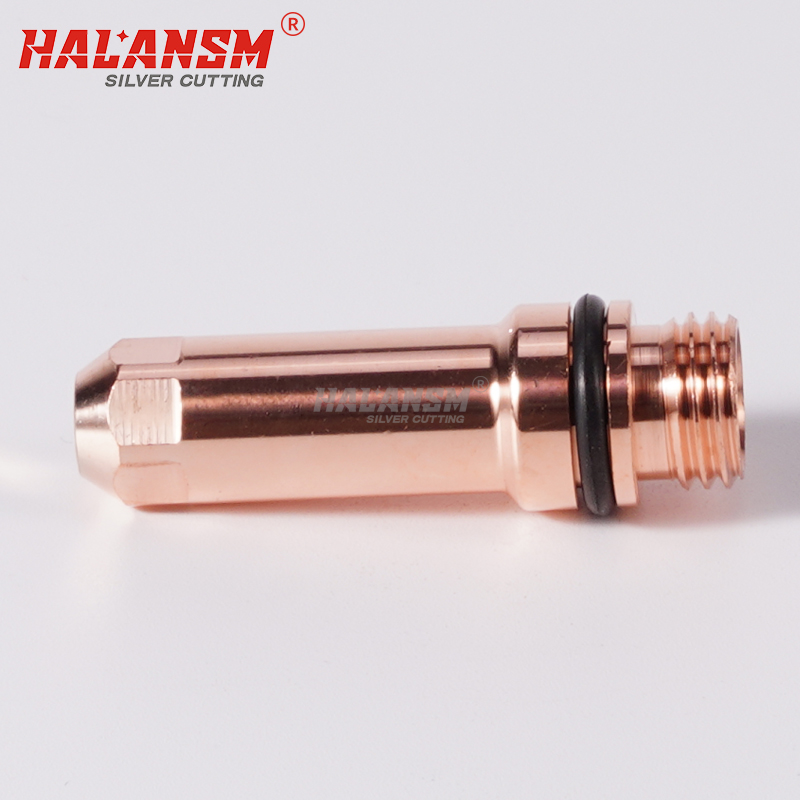

HALANSM® 220937 Electrode — 200A for HyPro2000 Upgrade Torch for HT2000 / MAX200 / MAXPRO200

The HALANSM® 220937 is the designated 200A electrode for Hypertherm's HyPro2000 upgrade torch for HT2000, the HyPro2000 retrofit on MAX200, and the native MAXPRO200. As the component where the plasma arc is born, the electrode governs two factors that decide your cut quality and your cost-per-part at the 200A class: arc-start reliability and how tightly the arc is constrained before it reaches the nozzle. A worn or off-center electrode causes wandering arcs, excessive dross, and accelerated nozzle erosion.

Why 220937 is the right electrode for 200A work

Across all three host platforms, the 220937 is the specified 200A electrode:

• HyPro2000 upgrade torch for HT2000 — 200A O₂ (mild steel): 220832 shield · 220936 outer cap · 220831 nozzle · 220834 swirl ring · 220937 electrode · 220521 water tube · 220935 inner cap (without tab)

• HyPro2000 retrofit torch for MAX200 — 200A: identical stack as above

• Native MAXPRO200 machine torch — 200A: 220832 / 420059 shield · 220936 outer cap · 220831 / 420044 nozzle · 220834 swirl ring · 220937 electrode · 220521 water tube · 220935 inner cap

One electrode, three host torches, the maximum current class in the HyPro2000/MAXPRO200 family.

Key Features

• Advanced Hafnium Insert Technology: The embedded hafnium insert is specifically engineered to withstand the extreme temperatures of a 200A plasma arc. It provides exceptional arc-starting reliability and maintains consistent cutting performance throughout its long service life — far outlasting standard copper-only electrodes at this amperage.

• Superior Thermal Management: Constructed from high-purity copper alloy, the electrode body offers excellent thermal conductivity to effectively dissipate heat away from the hafnium insert. This prevents premature melting and cracking — the two failure modes that end an electrode's life at 200A.

• Precision Engineering: Tight manufacturing tolerances ensure perfect alignment within the torch head, promoting efficient gas flow and optimal arc constriction for clean, dross-free cuts. The hafnium insert is centered to micron-level tolerance so the emitted electron beam stays coaxial with the 220834 swirl-ring vortex.

• Dual-Gas 200A Rating: The 220937 carries a full 200A load in both air (mild steel / stainless / aluminum) and oxygen (mild steel). This eliminates the need to stock separate electrodes per gas at 200A — a genuine inventory simplification on mixed-material, heavy-plate jobs.

200A Consumable Stack (O₂ process — Mild Steel)

200A Consumable Stack (Air process — Mild Steel / Stainless / Aluminum)

NOTE: 220937 = 200A electrode. Compatible hosts: HyPro2000 upgrade torch for HT2000, HyPro2000 retrofit for MAX200, and MAXPRO200 machine torch — all at 200A for both Air (mild steel / stainless / aluminum) and Oxygen (mild steel). Features a hafnium insert for superior arc-start reliability and extended service life at maximum amperage. For 130A use 220487; for 50A use 220528. Always inspect the electrode tip for excessive cratering or cracking when cut quality degrades — a worn electrode causes arc wander, double-arcing, and accelerated nozzle failure. HALANSM® is an independent aftermarket manufacturer; this part is a compatible replacement for Hypertherm® systems.

Real Shot: Images above show the actual HALANSM torch ceramic head, Euro connector pins, cable coil, consumable-installed view and length comparison you will receive.
