The HALANSM 020605 is the 200A O₂ nozzle for Hypertherm MAX200 and Ht2000 200A-class torches. Bore and gas path are tuned for O₂ heavy-plate cutting, distinct from 020608 which runs Air/N₂/underwater. On MAX200 200A O₂ standard stack it pairs with 220021 O₂-rated elec + 020604 or 020607 swirl + 020424 shield + 120837 copper cap. OEM reference: Hypertherm 020605 appears on both MAX200 and Ht2000 parts lists — buyer must confirm host label before ordering, as the two 200A hosts use different torch bodies, retaining cap threads, and swirl seats.
020605
HALANSM®
HLN-020605

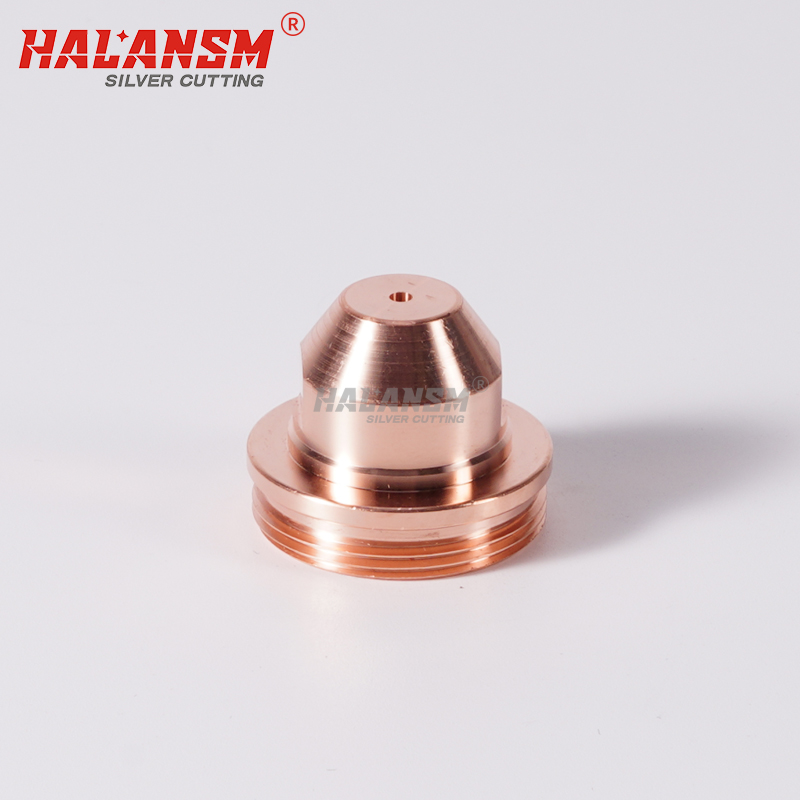

Nozzle 020605 / 200A O₂ Heavy-Plate Nozzle for Hypertherm MAX200 & Ht2000 – HALANSM
020605 is the Hypertherm 200A-class O₂ cutting nozzle, listed under two hosts: MAX200 200A O₂ standard and Ht2000 HySpeed 200A. Bore is tuned for O₂ thermal load and oxidation cutting — distinct from 020608 which runs Air/N₂/underwater. Running 020605 on Air/N₂ gives premature tip failure and heavy dross; running 020608 on O₂ gives unstable arc on heavy plate.
020605 in MAX200 200A O₂ standard stack
Pos | Part | Ref |
|---|---|---|
Electrode | 220021 (O₂-rated) or 120415 | 220021 / 120415 |
Swirl | 020604 (O₂ swirl) or 020607 | 020604 / 020607 |
Nozzle | 020605 (200A O₂) | 020605 |
Shield | 020424 (200A universal) | 020424 |
Retaining Cap | 120837 (copper, 40/100/200A universal) | 120837 |
Key Points (buyer-facing)
O₂-only bore, do not swap with 020608: MAX200 200A runs three nozzles by gas — Air/N₂/underwater = 020608, O₂ standard = 020605, gouging = 020615. Nozzle and gas must match; mismatched pair shortens life and ruins cut quality.
Confirm host label "MAX200" vs "Ht2000 HySpeed": Both hosts list 020605, but torch body, retaining cap thread, and swirl seat differ. MAX200 uses 120837 copper cap; Ht2000 HySpeed is the older HySpeed line (different cap thread). Forcing MAX200 consumables onto Ht2000 barrel (or vice versa) causes gas leaks and arc wander. Have the buyer confirm the host badge before ordering.
Electrode choice by duty: For pure O₂ heavy-plate runs, 220021 (O₂-rated) lasts longer than 120415 (Hf, shared Air/N₂/O₂). Shops mixing Air/N₂/O₂ on the same 200A head can standardize on 120415 to reduce SKUs; dedicated O₂ lines should use 220021.
200A shield is gas-universal on MAX200: 020424 covers Air/N₂/O₂ at 200A on MAX200 machine barrel — swap elec/swirl/noz by gas, shield + 120837 cap stay. Fewer SKUs than lower amps where shield often splits by gas.
NOTE: Ht2000 HySpeed 200A ≠ MAX200 ≠ MAXPRO200. 020605 part number appears on both MAX200 and Ht2000, but full stacks are not interchangeable (torch body, cap thread, swirl seat differ). Other MAX200 200A nozzles: 020608 (Air/N₂/underwater), 020615 (gouging). MAX200 200A bevel stack (120260 shield + 120259 noz + 120258 elec + 120833 swirl) is separate — all use same 120837 cap.
Real Shot: Images 1–11 above show the actual HALANSM torch ceramic head, Euro connector pins, cable coil, consumable-installed view and length comparison you will receive.
