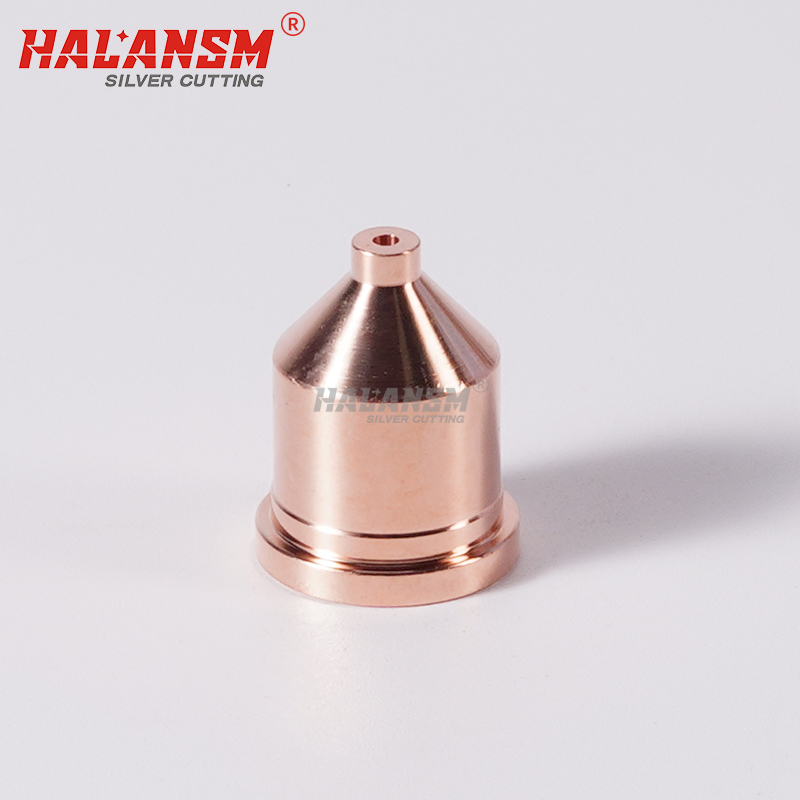

120931 Plasma Cutting Nozzle for Hypertherm Powermax 1250 (60A Handheld)

The HALANSM® 120931 is a high-performance 60-Ampere cutting nozzle specifically engineered for the Hypertherm Powermax 1250 and T80 handheld plasma systems. As the central component of the consumable stack, this nozzle focuses the plasma arc into a precise, high-velocity beam capable of cutting through medium-thickness steel with exceptional edge quality.

120931 in Powermax 1250 / T80 handheld stack

Key Features & Benefits

• Optimized for 60A Output: The precisely drilled orifice and internal geometry are calibrated for 60-Ampere cutting parameters, balancing cutting speed and cut quality for materials ranging from 12mm to 19mm (1/2" to 3/4").

• Superior Thermal Conductivity: Constructed from high-purity copper, the 120931 efficiently dissipates the intense heat generated during cutting, reducing warping and extending consumable life.

• Clean Cut Quality: HALANSM® manufacturing ensures a smooth, burr-free cut edge, minimizing the need for secondary grinding operations.

• Drop-In Replacement: Fully compatible with OEM specifications, allowing for immediate installation without modification to the torch or machine settings.

Installation & Compatibility Guide

• Handheld Specific: This nozzle is exclusively for the T80 Handheld torch system. It requires the use of the 120929 Handheld Shield. Using a mechanized shield (like 120930) will cause poor cut quality and potential torch damage.

• Correct Stack Assembly: Ensure the nozzle is installed with the swirl ring (120925) correctly positioned underneath it. Always hand-tighten the retaining cap (120928) to avoid cross-threading and damaging the electrode.

• System Lock: This consumable is part of the legacy 1209xx T80 family and is not compatible with Powermax45 (2208xx) or Powermax65-105 systems.
