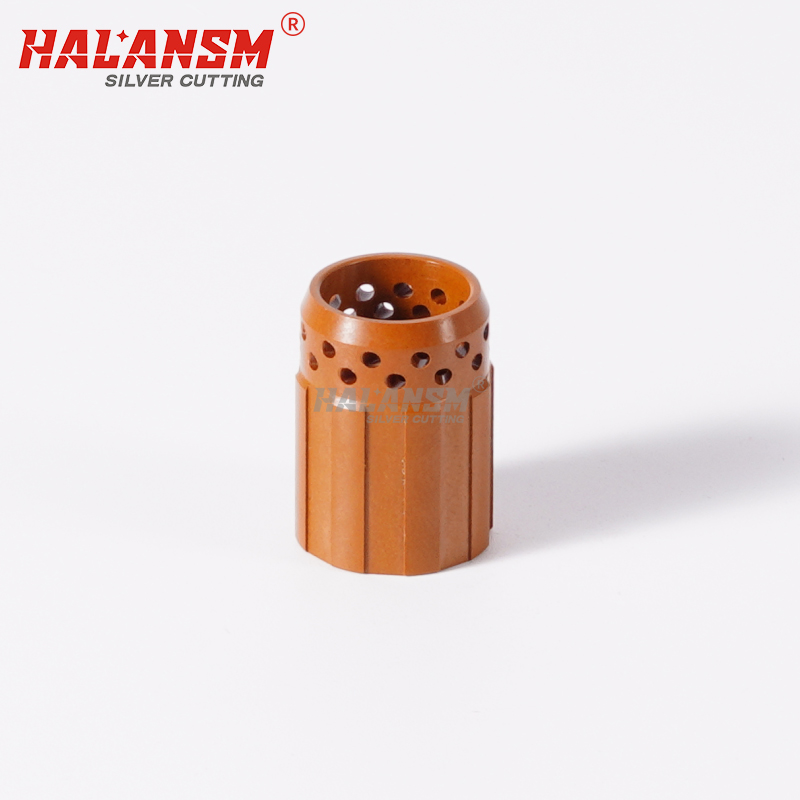

HALANSM Swirl Ring 220670 for Hypertherm Powermax 45 and 45A plasma hand torch, 15-45A drag cutting consumable HALANSM Swirl Ring 220670 for Hypertherm Powermax 45 and 45A plasma hand torch, 15-45A drag cutting consumable

loading

220670 Swirl Ring for Hypertherm Powermax 45 & 45A Plasma Cutting Torch Consumables

SKU:
Availability:
Quantity:
Inquire Add to Basket

PDF Export

HALANSM® Swirl Ring 220670: Optimized Gas Flow for Superior Cutting

The HALANSM® 220670 is a critical swirl ring component engineered for the Hypertherm Powermax 45 and 45A plasma cutting systems. Positioned between the electrode and nozzle, this component creates a rotary gas flow that stabilizes the plasma arc and directs cooling gas to the electrode tip. Manufactured to exact OEM specifications, this swirl ring ensures consistent cut quality and extended consumable life for your 15-45A drag cutting operations.

  • 220670

  • HALANSM®

  • HLN-220670

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button
Previous:
Next:
Technical Specifications
Product Description
Catalogue
Part Number​
220670
Product Type
Plasma Cutting Swirl Ring
Compatible Torch​
Hypertherm Powermax 45
Powermax 45 XP
Powermax 45A
Amperage
15 - 45 A
Application
Drag Cutting (Hand Torch)
Material
High-Temperature Copper Alloy



Enhancing Arc Stability and Consumable Life

The HALANSM® 220670 swirl ring plays a vital role in the plasma cutting process by generating a cyclonic gas flow. This rotational movement forces cooling air across the surface of the silver-core electrode, significantly extending its operational life while simultaneously focusing the plasma arc into a precise cutting stream for cleaner edge quality.


Key Features:

  • Precision Machining: Tight dimensional tolerances ensure perfect alignment within the torch head, preventing gas leaks and arc instability.

  • Optimized Flow Vanes: Specially designed internal grooves create the ideal vortex to maximize cooling efficiency and arc constriction.

  • Peak Performance: Restores drag cutting capabilities and ensures compatibility with the full range of 15-45A operations.

  • Durable Construction: High-grade copper alloy composition withstands extreme thermal cycling and mechanical wear.


Installation & Compatibility Guidelines

  • Correct Assembly Order: When servicing your torch, install the swirl ring in this sequence (from the torch body outward): Electrode (220669) -> Swirl Ring (220670) -> Nozzle (220671) -> Shield Cap (220674).

  • System Lock: The Powermax 45 / 45A platform (2208xx series) uses a different thread pattern and physical dimension set compared to the HSD130 45A system (2205xx series). Using this swirl ring on an incompatible torch will result in severe gas leakage and potential damage to the plasma system. Please verify your torch model before purchasing.
