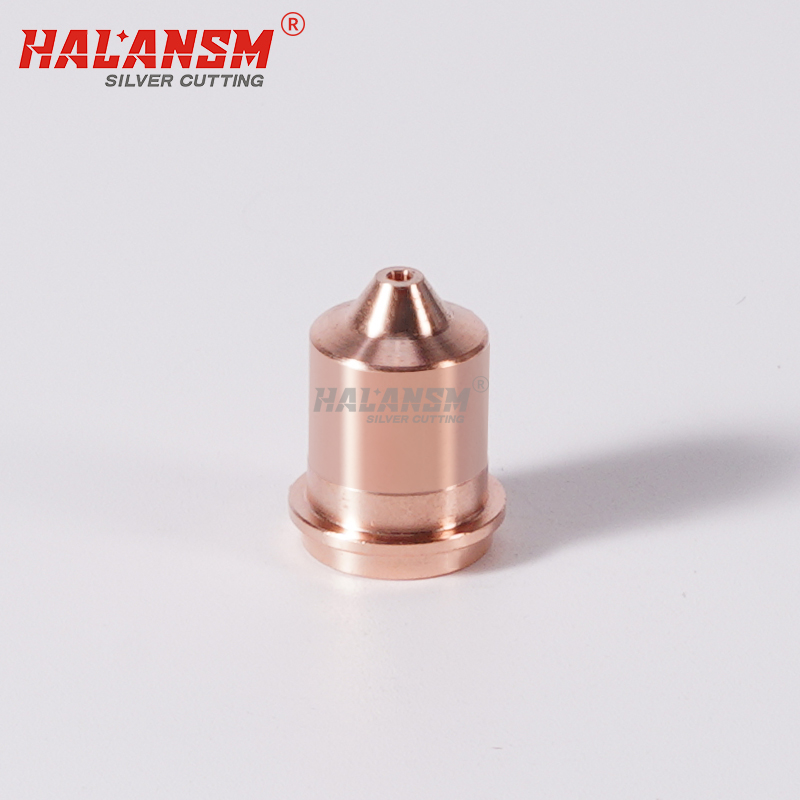

HALANSM Gouging Nozzle 220672 for Hypertherm Powermax 45 and 45A plasma hand torch, 15-45A carbon arc gouging consumable HALANSM Gouging Nozzle 220672 for Hypertherm Powermax 45 and 45A plasma hand torch, 15-45A carbon arc gouging consumable

loading

220672 Gouging Nozzle for Hypertherm Powermax 45 & 45A Plasma Torch Consumables

SKU:
Availability:
Quantity:
Inquire Add to Basket

PDF Export

The HALANSM 220672​ is the gouging nozzle for Hypertherm Powermax 45 / 45A hand torch, 15-45A carbon arc gouging tier. Bore and wall are reinforced vs standard cutting nozzle 220671 to withstand the high thermal load and arc deflection of gouging — weld prep, defect removal, back-gouge. Must pair with gouging shield 220675; using standard shield 220674 will cause arc instability and premature failure. 2208xx family, thread/seat ≠ HSD130 45A (2205xx).

  • 220672

  • HALANSM®

  • HLN-220672

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button
Previous:
Next:
Technical Specifications
Product Description
Catalogue
Part Number​
220672
Product Type
Nozzle / Gouging Tip
Compatible Torch​
Hypertherm Powermax 45
Powermax 45 XP
Powermax 45A
Amperage
15 - 45 A
Application
Carbon Arc Gouging (Hand Torch)
Material
High-Purity Copper



Gouging Nozzle 220672 / 15-45A Carbon Arc Gouging Tip for Hypertherm Powermax 45 & 45A – HALANSM

Powermax 45/45A hand torch covers two modes — drag cutting (220671) and gouging (220672). 220672 is the gouging tip: reinforced wall and bore vs 220671 to survive the high thermal load and arc deflection of carbon arc gouging — weld prep grooves, defect removal, back-gouge on structural steel.


220672 in Powermax 45/45A 15-45A gouging stack

Pos

Part

Ref

Electrode

220669 (Ag core)

220669

Swirl

220670

220670

Nozzle

220672 (gouge)

220672

Shield

220675 (gouge shield)

220675


Key Points (buyer-facing)

  • Reinforced gouging bore: Wall thicker and exit angle tuned vs 220671 (cutting) to handle gouging's high gas flow + arc deflection. Running 220671 for gouging = rapid tip failure.

  • 220675 gouge shield mandatory: 220672 on standard shield 220674 = arc won't confine, dross heavy, consumable life trashed. Gouging stack must be full set: 220669 + 220670 + 220672 + 220675.

  • 220669 Ag electrode recommended: Gouging runs hotter than cutting — 220669 silver core lasts longer than 220478 copper in this duty. If your shop stocks both elec types, label them clearly (220669 for gouging, 220478 for light cutting / Powermax 30).

  • 2208xx only: Powermax 45/45A/45XP consumable family. HSD130 45A runs 2205xx (220525/220528 etc.) — thread, seat, swirl land all differ. Forcing 220672 onto HSD130 = gas leak + burnt cap.

NOTE: For cutting mode on same Powermax 45/45A torch, switch to 220671 nozzle + 220674 shield. Do not run gouging nozzle 220672 for cutting — bore profile wrong, waste of tip.


Real Shot: Images 1–11 above show the actual HALANSM torch ceramic head, Euro connector pins, cable coil, consumable-installed view and length comparison you will receive.


replacement-parts-hypertherm-powermax45-45a-consumables-chart

Download the complete product brochure：
