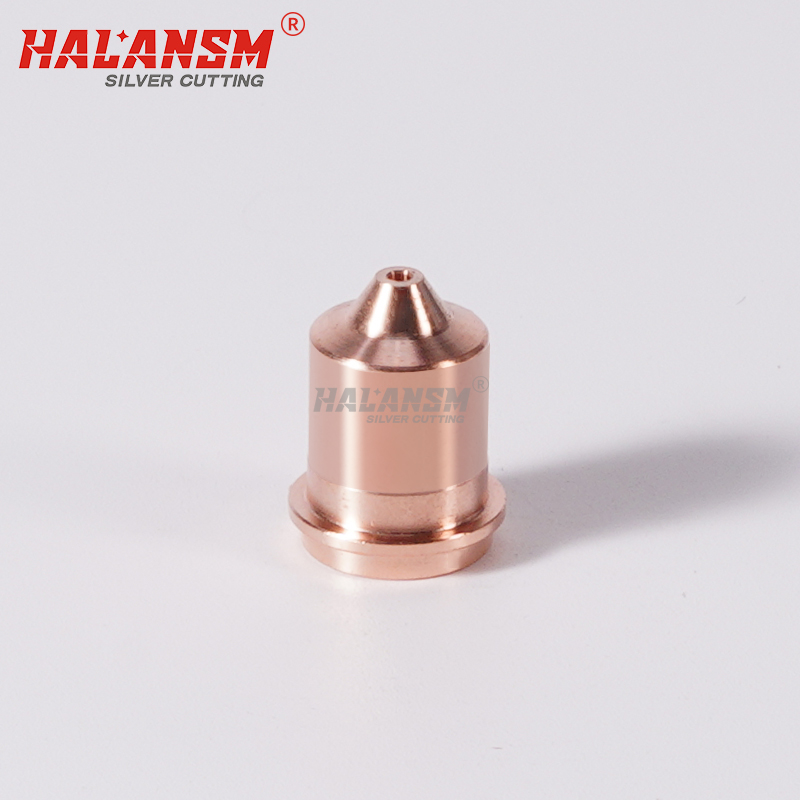

HALANSM 220718 Unshielded Cutting Nozzle for Hypertherm Powermax 45 and 45A Plasma Torch HALANSM 220718 Unshielded Cutting Nozzle for Hypertherm Powermax 45 and 45A Plasma Torch

loading

220718 Plasma Cutting Nozzle for Hypertherm Powermax 45 / 45A

SKU:
Availability:
Quantity:
Inquire Add to Basket

PDF Export

The HALANSM® 220718​ is the standard cutting nozzle for the Hypertherm Powermax 45 / 45A plasma systems (15-45A range). Unlike the shielded versions, this unshielded tip features a longer, precision-machined bore designed for direct contact or near-contact drag cutting. This OEM-matched component ensures consistent, dross-free cuts and extended service life, offering a reliable and cost-effective alternative for industrial fabrication.

  • 220718

  • HALANSM®

  • HLN-220718

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button
Previous:
Next:
Technical Specifications
Product Description
Catalogue
Part Number​
220718
Product Type
Cutting Nozzle / Tip
Compatible Torch​
Hypertherm Powermax 45
Powermax 45 XP
Powermax 45A
Amperage
15 - 45 A
Application
Standard Drag Cutting (Unshielded)
Material
High-Purity Copper



Precision Drag Cutting for Powermax 45 / 45A Systems

The HALANSM® 220718 Cutting Nozzle is specifically engineered for direct drag cutting applications on the Hypertherm Powermax 45 / 45A hand torch. Its elongated, precision-machined bore allows the torch to be guided directly along the material surface, eliminating the need for a separate shield cap and simplifying the consumable stack for specific cutting tasks.


Key Points (buyer-facing)

  • Drag Cutting Optimized: The 220718 features a longer, smooth bore profile specifically designed to maintain arc stability and gas flow when the torch is in direct contact with or held close to the workpiece.

  • Extended Tip Life: Constructed from high-purity copper with a reinforced structure to withstand the extreme thermal load and mechanical stress of continuous drag cutting operations.

  • Simplified Consumable Stack: As an unshielded nozzle, it reduces the number of components required for certain cutting tasks, lowering overall operating costs and minimizing potential points of failure.

  • HALANSM Quality Assurance: Manufactured to exact OEM specifications to ensure perfect drop-in compatibility, consistent high performance, and exceptional durability at a competitive value.


Critical Installation & Compatibility Guidelines

  • Correct Consumable Stack: For standard drag cutting with this nozzle, the correct assembly order (from the torch body out) is: Electrode (220669) -> Swirl Ring (220670) -> Unshielded Nozzle (220718). Do not install a shield cap over this nozzle.

  • Unshielded Design: This nozzle is mechanically and functionally incompatible with standard shielded configurations. Using 220718 with a shield cap (220673 or 220674) will result in improper arc deflection and reduced cut quality.

  • System Lock: This consumable is part of the 2208xx series for the Powermax 45/45A system. It is NOT mechanically or electrically compatible with the HSD130 45A system (which uses 2205xx series parts). Please verify your torch model before purchasing.


Real Shot: Images 1–11 above show the actual HALANSM torch ceramic head, Euro connector pins, cable coil, consumable-installed view and length comparison you will receive.


replacement-parts-hypertherm-powermax45-45a-consumables-chart

Download the complete product brochure：
