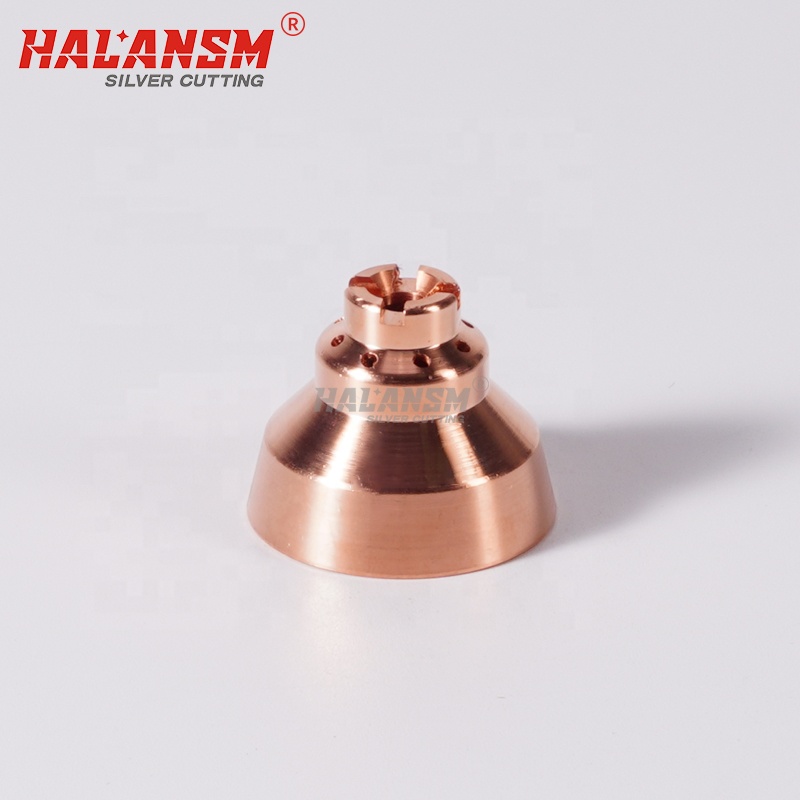

The HALANSM® 220674 is the standard shield cap engineered for the Hypertherm Powermax 45 / 45A plasma systems (15-45A range). Positioned at the extremity of the torch, it collaborates with the cutting nozzle to provide optimal arc confinement and robust protection against molten spatter. This OEM-matched component ensures consistent cut quality and extended service life, offering a reliable and cost-effective alternative for industrial fabrication.
220674
HALANSM®
HLN-220674
Superior Arc Confinement and Torch Protection for Standard Cutting
The HALANSM® 220674 Shield Cap serves as a critical protective barrier for the Hypertherm Powermax 45 / 45A hand torch. Located at the very tip, it safeguards the precision-engineered swirl ring and torch body from high-velocity molten metal spatter and abrasive debris. Its precisely machined tapered face and internal geometry work in tandem with the 220671 cutting nozzle to focus and stabilize the plasma arc, which is essential for achieving clean, precise, and dross-free cuts on various material gauges.
Key Points (buyer-facing)
Optimized for Standard Cutting: The 220674 features a smooth face and specific standoff distance specifically designed for efficient drag cutting when paired with the 220671 nozzle.
Peak Torch Protection: Acts as the primary defense against extreme thermal and physical damage, preventing costly internal torch failures and significantly extending the lifespan of the entire consumable stack.
Exceptional Thermal Management: Constructed from high-purity copper to provide maximum thermal conductivity, effectively dissipating extreme heat and resisting warping or deformation under continuous heavy-duty use.
HALANSM Quality Assurance: Manufactured to exact OEM tolerances to ensure perfect drop-in compatibility, consistent high performance, and exceptional durability at a competitive value.
Critical Installation & Compatibility Guidelines
Correct Consumable Stack: For standard cutting operations, the correct assembly sequence (from the torch body outwards) is: Electrode (220669) -> Swirl Ring (220670) -> Cutting Nozzle (220671) -> Shield Cap (220674).
Shield Cap Distinction (Crucial): The 220674 is the STANDARD shield specifically for cutting. It is mechanically incompatible with the gouging nozzle (220672). Forcing 220674 onto a gouging setup (or using a gouging nozzle with it) will result in torch shutdown errors or immediate consumable failure. Always ensure you are using the correct shield for your application (220674 for cutting, 220675 for gouging).
System Lock: This consumable is part of the 2208xx series for the Powermax 45/45A system. It is NOT mechanically or electrically compatible with the HSD130 45A system (which uses 2205xx series parts). Please verify your torch model before purchasing.
Real Shot: Images 1–11 above show the actual HALANSM torch ceramic head, Euro connector pins, cable coil, consumable-installed view and length comparison you will receive.
