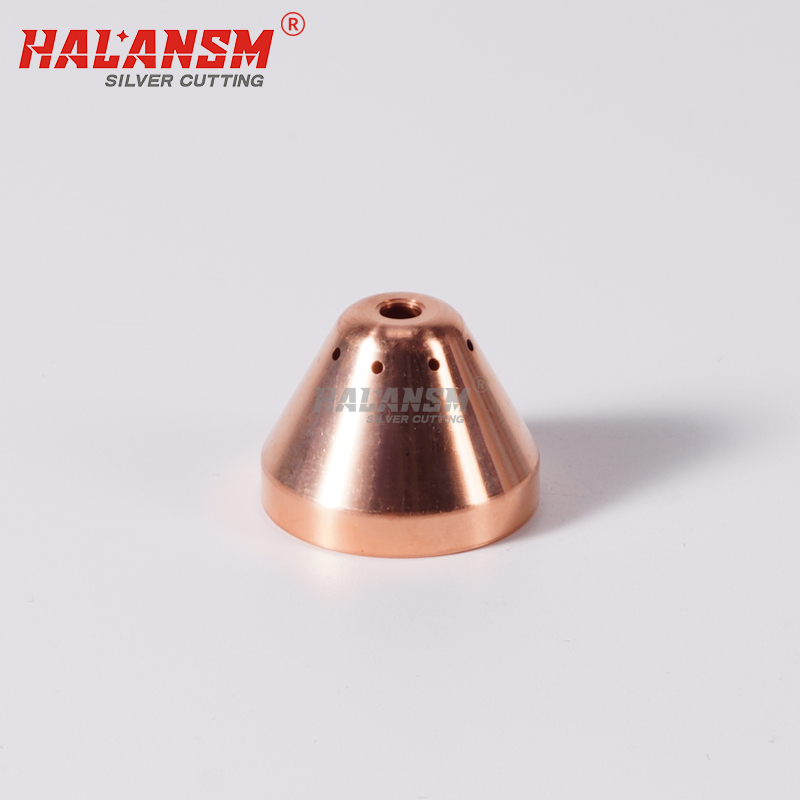

220673 Replacement Shield for Hypertherm Powermax 45 / 45A Plasma Cutting Torch

SKU:
Availability:
Quantity:
Inquire Add to Basket

PDF Export

The HALANSM® 220673​ is the standard shield cap for the Hypertherm Powermax 45 / 45A plasma system (15-45A range). Positioned at the tip of the torch, it works in tandem with the nozzle to provide optimal arc confinement and protect the torch internals from spatter and debris during standard drag cutting. This OEM-matched replacement ensures consistent cut quality and extended consumable life, representing a reliable and cost-effective alternative for daily fabrication tasks.

  • 220673

  • HALANSM®

  • HLN-220673

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button
Previous:
Next:
Technical Specifications
Product Description
Catalogue
Part Number​
220673
Product Type
Shield Cap / Deflector
Compatible Torch​
Hypertherm Powermax 45
Powermax 45 XP
Powermax 45A
Amperage
15 - 45 A
Application
Standard Drag Cutting
Material
High-Purity Copper



Enhanced Protection and Arc Confinement for Standard Cutting

The HALANSM® 220673 Shield Cap is an essential protective component for the Hypertherm Powermax 45 / 45A hand torch. Located at the very tip, it shields the critical swirl ring and torch body from molten metal spatter and airborne debris generated during the plasma cutting process. Its precisely engineered tapered face and internal bore work synergistically with the 220671 cutting nozzle to focus and stabilize the plasma arc, ensuring clean, dross-free cuts on various material thicknesses.


Key Points (buyer-facing)

  • Optimized for Standard Cutting: The 220673 features a smooth face and specific standoff distance designed exclusively for drag cutting with the 220671 nozzle.

  • Torch Protection: Acts as the first line of defense against high-velocity spatter, preventing damage to the swirl ring and retaining ring, thereby extending the life of the entire torch assembly.

  • Premium Material Integrity: Constructed from high-purity copper for maximum thermal conductivity, allowing the shield to dissipate extreme heat effectively and resist warping.

  • HALANSM Quality Assurance: Manufactured to stringent OEM specifications to ensure perfect drop-in fitment and consistent performance at a competitive value.


Critical Installation & Compatibility Guidelines

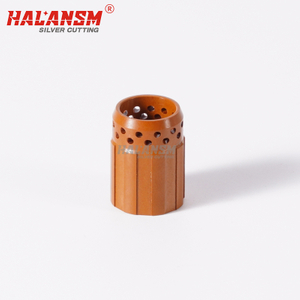

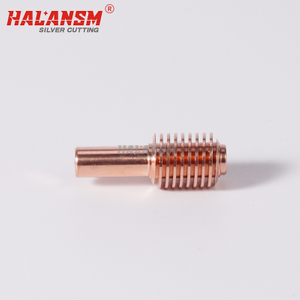

  • Correct Consumable Stack: For standard cutting, the correct assembly order (from the torch body out) is: Electrode (220669) -> Swirl Ring (220670) -> Cutting Nozzle (220671) -> Shield Cap (220673) .

  • Shield Cap Distinction (Crucial): The 220673 is the STANDARD shield for cutting. It is mechanically incompatible with the gouging nozzle (220672). Using 220673 with 220672 will cause the torch to shut down or result in catastrophic consumable failure. For gouging, you must purchase the 220675 gouging shield.

  • System Lock: This consumable is part of the 2208xx series for the Powermax 45/45A system. It is NOT compatible with the HSD130 45A system (2205xx series). Please verify your torch model before purchasing.


Real Shot: Images 1–11 above show the actual HALANSM torch ceramic head, Euro connector pins, cable coil, consumable-installed view and length comparison you will receive.
