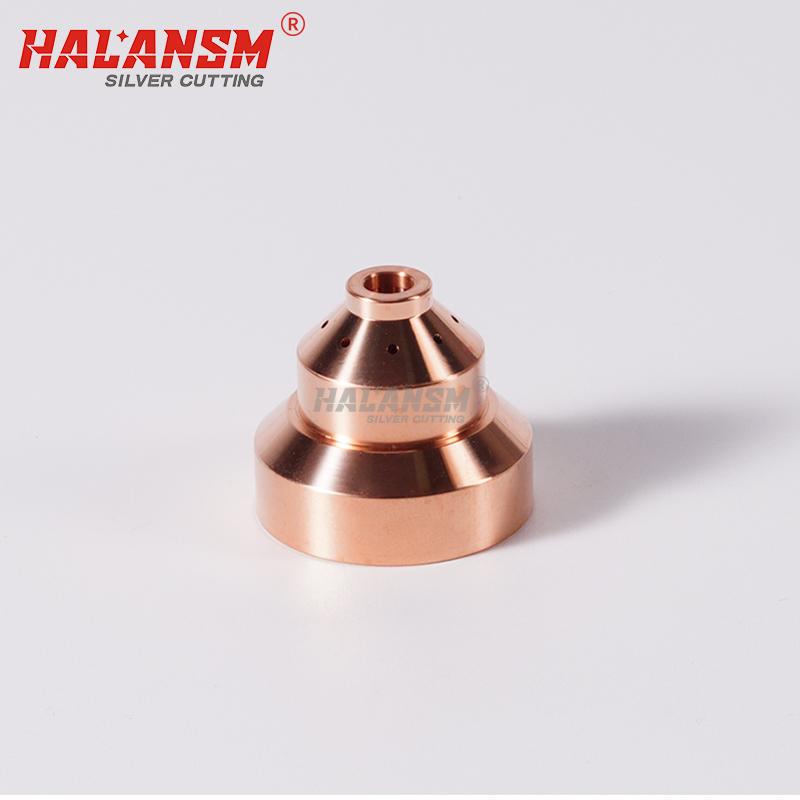

HALANSM 120930 shield cap for Hypertherm Powermax 1250 1650 mechanized torch 40-80A HALANSM 120930 shield cap for Hypertherm Powermax 1250 1650 mechanized torch 40-80A

loading

120930 Plasma Cutting Shield Cap for Hypertherm Powermax 1250 (Mechanized))

SKU:
Availability:
Quantity:
Inquire Add to Basket

PDF Export

The HALANSM® 120930​ is a high-quality machine (mechanized) cutting shield cap designed for the Hypertherm Powermax 1250 and 1650 systems. Rated for 40-80 Amps, this consumable is specifically engineered for automated cutting tables, featuring a robust design that maintains precise torch standoff to ensure consistent cut quality and extended shield life in industrial environments.

  • 120930

  • HALANSM®

  • HLN-120930

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button
Previous:
Next:
Technical Specifications
Product Description
Catalogue
Part Number​
120930
Product Type
Shield Cap / Shield (Mechanized)
Compatible Torch​
Hypertherm Powermax 1250 / 1650 (T80M)
Amperage
40 - 80 A
Application
Mechanized / CNC Plasma Cutting
Material
High-Strength Copper Alloy



Premium Shield Cap for Powermax 1250 / 1650 Mechanized Systems

The HALANSM® 120930 Shield Cap is a critical component for maintaining optimal performance in automated plasma cutting applications. Designed as a direct replacement for the Hypertherm OEM part, it is specifically built for the mechanized (T80M) torch series used on CNC cutting tables, ensuring precise alignment and protection of the torch head.


Key Features & Benefits

  • Mechanized Grade Design: Unlike the handheld version, the 120930 features a design optimized for the rigorous demands of automated cutting, ensuring stable arc characteristics and consistent kerf width.

  • Precise Standoff Maintenance: Maintains the exact distance between the torch nozzle and the metal plate, which is crucial for high-definition cutting and preventing accidental torch crashes in CNC applications.

  • Extended Wear Resistance: Constructed from premium copper alloys, this shield cap offers superior thermal conductivity and resistance to spatter buildup, significantly extending its service life.

  • HALANSM Quality Assurance: Manufactured to exact OEM specifications to seamlessly integrate with your existing Hypertherm consumable stack without requiring any modifications.


Installation & Compatibility Guide

  • Handheld vs. Mechanized (CRITICAL): The 120930 is specifically for Mechanized (T80M) torches. The Handheld (T80) torch uses part number 120929. These two parts are NOT interchangeable due to differences in thread patterns and internal seat design.

  • Correct Stack Assembly: For optimal performance with a mechanized torch, assemble the consumables in the following order: Electrode (120926) -> Swirl Ring (120925) -> Nozzle (e.g., 120927) -> Shield Cap (120930) -> Retaining Cap.

  • System Specific: This part is exclusive to the legacy Powermax 1250 / 1650 (T80M) mechanized series and is not compatible with newer Powermax45, 65, 85, 105, or Duramax systems.


Real Shot: Images 1–11 above show the actual HALANSM torch ceramic head, Euro connector pins, cable coil, consumable-installed view and length comparison you will receive.


HALANSM-T80-T80M-plasma-torch-consumables-catalog-diagram

Download the complete product brochure：
