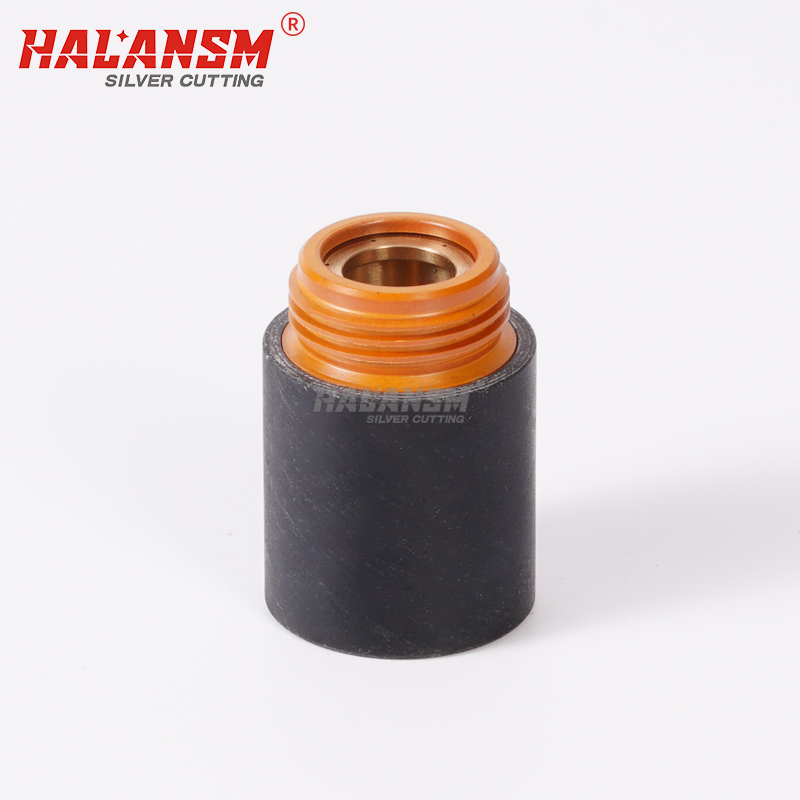

220713 Retaining Cap for Hypertherm Powermax 45 / 45A

SKU:
Availability:
Quantity:
Inquire Add to Basket

PDF Export

The HALANSM® 220713​ is the retaining cap engineered for the Hypertherm Powermax 45 / 45A plasma systems (15-45A range). Located at the extreme tip, it secures the nozzle and shield cap in precise alignment while acting as a critical barrier against molten spatter. This OEM-matched component ensures consistent cut quality and extended service life, offering a reliable and cost-effective alternative for industrial fabrication.

  • 220713

  • HALANSM®

  • HLN-220713

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button
Previous:
Next:
Technical Specifications
Product Description
Catalogue
Part Number​
220713
Product Type
Retaining Cap / Cover
Compatible Torch​
Hypertherm Powermax 45
Powermax 45 XP
Powermax 45A
Amperage
15 - 45 A
Application
Plasma Cutting
Material
High-Strength Polymer Composite



Secure Retention and Molten Spatter Protection for Powermax 45 / 45A

The HALANSM® 220713 Retaining Cap serves as the critical securing component for the Hypertherm Powermax 45 / 45A hand torch consumable stack. Its precisely molded internal geometry provides a tight, stable grip on the swirl ring, nozzle, and shield cap, preventing internal movement and ensuring optimal arc stability during high-speed cutting operations.


Key Points (buyer-facing)

  • Secure Stack Alignment: The 220713 features precisely engineered internal ribs that lock the swirl ring, electrode, nozzle, and shield into perfect concentric alignment, preventing arc deviation and inconsistent cuts.

  • Advanced Polymer Design: Constructed from a high-strength, heat-resistant composite polymer that withstands extreme thermal cycling without warping or cracking, unlike lower quality plastic alternatives.

  • Superior Spatter Resistance: The smooth, tapered outer surface and integrated heat sink design minimize the accumulation of molten metal spatter, ensuring easy cleanup and consistent torch performance.

  • HALANSM Quality Assurance: Manufactured to exact OEM specifications to ensure perfect drop-in compatibility, consistent high performance, and exceptional durability at a competitive value.


Critical Installation & Compatibility Guidelines

  • Correct Consumable Stack: For proper torch operation, the correct assembly order (from the torch body out) is: Electrode (220669) -> Swirl Ring (220670) -> Nozzle (220671/220672) -> Shield Cap (220673/220674/220675) -> Retaining Cap (220713).

  • System Lock: This consumable is part of the 2208xx series for the Powermax 45/45A system. It is NOT mechanically or electrically compatible with the HSD130 45A system (which uses 2205xx series parts). Please verify your torch model before purchasing.


Real Shot: Images 1–11 above show the actual HALANSM torch ceramic head, Euro connector pins, cable coil, consumable-installed view and length comparison you will receive.


replacement-parts-hypertherm-powermax45-45a-consumables-chart

Download the complete product brochure：
