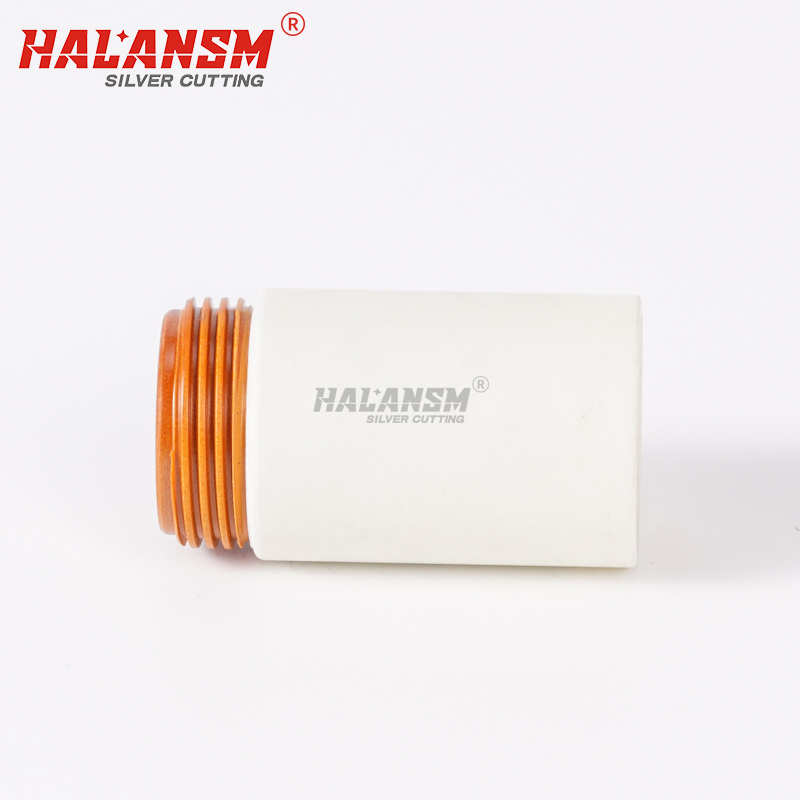

ALANSM 120928 retaining cap for Hypertherm Powermax 1250 T80 plasma torch ALANSM 120928 retaining cap for Hypertherm Powermax 1250 T80 plasma torch

loading

120928 Plasma Cutting Torch Retaining Cap for Hypertherm Powermax 1250

SKU:
Availability:
Quantity:
Inquire Add to Basket

PDF Export

The HALANSM® 120928​ is a precision-engineered retaining cap designed for the Hypertherm Powermax 1250 and T80 plasma cutting systems. Suitable for all amperages (40-80A), this durable component ensures the correct standoff distance between the torch shield and the workpiece, which is critical for achieving clean, dross-free cuts and preventing premature shield failure.

  • 120928

  • HALANSM®

  • HLN-120928

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button
Previous:
Next:
Technical Specifications
Product Description
Catalogue
Part Number​
120928
Product Type
Retaining Cap / Shield Cover
Compatible Torch​
Hypertherm Powermax 1250 / 1650 (T80)
Amperage
40 - 80 A
Application
Handheld Plasma Cutting
Material
High-Strength Heat-Resistant Material



High-Quality Retaining Cap for Powermax 1250 / T80 Plasma Systems

The HALANSM® 120928 Retaining Cap is the essential component that secures your plasma torch consumables in perfect alignment. Designed as a direct replacement for Hypertherm OEM part 120928, it provides a stable platform for the shield and nozzle, ensuring consistent cut quality across various material thicknesses.


Key Features & Benefits

  • Universal Fit (40-80A): Unlike nozzles or electrodes which change with amperage, the 120928 retaining cap is the same for the entire 40-80A shielded hand torch range, simplifying inventory.

  • Optimal Standoff: Maintains the precise distance required between the shield and the metal plate, preventing shield melt-down and ensuring a smooth, clean cut edge.

  • Durable Construction: Built to withstand the extreme temperatures and mechanical stresses of high-definition plasma cutting.

  • Easy Installation: Features a secure thread pattern for quick and easy hand-tightening during torch assembly.


Installation & Compatibility Guide

  • Correct Assembly Order: Always ensure the torch head is assembled in the correct sequence to avoid damage: Electrode -> Swirl Ring -> Nozzle -> Shield Cap (120929) -> Retaining Cap (120928).

  • Shield Compatibility: The 120928 cap is specifically designed for the handheld torch using the 120929 shield. If you are using a mechanized torch (which uses a different shield, typically 120930), this retaining cap will not fit.

  • System Specific: This part is exclusive to the legacy Powermax 1250 / 1650 (T80) series and is not compatible with newer Powermax45, 65, 85, 105, or Duramax systems.


Real Shot: Images 1–11 above show the actual HALANSM torch ceramic head, Euro connector pins, cable coil, consumable-installed view and length comparison you will receive.

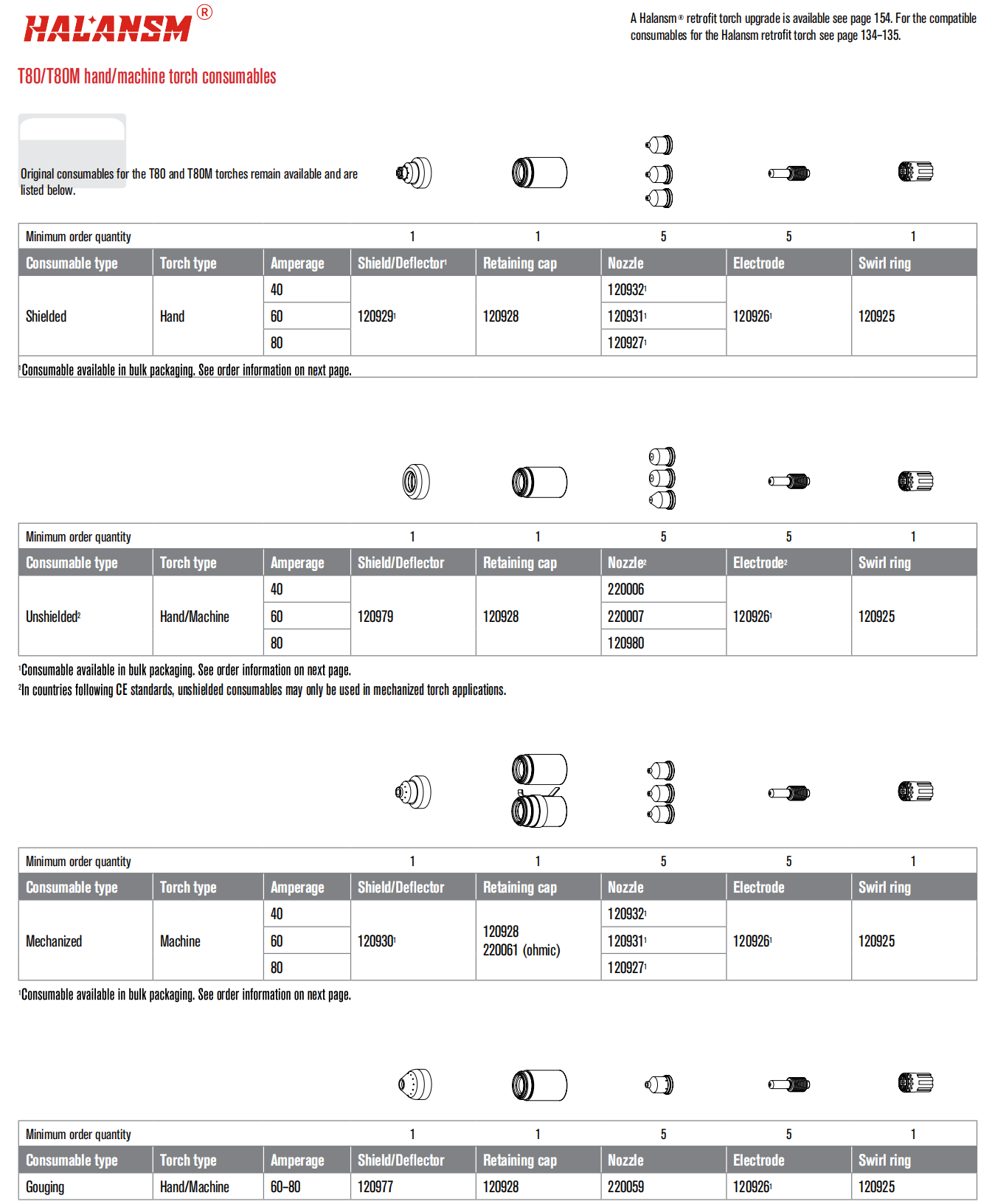

HALANSM-T80-T80M-plasma-torch-consumables-catalog-diagram

Download the complete product brochure：
