The HALANSM® 220047 is a 100-Ampere mechanized shield cup. Serving as a critical protective barrier for the torch consumables, this shield is essential for maintaining cut quality and preventing spatter damage during high-power automated cutting operations on Hypertherm Powermax 1650 and T100 series torches.
220047
HALANSM®
HLN-220047
Shield 220047 / 100A Mechanized Shield Cup for Hypertherm Powermax 1650 & T100 – HALANSM

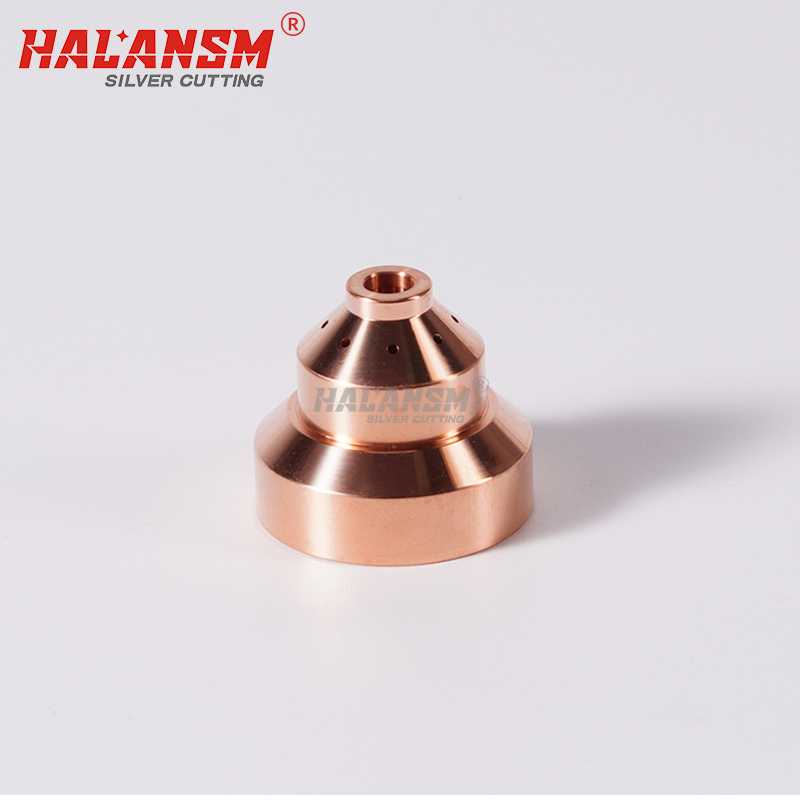

The HALANSM® 220047 is a precision-machined 100-Ampere shield cup designed for heavy-duty mechanized (CNC) plasma cutting applications. Positioned at the base of the consumable stack, this shield cup plays a vital role in directing the plasma arc and shielding the internal components from molten metal spatter and heat damage.
220047 in Powermax 1650 / T100 Mechanized Stack
Position | Part Number | Function |
|---|---|---|
Electrode | 220182 (SilverPlus) | Generates the plasma arc |
Swirl Ring | 220188 | Directs gas flow |
Nozzle | 220047 (Extended) / 220007 (Std) | Shapes the plasma arc |
Shield | 220047 | Protects consumables and focuses arc |
Retaining Cap | 220190 | Secures all components |
Key Compatibility Notes
100A Mechanized Use: The 220047 is specifically rated for 100-Ampere output and is designed for use with extended nozzles on mechanized cutting tables where standoff distance is critical.
System Fit: This shield is fully compatible with Hypertherm Powermax 1650 and the T100/T100M torch series. It is important to ensure that the retaining cap used matches the non-extended length of this shield.
Durability: Constructed from high-purity copper, the HALANSM® 220047 is built to withstand the extreme thermal loads encountered during high-amperage automated cutting.
Real Shot: Images 1–11 above show the actual HALANSM torch ceramic head, Euro connector pins, cable coil, consumable-installed view and length comparison you will receive.
