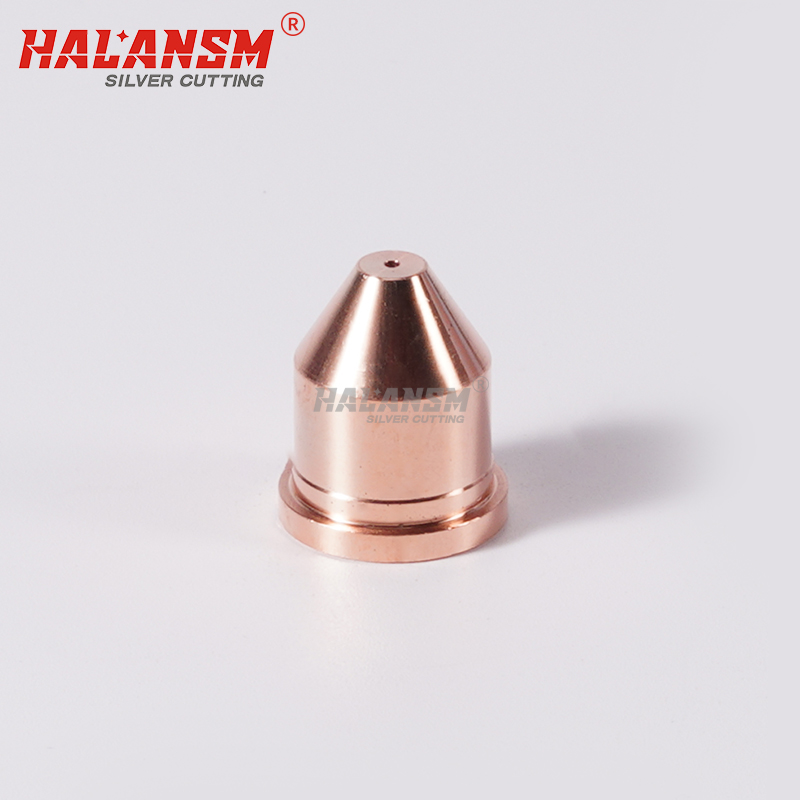

The HALANSM® 220007 is a 60-Ampere extended-length, non-shielded plasma cutting nozzle. Engineered for mechanized (CNC) cutting systems, it provides an extended standoff distance for superior arc control and cut quality on automated cutting tables using Hypertherm Powermax 1000 and 1250 series torches.
220007
HALANSM®
HLN-220007
Extended Nozzle 220007 / 60A Non-Shielded Tip for Hypertherm Powermax 1250 & T60/T80 – HALANSM
The HALANSM® 220007 is an extended-length, non-shielded plasma cutting nozzle rated for 60 Amperes. Unlike standard handheld nozzles, this consumable is specifically designed for mechanized (CNC) cutting applications where maintaining a precise standoff distance between the torch and the material is critical for optimal cut quality and piercing performance.
220007 in Powermax 1250 / T60/T80 Mechanized Stack
Position | Part Number | Function |
|---|---|---|
Electrode | 220181 (Ag) / 220182 | Generates the plasma arc |
Swirl Ring | 220188 / 020608 | Directs gas flow |
Nozzle | 220007 | Extends arc reach for CNC cutting |
Retaining Cap | 120928 / 220190 (Std) | Secures consumables (No Shield) |
Key Compatibility Notes
Mechanized Specific: The 220007 is designed to be used without a separate shield cup. It seats directly against the retaining cap inside the torch head, extending the plasma arc further out for automated cutting tables.
60A Application: This nozzle is specifically calibrated for 60-Ampere output. Using it at higher or lower amperages or with incorrect swirl rings may lead to premature wear or damage.
System Compatibility: Fully compatible with Hypertherm Powermax 1000, Powermax 1250, and the T60/T60M and T80/T80M torch series.
Real Shot: Images 1–11 above show the actual HALANSM torch ceramic head, Euro connector pins, cable coil, consumable-installed view and length comparison you will receive.
