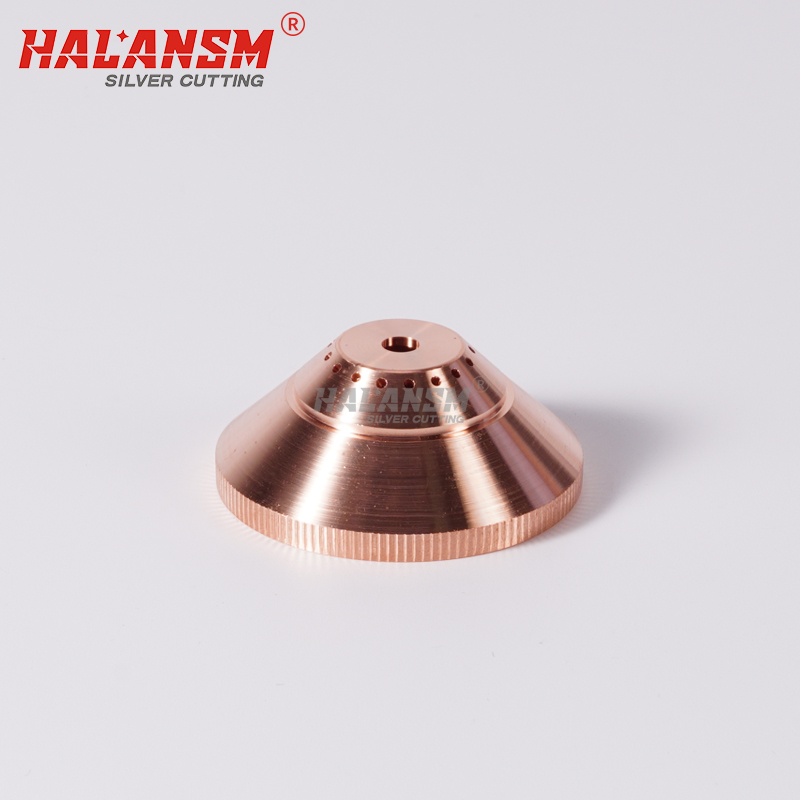

HALANSM Shield 020448 for Hypertherm MAX200 100A machine torch, Air and O₂ cutting HALANSM Shield 020448 for Hypertherm MAX200 100A machine torch, Air and O₂ cutting

loading

020448 Shield for Hypertherm MAX 200 100A Plasma Machine Torch Consumables

SKU:
Availability:
Quantity:
Inquire Add to Basket

PDF Export

The HALANSM 020448​ is the 100A machine shield for Hypertherm MAX200, covering both Air and O₂ cutting on mild/stainless steel at 100A. Threads mate with 120837 copper retaining cap (universal 40/100/200A on MAX200 machine), inner seat aligns swirl + noz + elec. 1208xx/020x MAX200 machine family, not cross-compatible with MAXPRO200 (different thread) or HT2000 HySpeed 200A. Not the same as MAX200 handheld line​ — handheld 40A uses graphite cap 020423 + same 020688 shield number but different cap/shield seat; 020448 is machine only.

  • 020448

  • HALANSM®

  • HLN-020448

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button
Previous:
Next:
Technical Specifications
Product Description
Catalogue
Reference OEM Part No.​
020448
Product Type
Shield (Machine Torch)
Material
High-Strength Copper Alloy
Compatible System​
Hypertherm MAX200 Series
Compatible Amperage​
100 A
Application​
Machine / CNC Cutting
Mild Steel & Stainless (Air / O₂)
Compatible Torch​
Hypertherm MAX200 Machine Torch (100A)



Shield 020448 / 100A Machine Shield for Hypertherm MAX200 – HALANSM

MAX200 machine torch runs three shields by amperage: 40A = 020688 / 100A = 020448 / 200A = 020424. 020448 covers both Air and O₂ at 100A — same shield body, swirl + nozzle split by gas, electrode shared (120547 Hafnium), retaining cap shared (120837 copper, universal 40/100/200A).


020448 in MAX200 100A machine stack (by gas)

Gas

Elec

Swirl

Nozzle

Shield

Cap

Air 100A

120547

020607

020611

020448

120837

O₂ 100A

120547

020617

020616

020448

120837


Key Points (buyer-facing)

  • Same shield for Air and O₂: At 100A, shield does not split by gas — swap swirl + nozzle only (Air: 020607 + 020611; O₂: 020617 + 020616). Shield and cap stay put. Stores carry one 020448 SKU + one 120837 cap SKU to cover 100A dual-gas.

  • Machine vs handheld do not intermix: 020448 is a machine shield, copper, mates with 120837 copper cap. MAX200 handheld (40A only) runs graphite cap 020423 + 020688 shield — different thread, seat, and material. Forcing machine/handheld parts together = gas leak + arc wander.

  • 120837 cap is amp-shared across machine line: MAX200 machine uses one copper cap (120837) for 40/100/200A — shields swap by amp, cap does not. Fewer SKUs in stores than Powermax families where caps often split by amperage.

  • 1208xx/020x MAX200 machine ≠ MAXPRO200 ≠ HT2000 HySpeed 200A: Three different 200A-class hosts, three different cap threads and swirl seats. 020448 seats only on MAX200 machine barrel; MAXPRO200 shield is 2200xx-line, HT2000 HySpeed is another family entirely.

NOTE: MAX200 200A machine shield = 020424 (next tier, Air/O₂/underwater); gouging @200A switches to 020485 shield + 020615 nozzle; bevel @200A O₂ switches to 120260 shield + 120259 nozzle + 120258 elec + 120833 swirl — all use the same 120837 cap. MAX200 handheld 40A = separate stack (020423 graphite cap + 020688 shield + 020689 nozzle + 120547 elec + 020613 swirl), do not cross with machine stack.


Real Shot: Images 1–11 above show the actual HALANSM torch ceramic head, Euro connector pins, cable coil, consumable-installed view and length comparison you will receive.

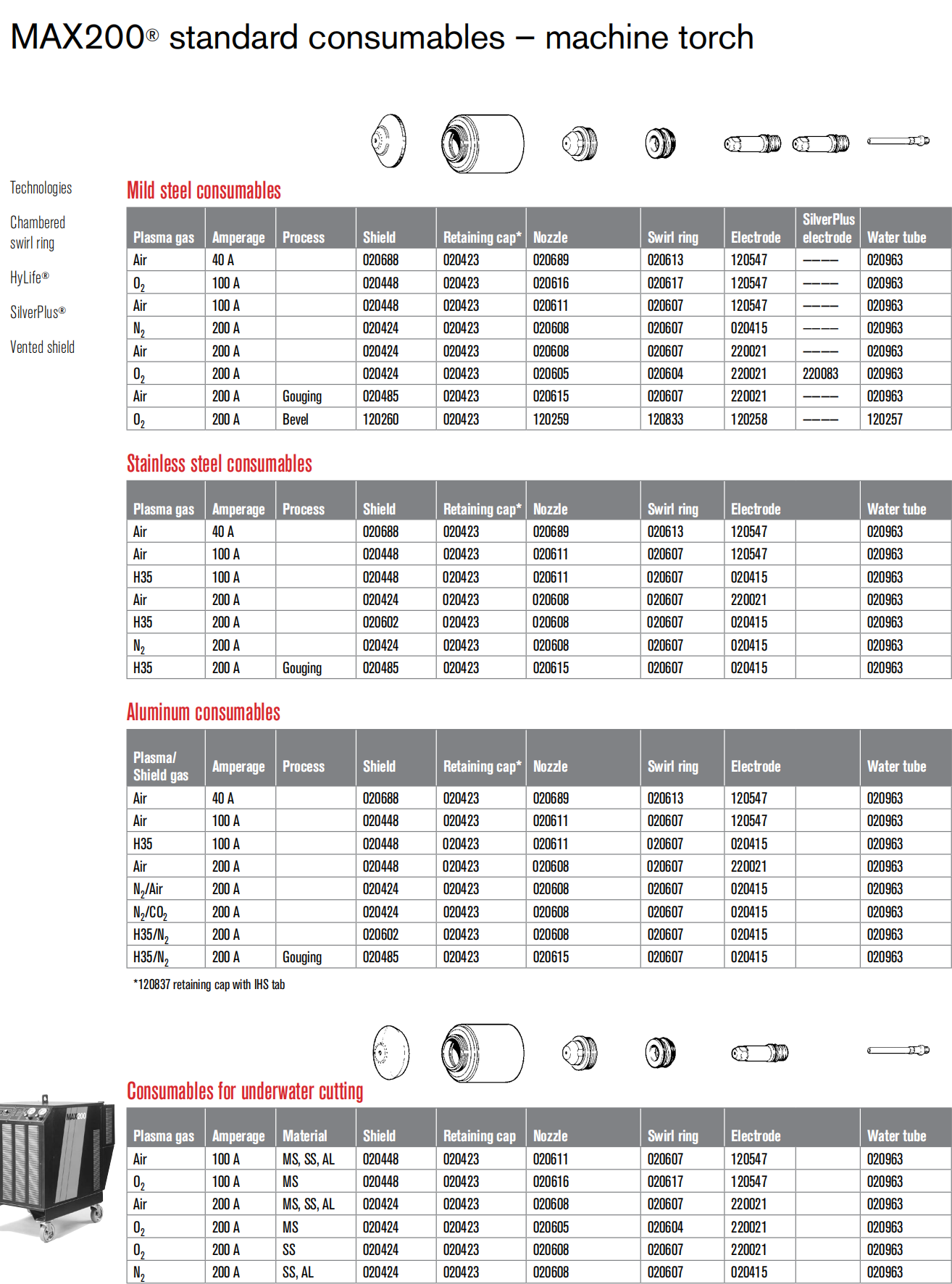

hypertherm-max200-standard-consumables-machine-torch-catalog
