130A Optimized: Specifically designed for 130A cutting applications on Hypertherm HPR130XD, HPR260XD, and HPR400XD plasma torches .
Precision Machining: Features a micro-laser drilled orifice for a stable, focused plasma arc, resulting in superior cut quality and minimal dross buildup.
Secure Seal: Integrated high-temperature O-ring groove ensures a leak-proof connection, preventing shield gas bypass and ensuring proper cooling.
Premium Material: Constructed from high-purity copper alloy for excellent thermal conductivity and extended service life.
Easy Installation: Precision-machined exterior threads allow for quick and easy drop-in replacement without special tools.
220181
HALANSM®
HLN-220181

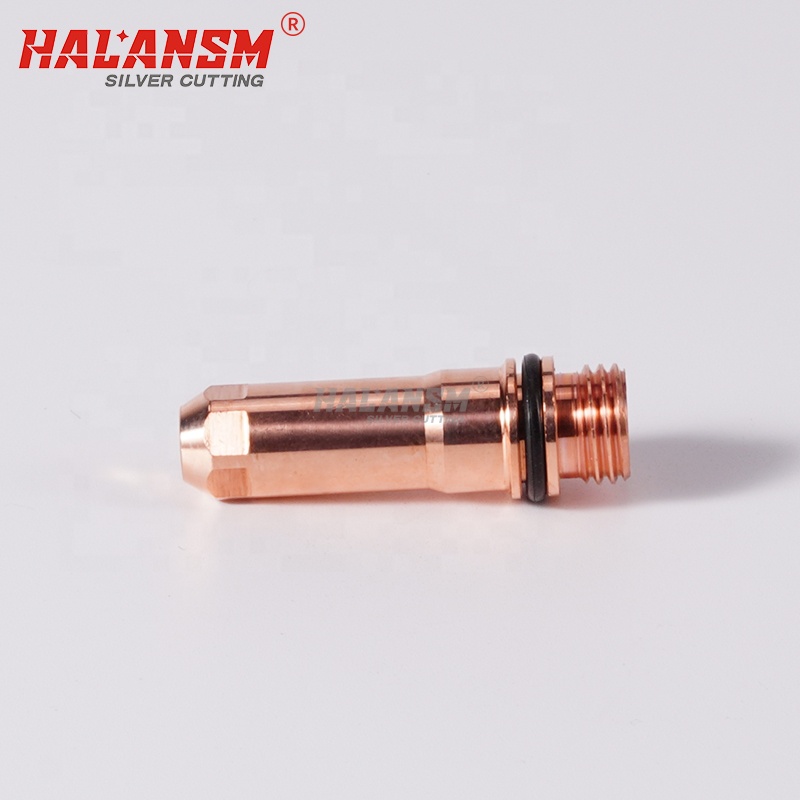

Electrode 220181 for HPRXD Plasma Torch – HALANSM®
The HALANSM® 220181 Electrode is a critical component of your Hypertherm HPRXD plasma cutting torch consumable stack. Specifically engineered as a direct replacement for OEM part number 220181, this electrode is calibrated for 130A operations on HPR130XD, HPR260XD, and HPR400XD systems .
As the power supply delivers high current to the torch, the electrode is responsible for ionizing the plasma gas and initiating the plasma arc. The HALANSM 220181 excels in this role due to its exceptional craftsmanship and material quality.
The electrode features a precision-machined orifice that has been micro-laser drilled to exacting tolerances. This precision ensures that the plasma arc remains stable and focused during the cutting process, which is essential for producing clean edges and minimizing the amount of dross (re-solidified molten metal) that must be ground off after the cut. An incorrect or worn electrode orifice is the most common cause of poor cut quality, such as excessive dross or inability to pierce thick material.
Furthermore, the HALANSM 220181 incorporates an integrated high-temperature O-ring seal. This seal is crucial for maintaining the correct standoff distance between the electrode and the swirl ring, and it ensures that the shield gas flows uniformly around the outside of the plasma plume. This protective gas blanket shields the cut area from atmospheric contamination and cools the electrode tip to prevent premature melting or erosion.
Using worn or damaged electrodes leads to a rapid decline in cut quality, increased dross production, and potential damage to the torch itself. By choosing HALANSM®, you invest in a component designed for reliability and peak performance, reducing your downtime and lowering your overall operating costs.
Don't let a cheap, ill-fitting electrode compromise your cutting performance. Upgrade to HALANSM® 220181 Electrode for consistent, high-quality results.
Disclaimer: HALANSM® is an independent brand offering compatible aftermarket spare parts. This product is not manufactured, endorsed, or affiliated with Hypertherm, Inc.
Real Shot: Images 1–11 above show the actual HALANSM torch ceramic head, Euro connector pins, cable coil, consumable-installed view and length comparison you will receive.
