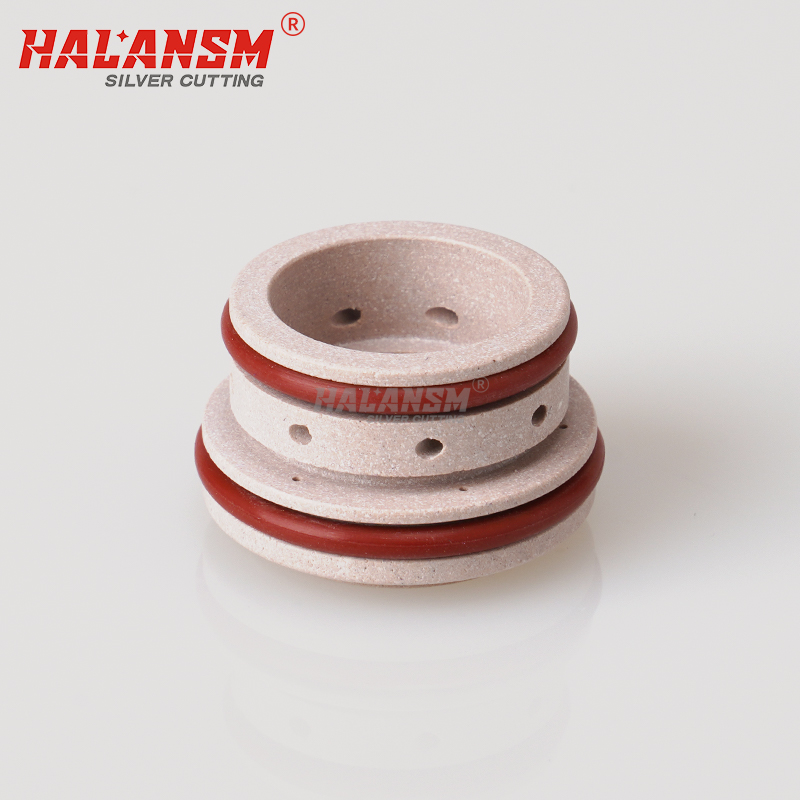

HALANSM 220353 Swirl Ring for Hypertherm HPRXD 200A Plasma Torch, made from imported volcanic ash material with high-temperature O-rings. HALANSM 220353 Swirl Ring for Hypertherm HPRXD 200A Plasma Torch, made from imported volcanic ash material with high-temperature O-rings.

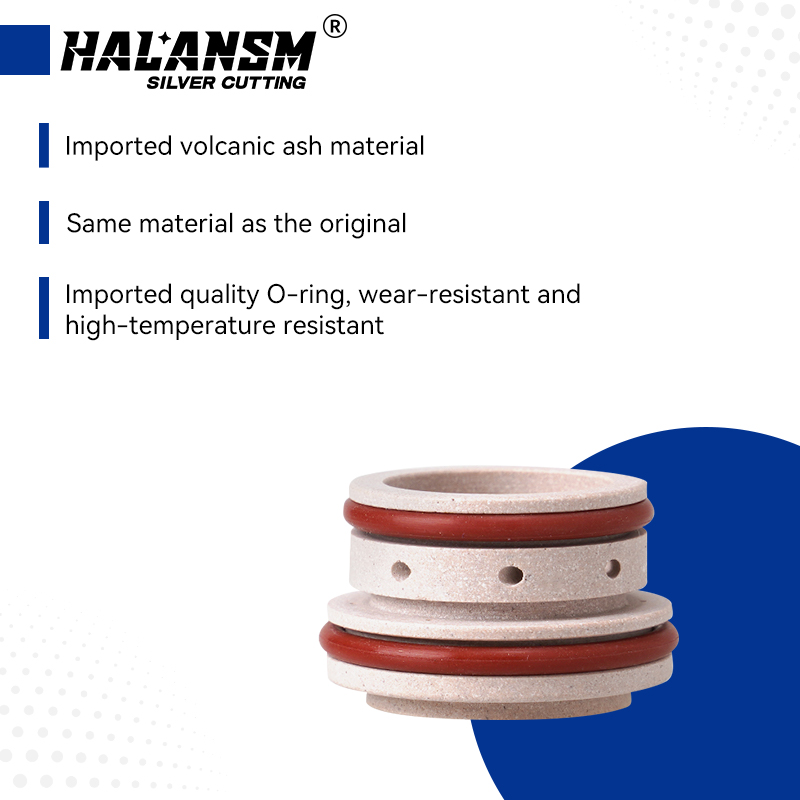

Close-up detail of HALANSM 220353 Swirl Ring showing premium volcanic ash ceramic construction and precision-machined wear-resistant O-rings. Close-up detail of HALANSM 220353 Swirl Ring showing premium volcanic ash ceramic construction and precision-machined wear-resistant O-rings.

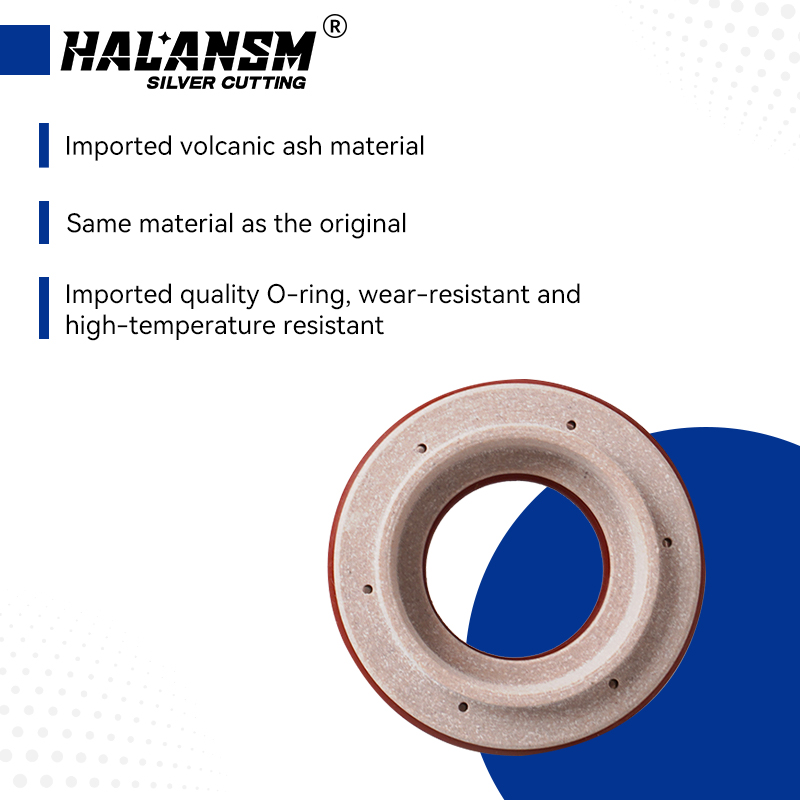

Precision-engineered internal gas vanes of HALANSM 220353 Swirl Ring for optimized plasma gas swirl and arc stability during cutting. Precision-engineered internal gas vanes of HALANSM 220353 Swirl Ring for optimized plasma gas swirl and arc stability during cutting.

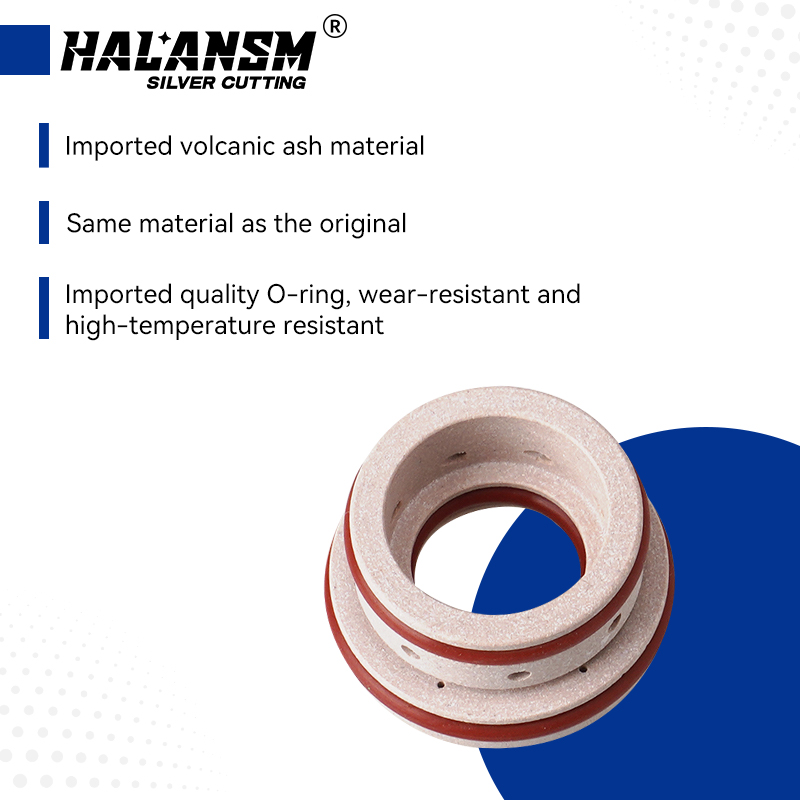

HALANSM 220353 Swirl Ring correctly assembled in the Hypertherm HPRXD 200A plasma torch consumable stack for superior cut quality. HALANSM 220353 Swirl Ring correctly assembled in the Hypertherm HPRXD 200A plasma torch consumable stack for superior cut quality.

loading

220353 HALANSM Swirl Ring for Hypertherm HPR 130XD 260XD 400XD 200A Plasma Cutting Torch

SKU:
Availability:
Quantity:
Inquire Add to Basket

PDF Export

  • Perfect Compatibility:​ Specially designed for 200A bevel and straight cutting on Hypertherm HPR130XD, HPR260XD, and HPR400XD plasma torches.

  • Superior Gas Distribution:​ Utilizes precision-machined internal vanes to create a stable, rotating plasma gas flow for superior arc stability.

  • High-Temperature Resistance:​ Constructed from imported volcanic ash material combined with premium O-rings, ensuring excellent wear-resistance and high-temperature performance.

  • Enhanced Cut Quality:​ Promotes efficient arc constriction, resulting in cleaner cuts, faster piercing, and reduced dross formation.

  • Easy Installation:​ Precision-machined external threads ensure a secure, leak-proof fit with standard OEM-style consumable stacks.

  • 220353

  • HALANSM®

  • HLN-220353

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button
Previous:
Next:
Technical Specifications
Product Description
Catalogue
Part Number
220353
Product Type
Swirl Ring (Plasma Cutting)
Compatible Series
HPRXD Series Plasma Cutting Systems
Supported Models
HPR130XD
HPR260XD
HPR400XD
Supported Currents
200A (Bevel and Straight Cut)
Material
Imported Volcanic Ash Ceramic Composite
Application
Industrial plasma cutting of mild steel and other conductive materials
Configuration
Precision-machined with internal gas vanes and external threading
Seal
High-Temperature Resistant O-Ring



Swirl Ring 220353 for HPRXD Plasma Torch – HALANSM®

The HALANSM® 220353 Swirl Ring is a critical component in the Hypertherm HPRXD plasma cutting torch consumable stack, specifically engineered for 200A operations. As a direct replacement for OEM part number 220353, this swirl ring is essential for maintaining optimal plasma arc characteristics during both straight and bevel cutting applications.


Optimized Gas Flow for Superior Arc Stability

Positioned between the electrode and the nozzle, the swirl ring's primary function is to distribute the shield gas evenly around the plasma column. The HALANSM 220353 features precision-machined internal vanes that impart a rotational motion to the gas flow. This "swirling" action stabilizes the plasma arc, focuses it into a tight, constricted column, and prevents arc wandering. The result is a more efficient cut with improved edge quality and reduced dross.


Advanced Material Composition

To withstand the extreme temperatures and abrasive conditions inside the plasma torch, the HALANSM 220353 is constructed from high-grade imported volcanic ash material. This ceramic composite offers exceptional thermal shock resistance and structural integrity. Additionally, the swirl ring incorporates imported quality O-rings that are specifically designed to be wear-resistant and high-temperature resistant, ensuring a perfect seal and preventing coolant leakage.

Don't let a worn or cracked swirl ring compromise your cutting performance. Upgrade to the HALANSM® 220353 Swirl Ring for consistent, high-quality results.


Disclaimer: HALANSM® is an independent brand offering compatible aftermarket spare parts. This product is not manufactured, endorsed, or affiliated with Hypertherm, Inc.
