The HALANSM® 220637 is the shield cap for the Hypertherm HPRXD plasma torch family — HPR130XD, HPR260XD, HPR400XD, HPR800XD. High-purity copper alloy body, precision-machined external threads with knurled grip collar . As the outermost cap of the torch, it screws over the nozzle retaining cap, locking the entire consumable stack (electrode + swirl ring + nozzle + retaining cap + shield) into perfect alignment . 220637 is the universal high-amperage shield cap: it covers 200A, 260A, 400A standard mild steel cutting , and additionally covers all bevel cutting applications from 80A through 400A . In the HPRXD 200A/260A/400A stacks it pairs with the corresponding shield (220761 / 220764 / 220636), nozzle retaining cap (220757 / 220760 / 220635), nozzle (220354 / 220439 / 220632), swirl ring (220353 / 220436 / 220631), electrode (220352 / 220435 / 220629), and water tube (220340 / 220340 / 220571) . HALANSM 220637 is OEM-profile matched to Hypertherm 220637 geometry, lower cost-per-piece than OEM. Compatible aftermarket replacement, not Hypertherm OEM.
220637
HALANSM®
HLN-220637
Shield Cap 220637 / Outer Shield Cap for HPRXD Series – HALANSM®

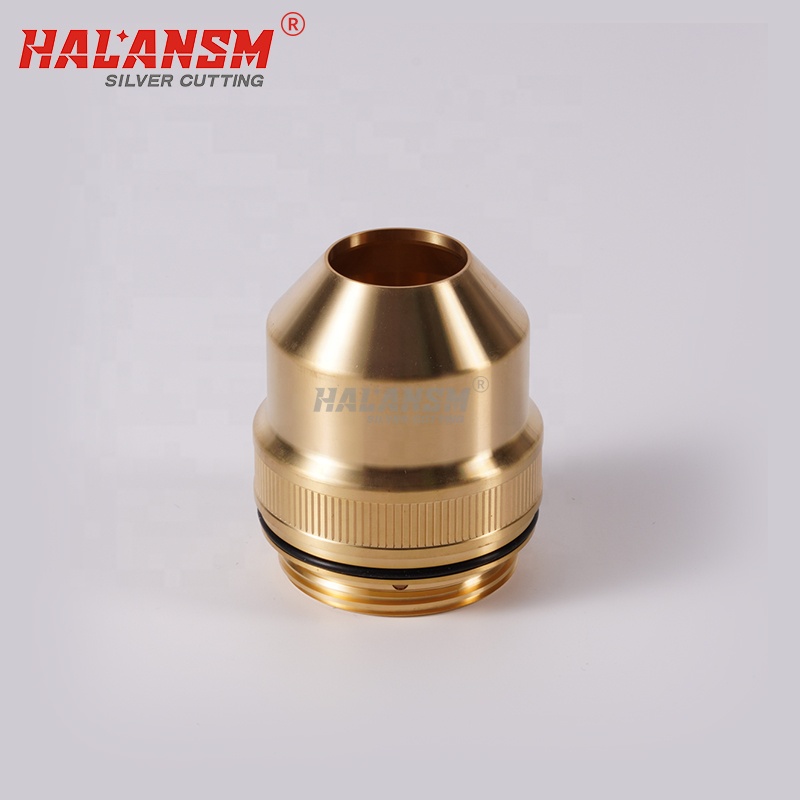

220637 is Hypertherm's shield cap for the high-amperage HPRXD plasma torch family. High-purity copper alloy body, precision-machined external threads with knurled grip collar . As the outermost component of the torch, it screws over the nozzle retaining cap, locking the entire consumable stack into perfect alignment and providing the final layer of protection against molten spatter and extreme heat . 220637 is the universal high-amperage shield cap: it covers 200A, 260A, 400A standard mild steel cutting , and uniquely, it is also the shield cap for all bevel cutting applications from 80A through 400A — making it one of the most versatile single consumables in the entire HPRXD platform .
220637 Across the HPRXD High-Amperage & Bevel Stacks
Application | Shield Cap | Shield | Ret. Cap | Nozzle | Swirl | Electrode | Water Tube |
|---|---|---|---|---|---|---|---|
200A MS | 220637 | 220761 | 220757 | 220354 | 220353 | 220352 | 220340 |
260A MS | 220637 | 220764 | 220760 | 220439 | 220436 | 220435 | 220340 |
400A MS | 220637 | 220636 | 220635 | 220632 | 220631 | 220629 | 220571 |
80A Bevel | 220637 | 220742 | 220845 | 220806 | 220179 | 220802 | 220700 |
130A Bevel | 220637 | 220742 | 220740 | 220646 | 220179 | 220649 | 220700 |
200A Bevel | 220637 | 220658 | 220845 | 220659 | 220353 | 220662 | 220700 |
260A Bevel | 220637 | 220741/220897 | 220740/220896 | 220542/220898 | 220436 | 220541/220899 | 220571 |
400A Bevel | 220637 | 220636 | 220635 | 220632 | 220631 | 220629 | 220571 |
*Data sourced from Hypertherm HPR400XD & HPR260XD official consumables tables *
Key Points (buyer-facing)
Universal high-amp & bevel shield cap: 220637 covers 200A, 260A, 400A standard cutting and all bevel cutting from 80A to 400A . One part number spans the entire high-amperage and bevel range of HPR130XD/HPR260XD/HPR400XD/HPR800XD.
NOT for 30A/50A/80A/130A standard straight cutting: Those amperages use 220747 as the shield cap . 220637 is strictly the 200A+ standard / all-amperage bevel outer cap.
Outer protective lock: 220637 screws over the nozzle retaining cap (220757/220760/220635/220845), mechanically locking the entire consumable stack — electrode, swirl ring, nozzle, retaining cap, and shield — into perfect axial alignment . A loose or damaged shield cap causes shield lift, arc instability, and rapid consumable failure.
Precision-machined threads & knurled grip: The HALANSM 220637 replicates Hypertherm's exact external thread profile and knurled grip collar, allowing for hand-tight installation and removal without tools, while guaranteeing a leak-proof seal for the coolant path .
Change as a set: Per Hypertherm's guidance, HPR consumables interact synergistically — replace shield cap + shield + retaining cap + nozzle + swirl + electrode together for peak cut quality and life. A worn 220637 shield cap will accelerate wear on every component beneath it.
NOTE: 220637 = Shield Cap for 200A/260A/400A standard + 80A-400A bevel. Fits HPR130XD/HPR260XD/HPR400XD/HPR800XD. 30-130A standard shield cap = 220747. HALANSM 220637 is an aftermarket compatible replacement, not Hypertherm OEM.
