Precision Bevel Design: Specifically engineered for 80A bevel cutting applications on the HPR 260XD platform, ensuring optimal arc deflection and part accuracy.
Premium Material: Constructed from high-grade chrome zirconium copper for exceptional thermal conductivity and resistance to heat sink deformation.
Extended Service Life: Advanced surface finishing and precise machining reduce spatter adhesion and wear, maximizing your uptime.
Drop-In Compatibility: Fully interchangeable with OEM part 220742, guaranteeing a seamless fit and secure seal within the torch head.
Cost-Effective Performance: HALANSM® offers OEM-level quality at a competitive price, reducing your production costs without compromising cut quality.
220742
HALANSM®
HLN-220742
Bevel Shield 220742 for HPR Plasma Torch – HALANSM®

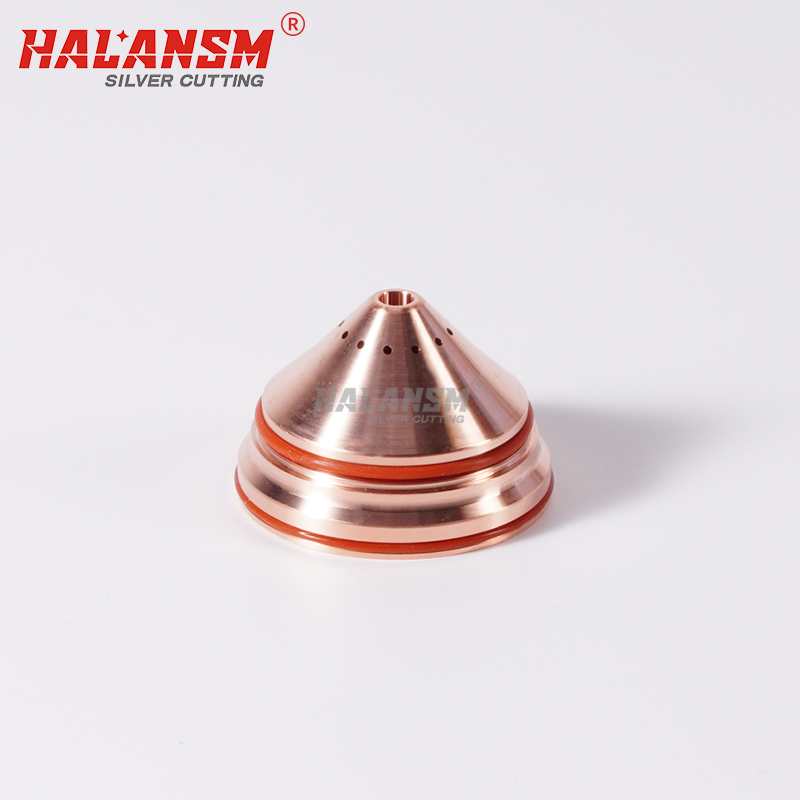

The HALANSM® 220742 Bevel Shield is a critical component specifically designed for operators performing bevel cuts using Hypertherm HPR 260XD, HPR400XD, or HPR130XD plasma systems at 80 Amps. Unlike standard straight-cut shields, this precision-engineered part features a unique geometry that allows the plasma arc to deflect at an angle, enabling bevel cuts for edge preparation or welding.
Engineered for Precision Bevel Cutting
Bevel cutting generates complex thermal stresses and alters gas flow dynamics. The HALANSM 220742 shield is crafted to withstand these specific conditions. Its precisely angled face and advanced internal gas flow paths ensure that the plasma arc remains stable and focused during the angled piercing and cutting process, resulting in clean, accurate bevel profiles.
Key Features:
Chrome Zirconium Copper Construction: Selected for its superior hardness and thermal conductivity, the C18150 material prevents the shield from softening or deforming under the intense heat of repeated bevel operations.
Optimized Arc Deflection: The specific contour of the shield works in tandem with the bevel retaining cap and nozzle to guide the plasma stream accurately, minimizing edge deviation and dross on the beveled surface.
Advanced Sealing Technology: Features a precision-machined O-ring groove that ensures a leak-proof seal, maintaining proper coolant flow and gas pressure critical for high-definition bevel cutting.
Rugged Durability: CNC-machined to exacting tolerances to resist warping and ensure a perfect fit, reducing the risk of double-arcing and damage to the torch body.
Installation Note:
For optimal bevel cutting performance and safety, Hypertherm recommends replacing the bevel shield, retaining cap, nozzle, swirl ring, and electrode as a complete interchangeable set. Mixing old and new components can lead to arc instability, poor cut quality, and accelerated wear on expensive parts.
NOTE: 220742 = 80A Bevel Shield. Primary fit: HPR260XD / HPR400XD / HPR130XD. HALANSM 220742 is an aftermarket compatible replacement, not Hypertherm OEM.
220742 in the HPR 80A Bevel Consumable Stack
Pos | Part | Ref |
|---|---|---|
Electrode | 220802 (80A Bevel) | 220802 |
Swirl Ring | 220179 (Standard HPR) | 220179 |
Nozzle | 220806 (80A Bevel) | 220806 |
Retaining Cap | 220845 (80A Bevel) | 220845 |
Shield | 220742 (80A Bevel) | 220742 |
Shield Cap | 220637 (Standard HPR) | 220637 |
Water Tube | 220340 (30-260A Standard) | 220340 |
Disclaimer: HALANSM® is an independent brand offering compatible aftermarket spare parts. This product is not manufactured, endorsed, or affiliated with Hypertherm, Inc.
