Precision Bevel Performance: Specifically engineered for 80A bevel cutting applications, ensuring stable arc deflection and precise angular cuts.
Extended Service Life: Utilizes advanced SilverPlus technology with a hafnium insert and silver matrix for superior heat dissipation and durability.
Drop-In OEM Fit: Manufactured to exact specifications, providing a perfect replacement for OEM part 220802 without requiring any modifications.
Premium Material: Constructed from high-grade copper alloy with a SilverPlus insert for consistent performance and reduced torch downtime.
Cost-Effective Solution: HALANSM offers premium aftermarket quality to reduce operating costs while maintaining high-definition cut quality.
220802
HALANSM®
HLN-220802

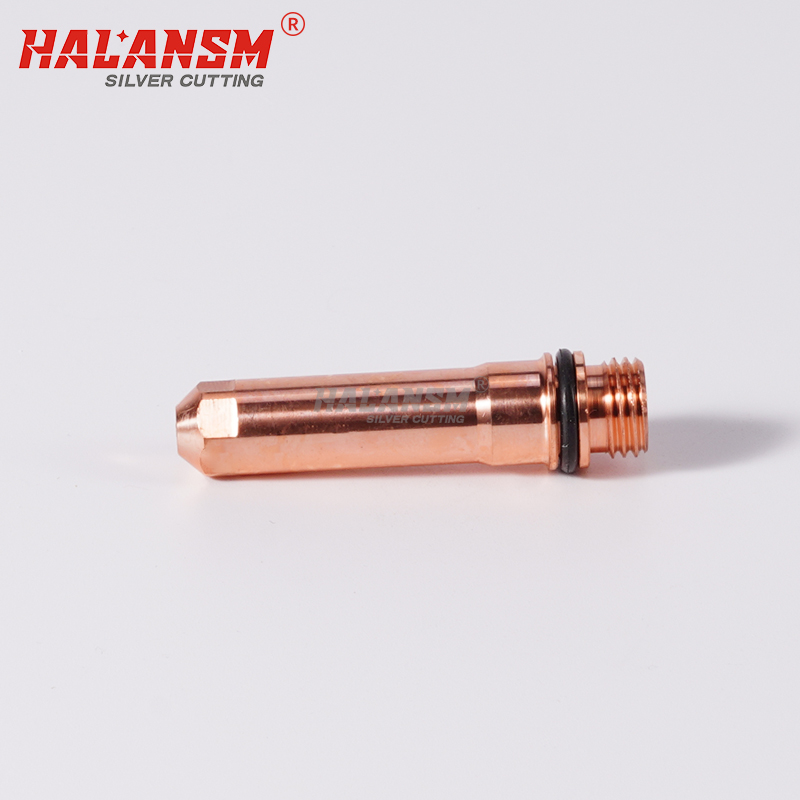

Bevel Electrode 220802 for HPR Plasma Torch – HALANSM®
The HALANSM® 220802 Bevel Electrode is the heart of your plasma cutting system when performing precision bevel cuts. As the primary source of the plasma arc, this high-performance electrode is specifically designed to handle the complex thermal and electrical demands of 80A bevel cutting on the Hypertherm HPR260XD and HPR400XD platforms.
Unleashing the Power of SilverPlus Technology
At the core of the HALANSM 220802 electrode is our advanced SilverPlus insert technology. Unlike standard copper electrodes, the SilverPlus design utilizes a hafnium contact face embedded within a silver matrix. This innovative composition provides exceptional thermal conductivity and a stronger bonding interface, allowing the electrode to run cooler and withstand higher amperages. The result is a drastic increase in consumable life, often doubling the lifespan compared to conventional copper electrodes and significantly reducing your production downtime .
Key Features:
Optimized for Bevel Cuts: The precise geometry and internal construction of the 220802 electrode are tailored to work seamlessly with the bevel shield (220742) and bevel retaining cap (220845). This synergy ensures the plasma arc deflects accurately at the desired angle, producing clean, dross-free bevel edges essential for edge preparation and welding .
Superior Erosion Resistance: The SilverPlus hafnium insert is engineered to burn deeper and resist erosion more effectively than standard materials. This maintains consistent arc characteristics throughout the life of the electrode, ensuring uniform cut quality from the first pierce to the last.
Robust Copper Alloy Body: The main body is crafted from premium chrome zirconium copper, providing the necessary structural integrity to handle the intense mechanical stresses and heat cycling of industrial plasma cutting.
Precision Manufacturing: CNC-machined to micron-level tolerances to ensure perfect concentricity and a secure fit within the torch head, preventing arc wandering and minimizing the risk of double-arcing.
Installation Note:
For optimal bevel cutting performance and safety, Hypertherm recommends replacing the bevel electrode, swirl ring, nozzle, shield, and retaining cap as a complete interchangeable set. Mixing old and new components can lead to arc instability, poor cut quality, and accelerated wear on expensive parts .
NOTE: 220802 = 80A Bevel Electrode. Primary fit: HPR260XD / HPR400XD / HPR130XD. HALANSM 220802 is an aftermarket compatible replacement, not Hypertherm OEM.
220802 in the HPR 80A Bevel Consumable Stack
Pos | Part | Ref |
|---|---|---|
Electrode | 220802 (80A Bevel) | 220802 |
Swirl Ring | 220179 (Standard HPR) | 220179 |
Nozzle | 220806 (80A Bevel) | 220806 |
Retaining Cap | 220845 (80A Bevel) | 220845 |
Shield | 220742 (80A Bevel) | 220742 |
Shield Cap | 220637 (Standard HPR) | 220637 |
Water Tube | 220700 (Bevel Specific) | 220700 |
Disclaimer: HALANSM® is an independent brand offering compatible aftermarket spare parts. This product is not manufactured, endorsed, or affiliated with Hypertherm, Inc.
Real Shot: Images 1–11 above show the actual HALANSM torch ceramic head, Euro connector pins, cable coil, consumable-installed view and length comparison you will receive.
