220658 Bevel Shield Compatible for Hypertherm HPR 130XD 260XD 400XD 200A Mild Steel Plasma Cutting Torch

Bevel Shield 220658 / 200A Bevel Shield for HPRXD Series – HALANSM®

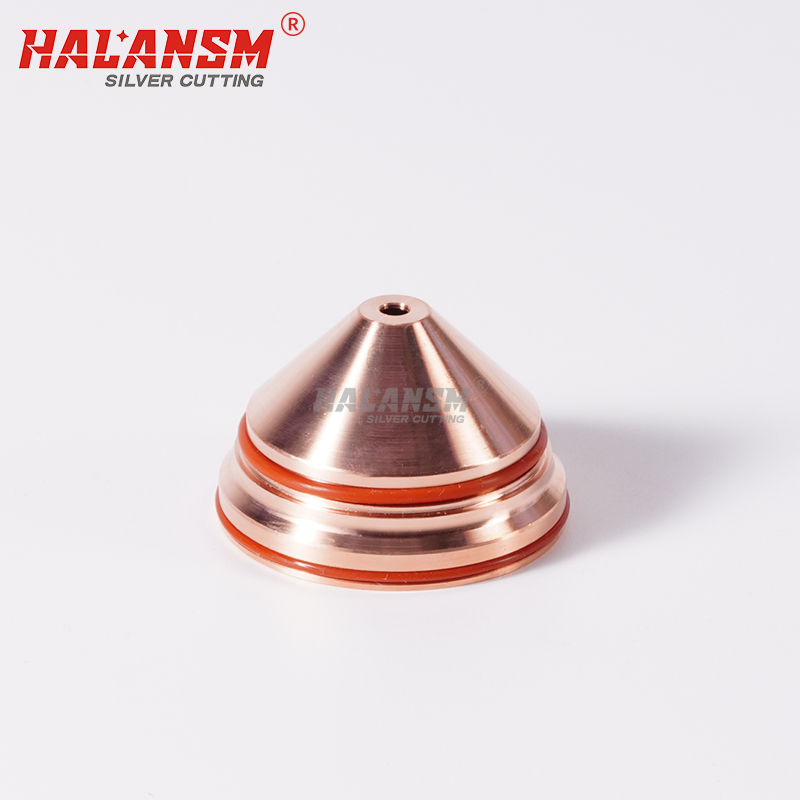

220658 is Hypertherm's 200A bevel shield for the HPRXD plasma torch family. High-purity copper body , precision-machined to sit in the mid-stack position between the nozzle retaining cap (220845) and the shield cap (220637) in the bevel torch configuration . Its primary function is protective: it takes the brunt of the sparks and fallout from the angled cutting process so that wear to other parts — especially the precision bevel nozzle (220659) and bevel electrode (220662) — is minimized . This sacrificial design is what makes the shield a consumable: it is engineered to absorb the damage that would otherwise destroy far more expensive components deeper in the torch. During bevel cutting, the plasma arc is deflected at an angle, which fundamentally alters the thermal and spatter dynamics — the 220658's geometry is specifically engineered to manage these forces, maintaining proper secondary shielding gas flow for stable arc performance and clean bevel edges .

220658 in the HPRXD 200A Bevel Stack

Key Points (buyer-facing)

• 200A BEVEL shield — NOT straight-cut: 220658 is strictly the 200A bevel shield for HPR130XD/HPR260XD/HPR400XD . For 200A straight cutting on HPRXD, the correct shield is 220761; on legacy HPR130/HPR260, the 200A straight shield is 220356 . Using 220658 for straight cutting — or 220761/220356 for 200A bevel — will cause torch malfunction and premature consumable failure.

• Must be used as a complete set: Per Thermacut/AMMC engineering guidance, shield (220658) + shield cap (220637) + inner retaining cap (220845) must be replaced together as a complete interchangeable set . The three components are geometrically interdependent — mixing a worn component with new ones will degrade cut quality and shorten the life of all three.

• Copper construction: The HALANSM 220658 is machined from high-purity copper (同行 HALANSM®weld 确认材质为 Copper ), matching Hypertherm's OEM specification. The O-ring groove is precision-cut to guarantee a leak-proof seal with the retaining cap 220845, ensuring proper coolant flow from the bevel-specific water tube 220700 .

• 200A bevel-only: 220658 is rated 200A bevel. The bevel shield for other amperages: 80A bevel = 220742, 130A bevel = 220742, 260A bevel (HPR130/260/400XD) = 220741, 260A bevel (HPR800XD) = 220897 .

• Change as a set: Per Hypertherm's guidance, HPR consumables interact synergistically — replace electrode + swirl + nozzle + retaining cap + shield + shield cap together for peak cut quality and life . A worn 220658 shield will accelerate wear on the expensive 220659 nozzle and 220662 electrode beneath it.

NOTE: 220658 = 200A BEVEL shield. Primary fit: HPR130XD/HPR260XD/HPR400XD. 200A straight shield = 220761 (HPRXD) / 220356 (HPR130/HPR260). Must be used as a complete set with 220845 retaining cap and 220637 shield cap. HALANSM 220658 is an aftermarket compatible replacement, not Hypertherm OEM.

Disclaimer: HALANSM® is an independent brand offering compatible aftermarket spare parts. This product is not manufactured, endorsed, or affiliated with Hypertherm, Inc.
