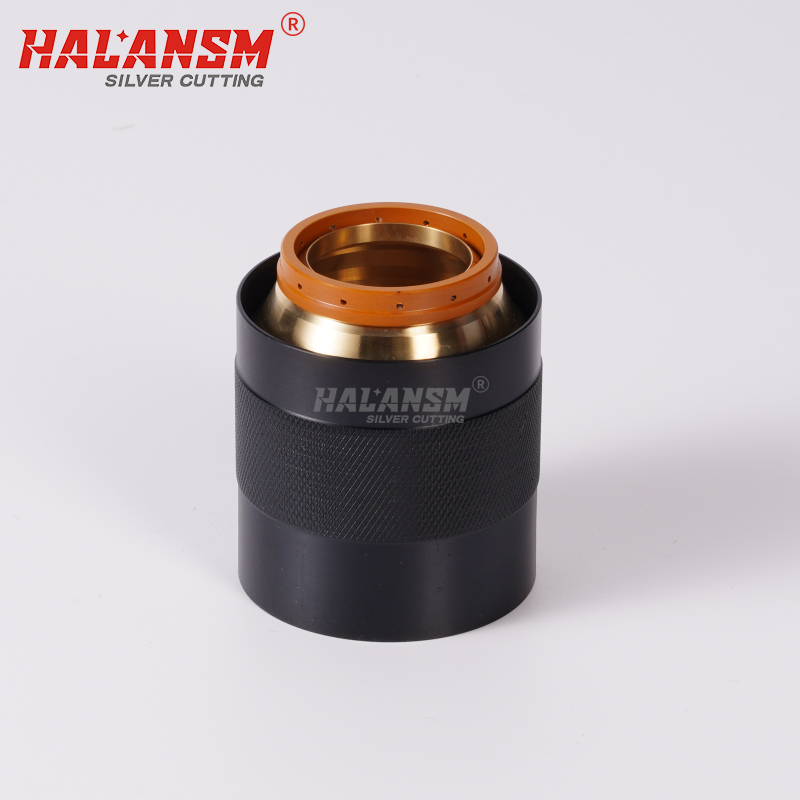

The HALANSM® 220740 is the bevel nozzle retaining cap for the Hypertherm HPRXD plasma torch family — HPR130XD, HPR260XD, HPR400XD . High-purity copper alloy body, precision-machined internal seating shoulder and external threads with knurled grip collar . As the critical inner locking component of the bevel torch, it screws over the bevel nozzle (220646 @130A / 220542 @260A), locking the entire inner consumable stack — electrode + swirl ring + nozzle — into perfect axial alignment, while simultaneously positioning the bevel shield (220742 @130A / 220741 @260A) and providing the sealing surface for the shield cap (220637) . 220740 is the dual-amperage bevel retaining cap — serving both 130A bevel (paired with 220646 nozzle + 220649 electrode + 220179 swirl + 220742 shield) and 260A bevel (paired with 220542 nozzle + 220541 electrode + 220436 swirl + 220741 shield) . Note: for the HPR800XD 260A bevel configuration, Hypertherm specifies 220896 as the retaining cap (paired with 220898 nozzle + 220899 electrode + 220897 shield) — 220740 is the HPR130XD/HPR260XD/HPR400XD 260A bevel cap . HALANSM 220740 is OEM-profile matched to Hypertherm 220740 geometry, lower cost-per-piece than OEM.
220740
HALANSM®
HLN-220740
Bevel Nozzle Retaining Cap 220740 / Dual-Amperage Bevel Locking Component for HPRXD Series – HALANSM®
220740 is Hypertherm's bevel nozzle retaining cap — the dual-amperage bevel locking component for the HPRXD plasma torch family . High-purity copper alloy body, precision-machined internal seating shoulder and external threads with knurled grip collar . As the critical inner locking component of the bevel torch, the 220740 performs three vital functions simultaneously:
Mechanical Lock: Screws over the bevel nozzle (220646 @130A / 220542 @260A), locking the entire inner consumable stack — electrode + swirl ring + nozzle — into perfect axial alignment .
Shield Positioning: Seats and positions the bevel shield (220742 @130A / 220741 @260A) in the correct standoff geometry for angled cutting .
Coolant Seal: Its precision O-ring groove provides the sealing surface for the shield cap (220637), ensuring leak-proof coolant flow from the water tube (220700 @130A / 220571 @260A) .
220740 Across the HPRXD Bevel Stacks
Application | Shield Cap | Shield | Ret. Cap | Nozzle | Swirl | Electrode | Water Tube |
|---|---|---|---|---|---|---|---|
130A Bevel | 220637 | 220742 | 220740 | 220646 | 220179 | 220649 | 220700 |
260A Bevel (HPR130/260/400XD) | 220637 | 220741 | 220740 | 220542 | 220436 | 220541 | 220571 |
260A Bevel (HPR800XD) | 220637 | 220897 | 220896 | 220898 | 220436 | 220899 | 220571 |
80A Bevel | 220637 | 220742 | 220845 | 220806 | 220179 | 220802 | 220700 |
200A Bevel | 220637 | 220658 | 220845 | 220659 | 220353 | 220662 | 220700 |
400A Bevel | 220637 | 220636 | 220635 | 220632 | 220631 | 220629 | 220571 |
*Data sourced from Hypertherm HPR260XD, HPR400XD & HPR800XD official consumables tables *
Key Points (buyer-facing)
Dual-amperage bevel retaining cap for HPR130/260/400XD: 220740 covers both 130A bevel and 260A bevel mild steel cutting on HPR130XD, HPR260XD, and HPR400XD . One part number serves two amperage classes in the mid-range bevel platform.
NOT for HPR800XD 260A bevel: The HPR800XD uses a different 260A bevel set — retaining cap 220896 + nozzle 220898 + electrode 220899 + shield 220897 . 220740 is for HPR130XD/HPR260XD/HPR400XD only . If you are running an HPR800XD, you need the 220896 family, not 220740.
NOT for 80A/200A bevel: Those use 220845 as the inner retaining cap . 220740 is strictly the 130A & 260A bevel component.
NOT for straight cutting: 220740 is a bevel-specific component. For 130A/260A straight cutting, the correct retaining caps are different standard parts (130A = 220756-family, 260A = 220760). 220740's internal geometry is engineered for the bevel nozzle's angled profile.
Must be used as a complete set: Per Thermacut engineering guidance, shield (220742@130A / 220741@260A) + shield cap (220637) + inner retaining cap (220740) must be replaced together as a complete interchangeable set . Mixing a worn shield with a new retaining cap — or vice versa — will cause torch malfunction, arc instability, and premature failure of all three components.
Knurled grip for tool-free installation: The HALANSM 220740 features the same knurled grip collar as OEM Hypertherm 220740, allowing for hand-tight installation and removal without tools, while guaranteeing a leak-proof seal for the coolant path .
Change as a set: Per Hypertherm's guidance, HPR consumables interact synergistically — replace electrode + swirl + nozzle + retaining cap + shield + shield cap together for peak cut quality and life .
NOTE: 220740 = Bevel Nozzle Retaining Cap for 130A & 260A bevel on HPR130XD/HPR260XD/HPR400XD. Material: Copper. HPR800XD 260A bevel uses 220896 (not 220740). Must be used as a complete set with 220742(@130A)/220741(@260A) shield + 220637 shield cap. HALANSM 220740 is an aftermarket compatible replacement, not Hypertherm OEM.
