220845 Bevel Inner Retaining Cap Compatible for Hypertherm HPR 130XD 260XD 400XD 80A 200A Mild Steel Plasma Cutting Torch

Bevel Inner Retaining Cap 220845 / Dual-Amperage Bevel Locking Component for HPRXD Series – HALANSM®

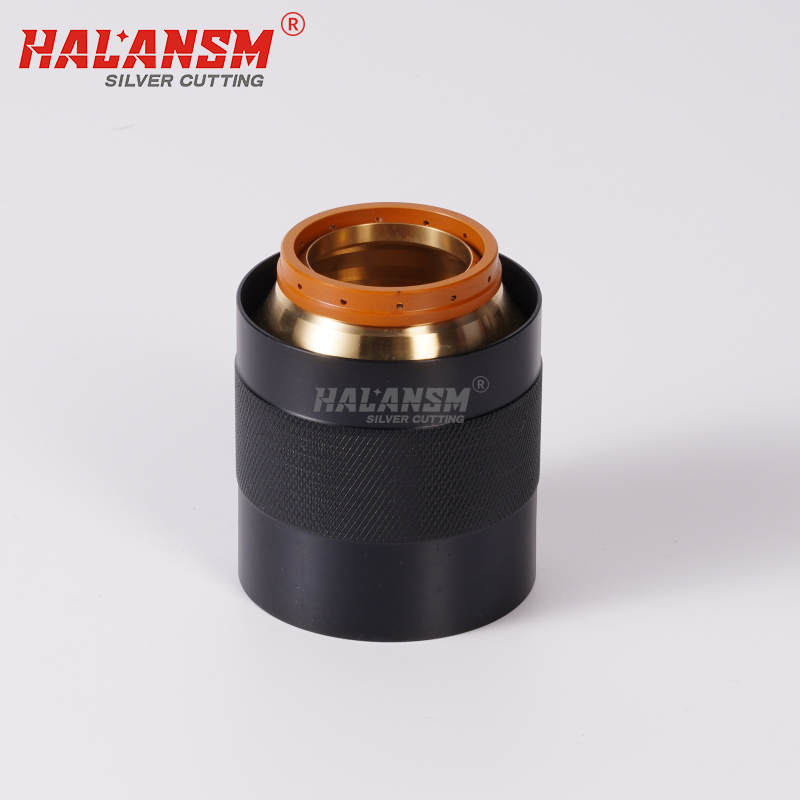

220845 is Hypertherm's bevel inner retaining cap — and uniquely, the only inner retaining cap in the entire HPRXD platform that spans two amperage classes: it serves both 80A bevel and 200A bevel mild steel cutting applications . High-strength copper alloy body, precision-machined internal seating shoulder and external threads . As the critical inner locking component of the bevel torch, the 220845 performs three vital functions simultaneously:

1. Mechanical Lock: Screws over the bevel nozzle (220806 @80A / 220659 @200A), locking the entire inner consumable stack — electrode + swirl ring + nozzle — into perfect axial alignment .

2. Shield Positioning: Seats and positions the bevel shield (220742 @80A / 220658 @200A) in the correct standoff geometry for angled cutting .

3. Coolant Seal: Its precision O-ring groove provides the sealing surface for the shield cap (220637), ensuring leak-proof coolant flow from the water tube (220700) .

220845 Across the HPRXD Bevel Stacks

*Data sourced from Hypertherm HPR260XD & HPR800XD official consumables tables *

Key Points (buyer-facing)

• Dual-amperage bevel retaining cap: 220845 is the only inner retaining cap that covers both 80A bevel and 200A bevel mild steel cutting . One part number serves two completely different amperage classes — a rare versatility in the HPRXD bevel platform.

• NOT for 130A/260A/400A bevel: Those amperages use different inner retaining caps — 130A bevel uses 220740; 260A bevel uses 220740 or 220896; 400A bevel uses 220635 (standard 400A retaining cap, as 400A bevel reuses the standard stack) . 220845 is strictly the 80A & 200A bevel inner retaining cap.

• NOT for straight cutting: 220845 is a bevel-specific component. For 80A/200A straight cutting, the correct inner retaining caps are 220756 (80A) and 220757 (200A) respectively . 220845 is physically and functionally distinct — its internal geometry is engineered for the bevel nozzle's angled profile.

• Must be used as a complete set: Per Thermacut engineering guidance, shield (220742@80A / 220658@200A) + shield cap (220637) + inner retaining cap (220845) must be replaced together as a complete interchangeable set . Mixing a worn shield with a new retaining cap — or vice versa — will cause torch malfunction, arc instability, and premature failure of all three components.

• Precision O-ring seal: The HALANSM 220845 replicates Hypertherm's exact O-ring groove geometry, guaranteeing a leak-proof seal with the water tube (220700) for proper coolant flow . A compromised seal here leads to catastrophic torch overheating.

• Change as a set: Per Hypertherm's guidance, HPR consumables interact synergistically — replace electrode + swirl + nozzle + retaining cap + shield + shield cap together for peak cut quality and life .




NOTE: 220845 = Bevel Inner Retaining Cap for 80A & 200A bevel ONLY. Fits HPR130XD/HPR260XD/HPR400XD. Must be used as a complete set with 220742 (@80A) or 220658 (@200A) shield + 220637 shield cap. 130A bevel uses 220740; 260A bevel uses 220740/220896. HALANSM 220845 is an aftermarket compatible replacement, not Hypertherm OEM.

Disclaimer: HALANSM® is an independent brand offering compatible aftermarket spare parts. This product is not manufactured, endorsed, or affiliated with Hypertherm, Inc.

Real Shot: Images 1–11 above show the actual HALANSM torch ceramic head, Euro connector pins, cable coil, consumable-installed view and length comparison you will receive.
