Perfect OEM Fit: Engineered to exact specifications for Hypertherm HPR260A standard cutting systems, ensuring seamless drop-in replacement.
High Durability: Constructed from premium heat-resistant alloys to withstand extreme thermal stress and protect internal components during high-current operations.
Enhanced Performance: Optimized internal geometry maintains precise gas flow and standoff distance for superior cut quality.
220760
HALANSM®
HLN-220760

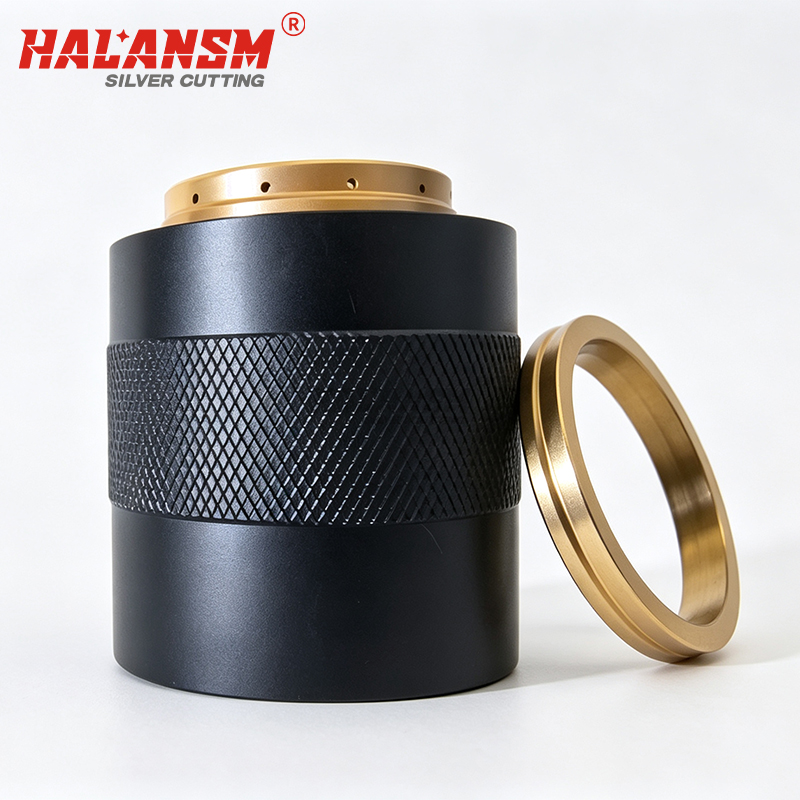

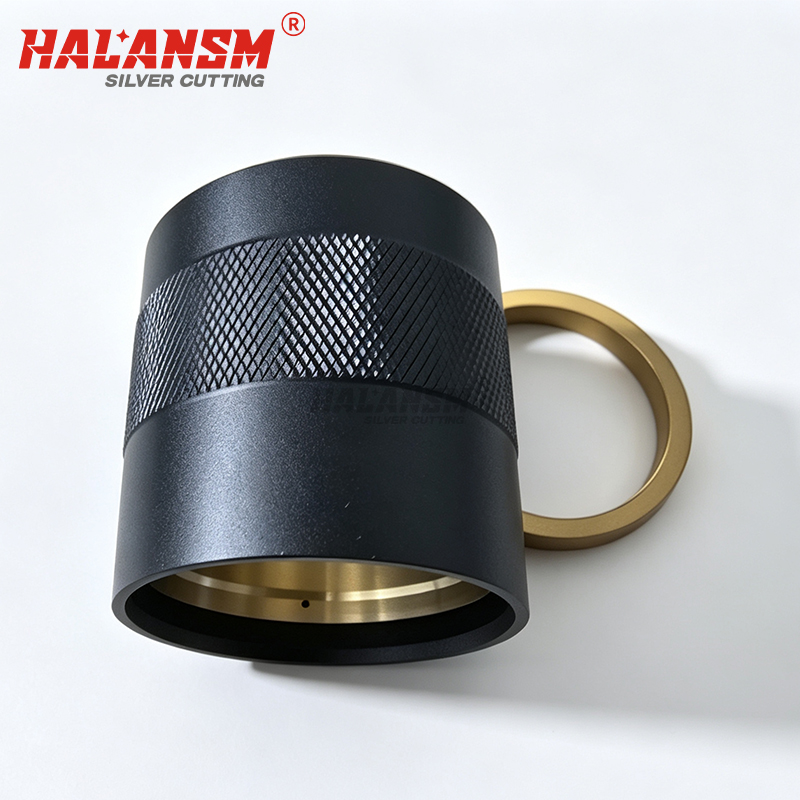

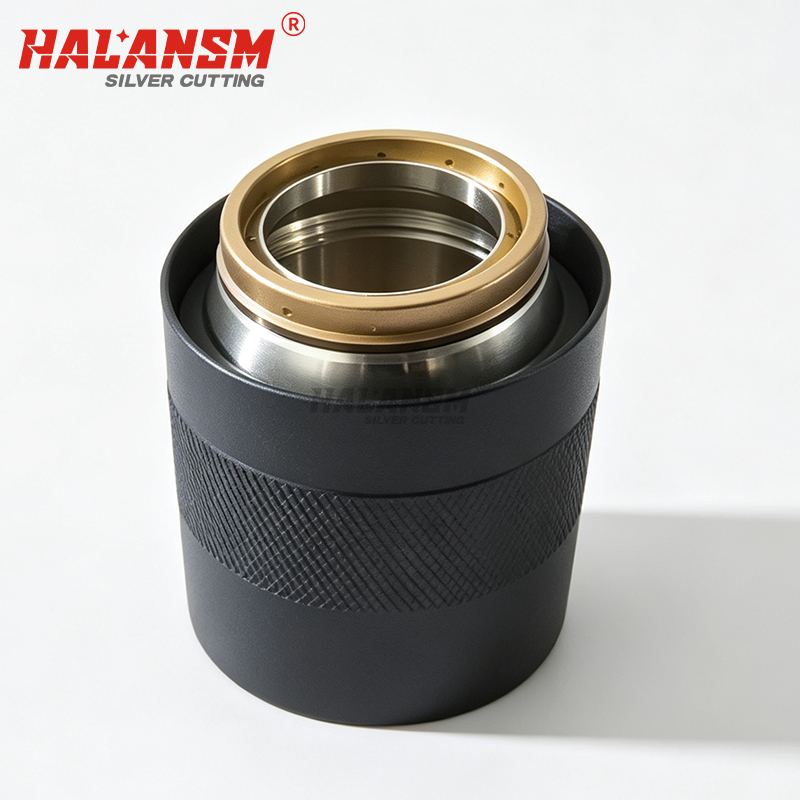

Nozzle Retaining Cap 220760 for Hypertherm HPR260A Plasma Torch – HALANSM®
The HALANSM® 220760 Nozzle Retaining Cap is a critical protective component designed for fabricators utilizing Hypertherm HPR260A plasma systems for high-definition straight cutting operations. Positioned at the forefront of the torch head, this retaining cap plays a vital role in securing the precision-machined nozzle and swirl ring, ensuring a stable and focused plasma arc .
Engineered for Standard Cutting Performance
Standard straight cutting requires consistent standoff distance and uniform gas distribution to achieve clean, dross-free edges on thick materials. The HALANSM 220760 retaining cap is specifically engineered to maintain the integrity of the plasma plume during high-current operations. Its robust construction ensures that the nozzle remains securely in place, even under the intense thermal and mechanical stress of continuous production cutting.
Key Features:
Optimized for Straight Cutting: Designed to work exclusively with the HPR260A standard cutting configuration, ensuring perfect alignment and gas distribution for precise edge cuts .
Superior Thermal Resistance: Crafted from high-grade alloys with a protective copper coating to offer maximum resistance to thermal erosion, preventing warping and extending service life in demanding environments.
Secure Grip Design: Features a precision-knurled outer surface for easy, tool-free installation and removal while providing a secure hold during operation.
Systematic Replacement: For peak performance, it is highly recommended to replace the retaining cap, nozzle, swirl ring, and electrode as a complete interchangeable set. Mixing old and new components can compromise cut quality and torch integrity.
Complete Consumable Stack Reference:
To achieve optimal straight cut quality, the HALANSM 220760 retaining cap should be installed as part of a complete matched set for 260A Standard Cutting:
260A Standard Set: Electrode (220435), Swirl Ring (220439), Nozzle (220546), Retaining Cap (220760), Shield (220764), Shield Cap (220637) .
NOTE: 220760 is the designated retaining cap for the 260A standard cutting system. It is specifically designed for mild steel applications. HALANSM 220760 is an aftermarket compatible replacement, not Hypertherm OEM.
Disclaimer: HALANSM® is an independent brand offering compatible aftermarket spare parts. This product is not manufactured, endorsed, or affiliated with Hypertherm, Inc.
Real Shot: Images 1–11 above show the actual HALANSM torch ceramic head, Euro connector pins, cable coil, consumable-installed view and length comparison you will receive.
