Optimized for Extreme Conditions: Purpose-built for 400A bevel cutting operations on HPRXD series torches, delivering exceptional performance under high thermal loads.
Enhanced Durability: Constructed from premium-grade copper alloys with advanced cooling channel design to resist premature erosion and extend service life.
Seamless Integration: Precision-machined to meet or exceed OEM specifications, ensuring perfect compatibility and hassle-free installation with Hypertherm systems.
220636
HALANSM®
HLN-220636

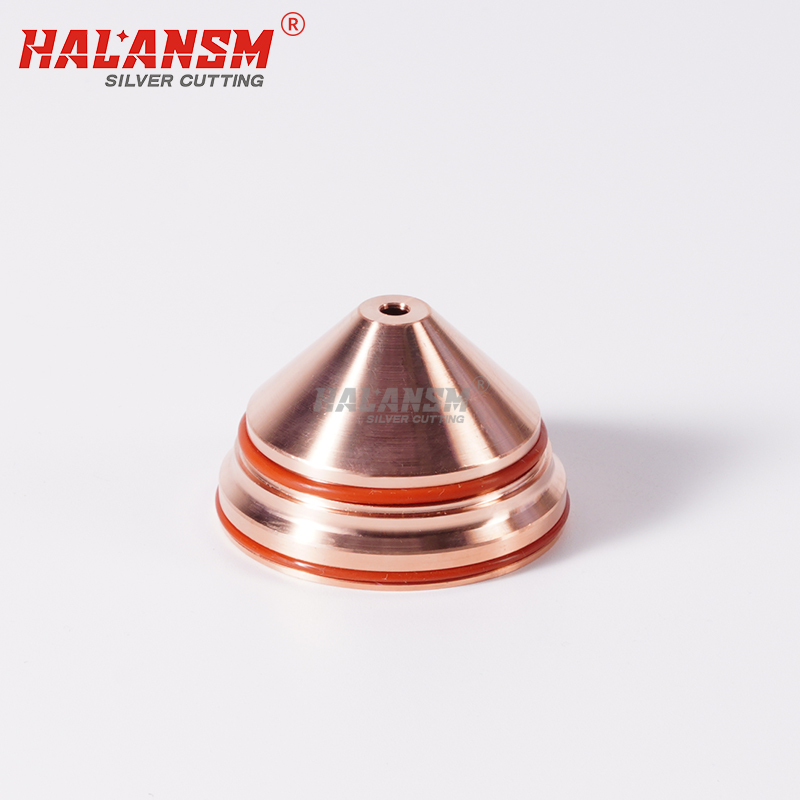

Shield 220636 for Hypertherm HPR Plasma Torch – HALANSM®
The HALANSM® 220636 Shield is a critical protective component designed for fabricators utilizing Hypertherm HPR 130XD, HPR260XD, or HPR400XD plasma systems. Positioned at the forefront of the torch head, this shield plays a vital role in directing the plasma gas flow and safeguarding the precision-machined internal nozzle and electrode from spatter, dross, and extreme thermal damage during high-definition cutting operations .
Engineered for Heavy-Duty Performance
Whether you are performing intricate 400A bevel cuts or high-speed straight cutting, the HALANSM 220636 shield is built to withstand the rigors of industrial manufacturing. Its robust construction ensures that the plasma plume remains stable and focused, which is essential for achieving clean, dross-free edges on thick materials.
Key Features:
High-Precision Construction: Crafted to micron-level tolerances to ensure perfect alignment within the torch head, preventing gas leaks and arc instability.
Maximum Erosion Resistance: Utilizes virgin-grade copper-chromium alloys to offer superior resistance to thermal erosion and warping, reducing the frequency of replacements and minimizing downtime.
Leak-Proof Sealing: Features precision-cut O-ring grooves that guarantee a perfect, leak-proof seal with the retaining cap, ensuring consistent flow of the secondary shielding gas.
Mandatory Component Replacement: Plasma cutting consumables wear out simultaneously. For peak performance and safety, Hypertherm recommends replacing the shield, retaining cap, nozzle, and electrode as a complete interchangeable set. Mixing old and new components can lead to arc instability, poor cut quality, and potential damage to the torch.
Complete Consumable Stack Reference:
To achieve optimal cut quality, the HALANSM 220636 shield should be installed as part of a complete matched set:
400A Bevel Set: Electrode (220629), Swirl Ring (220631), Nozzle (220632), Retaining Cap (220635), Shield (220636).
Straight Cut Set: Electrode (220629), Swirl Ring (220631), Nozzle (220632), Retaining Cap (220635), Shield (220636).
NOTE: 220636 is the designated shield for the 400A system (and often used for 260A/130A with appropriate consumables). Primary fit: HPR400XD. HALANSM 220636 is an aftermarket compatible replacement, not Hypertherm OEM.
Disclaimer: HALANSM® is an independent brand offering compatible aftermarket spare parts. This product is not manufactured, endorsed, or affiliated with Hypertherm, Inc.
