220635 Nozzle Retaining Cap for Hypertherm HPR 400A Plasma Torch Consumables

Nozzle Retaining Cap 220635 for Hypertherm HPR Plasma Torch – HALANSM®

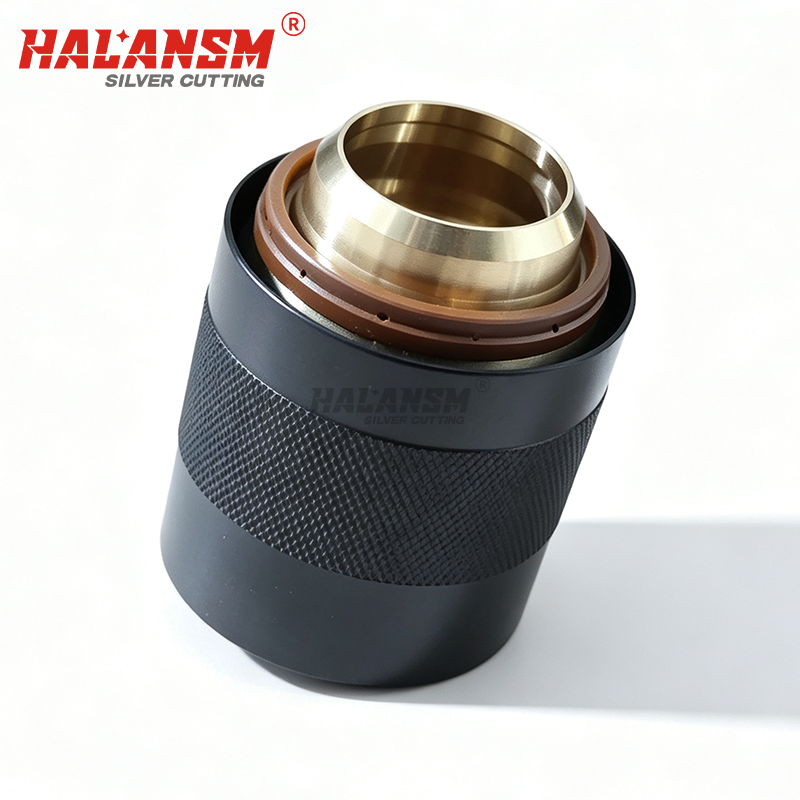

The HALANSM® 220635 Nozzle Retaining Cap is the critical inner locking component for Hypertherm HPR 130XD, HPR260XD, and HPR400XD plasma torches operating at 400A. As the backbone of the consumable stack, it performs three vital functions simultaneously: mechanically locking the electrode (220629), swirl ring (220631), and nozzle (220632) into perfect axial alignment; positioning the shield (220636) at the correct standoff geometry; and providing the sealing surface for the shield cap (220637) to ensure leak-proof coolant flow.

Engineered for 400A Extreme Conditions

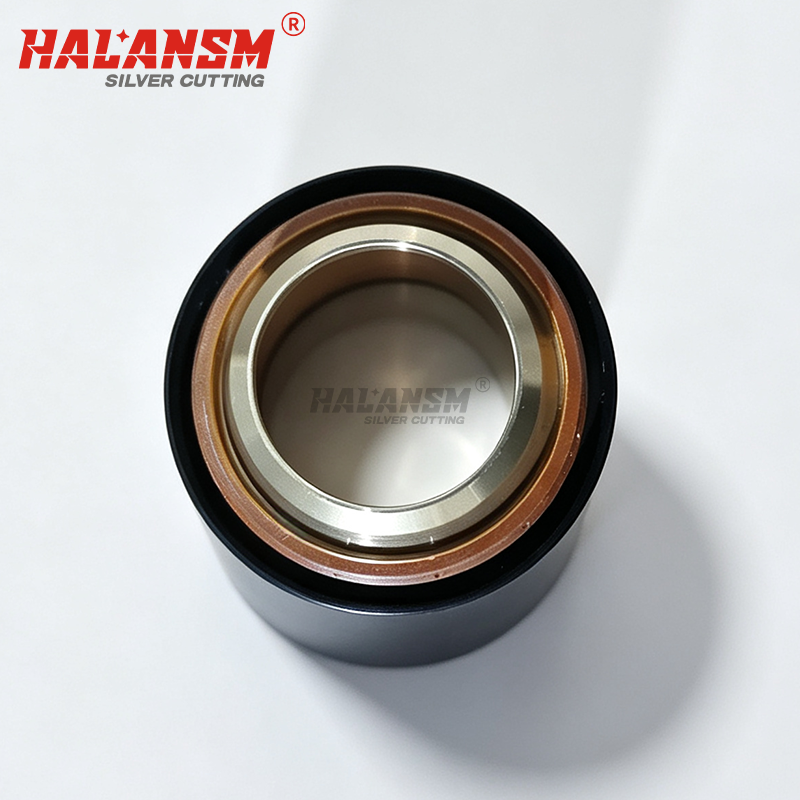

400A cutting—whether straight or bevel—subjects the retaining cap to immense thermal stress and mechanical vibration. The HALANSM 220635 is constructed from a high-strength heat-resistant alloy body with engineered polymer seating surfaces, mirroring the OEM Hypertherm 220635 design philosophy. The polymer seat provides a high-temperature-resistant, low-friction sealing surface that prevents seizing and extends service life, while the knurled grip collar allows for tool-free installation and removal.

Key Features:

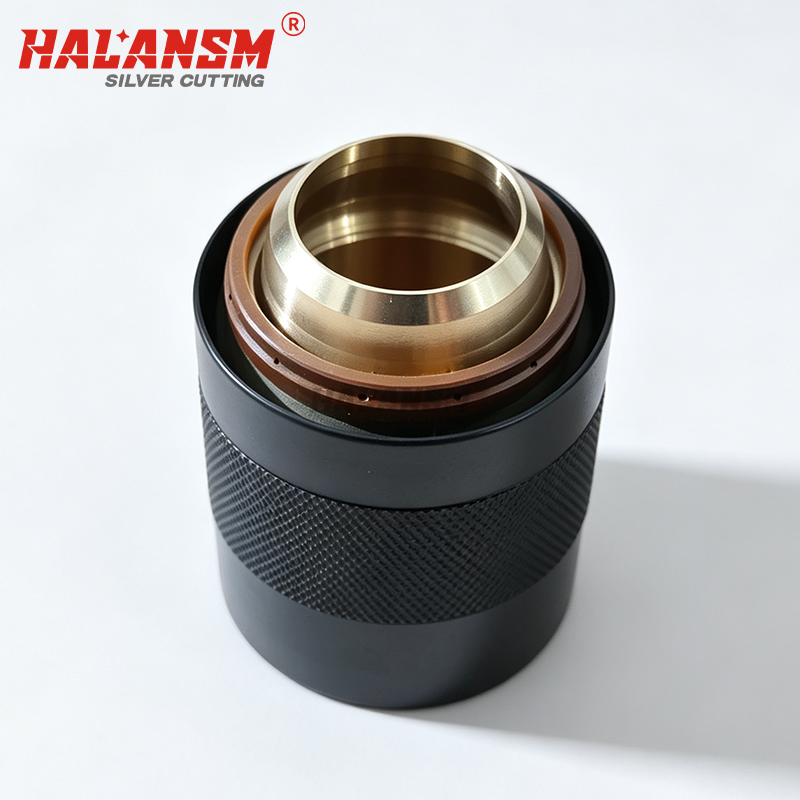

• Precision Axial Locking: The internal seating shoulder is machined to micron-level tolerances, guaranteeing that the nozzle (220632) and swirl ring (220631) remain perfectly centered. This concentricity is essential for maintaining arc stability and achieving clean, dross-free cuts at 400A.

• Leak-Proof Coolant Sealing: Dual O-ring grooves mate perfectly with the shield cap (220637), ensuring a leak-proof seal for the water cooling path from the water tube. No coolant leakage means consistent thermal management and longer life for all adjacent consumables.

• 400A Straight & Bevel Compatibility: The 220635 is the designated retaining cap for the full range of 400A operations on HPRXD torches. In bevel cutting applications, it works in concert with the bevel-specific nozzle (220632) to maintain precise angular gas flow and arc focus.

• Mandatory Set Replacement: Plasma consumables wear interdependently. Hypertherm engineering guidance requires that the retaining cap, electrode, swirl ring, nozzle, and shield be replaced together as a complete interchangeable set. Mixing a worn 220635 with new inner components—or vice versa—will cause arc instability, poor cut quality, and accelerated wear on the entire stack.

Complete 400A Consumable Stack Reference:

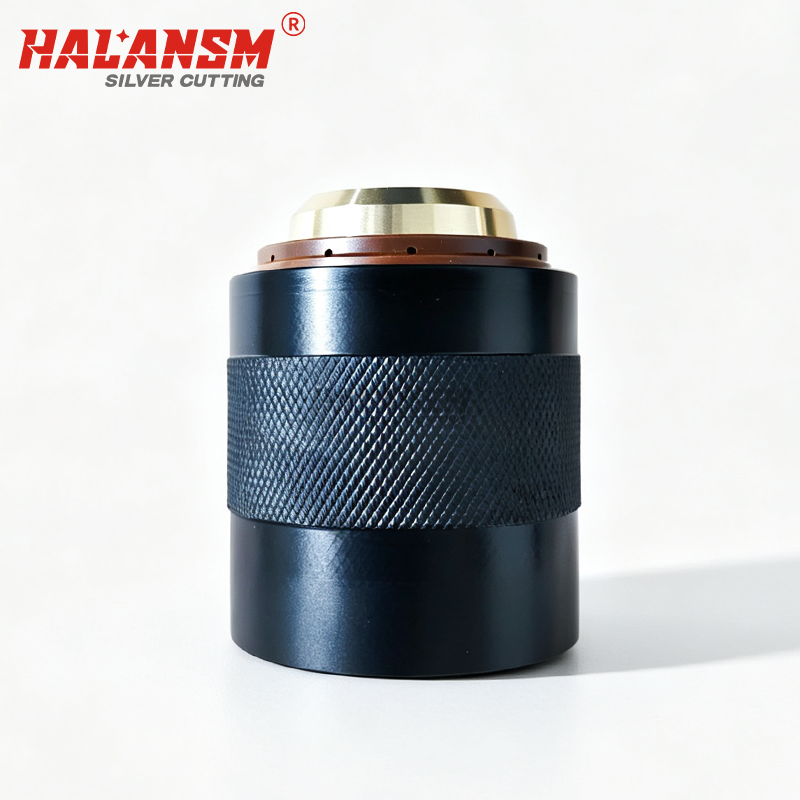

For optimal cut quality and maximum consumable life, the HALANSM 220635 retaining cap must be installed as part of the following matched set:

NOTE: 220635 = 400A Nozzle Retaining Cap. Primary fit: HPR130XD / HPR260XD / HPR400XD. Works for both 400A straight and 400A bevel cutting applications. Must be replaced as a complete set with 220629 electrode, 220631 swirl ring, 220632 nozzle, 220636 shield, and 220637 shield cap. HALANSM 220635 is an aftermarket compatible replacement, not Hypertherm OEM.

Disclaimer: HALANSM® is an independent brand offering compatible aftermarket spare parts. This product is not manufactured, endorsed, or affiliated with Hypertherm, Inc.
