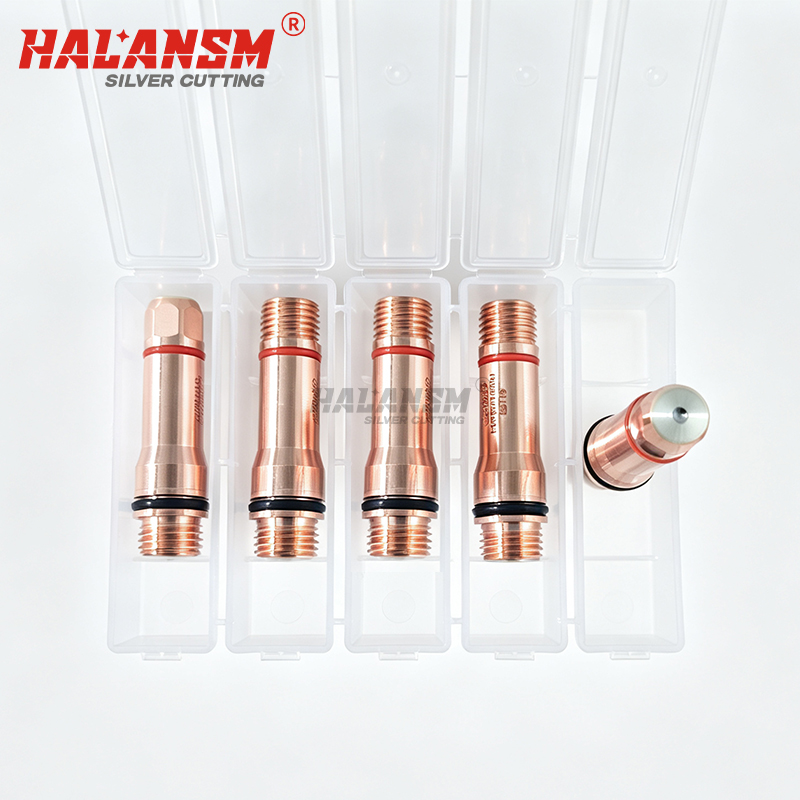

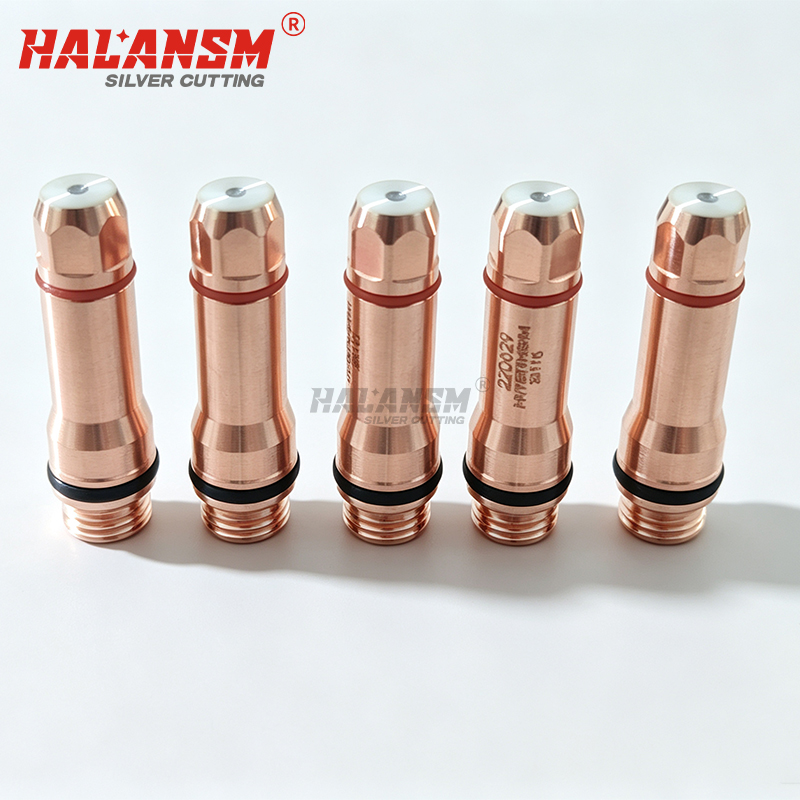

220629 Electrode for Hypertherm HPR400A Plasma Torch Consumables (Bevel 400A)

Electrode 220629 for Hypertherm HPR400A Plasma Torch – HALANSM®

The HALANSM® 220629 Electrode is a premium, heavy-duty consumable specifically engineered for fabricators performing high-definition bevel cutting with Hypertherm HPR400A plasma systems. As the primary source of the plasma arc, this electrode is critical for achieving precise angled cuts required for weld preparation in thick-section materials.

Designed for Extreme Angle Performance

Bevel cutting introduces significant thermal and mechanical stress at non-standard angles. The HALANSM 220629 electrode features a reinforced internal matrix and a specialized silver drag tip to maintain consistent arc characteristics even when the torch is tilted. This ensures clean, slag-free bevel cuts on mild steel and stainless steel.

Key Features:

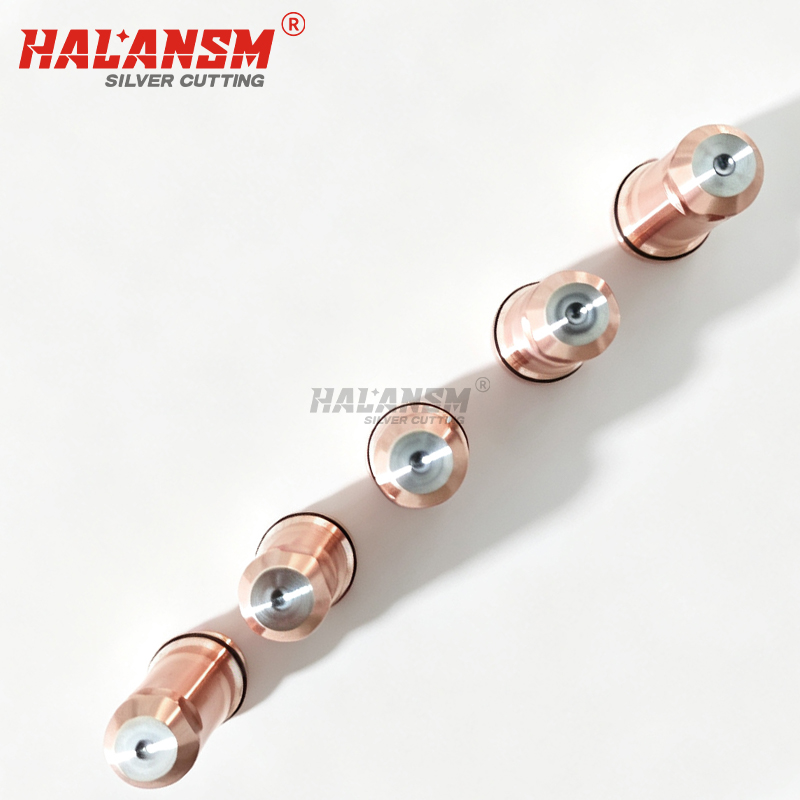

• Silver Drag Tip: The embedded silver tip offers superior resistance to premature erosion compared to standard chrome zirconium tips, resulting in longer life and more reliable arc starts.

• Precision Machining: Tight tolerances ensure perfect concentricity within the swirl ring and nozzle, minimizing turbulence and maximizing cut quality.

• Full System Compatibility: Drop-in replacement for Hypertherm part numbers 220629 and 220630 (OEM variants). Ideal for use with the HPR400A bevel stack (220631 Swirl Ring, 220632 Nozzle, 220635 Retaining Cap).

• Systematic Replacement: For peak performance and to prevent torch damage, replace the electrode as part of a complete set including the swirl ring, nozzle, and retaining cap.

Complete 400A Bevel Consumable Stack Reference:

To achieve optimal results, the HALANSM 220629 electrode should be used with the following matched components:

• 400A Bevel Set: Electrode (220629), Swirl Ring (220631), Nozzle (220632), Retaining Cap (220635), Shield (220636), Shield Cap (220637).

NOTE: This 220629 electrode is specifically designed for 400A bevel cutting applications. Using it in a standard straight-cut configuration is possible but may not provide the same cost-efficiency as the standard 400A electrode (220625). HALANSM 220629 is an aftermarket compatible replacement, not manufactured by Hypertherm.

Disclaimer: HALANSM® is an independent brand offering compatible aftermarket spare parts. This product is not manufactured, endorsed, or affiliated with Hypertherm, Inc.

Real Shot: Images 1–11 above show the actual HALANSM torch ceramic head, Euro connector pins, cable coil, consumable-installed view and length comparison you will receive.
