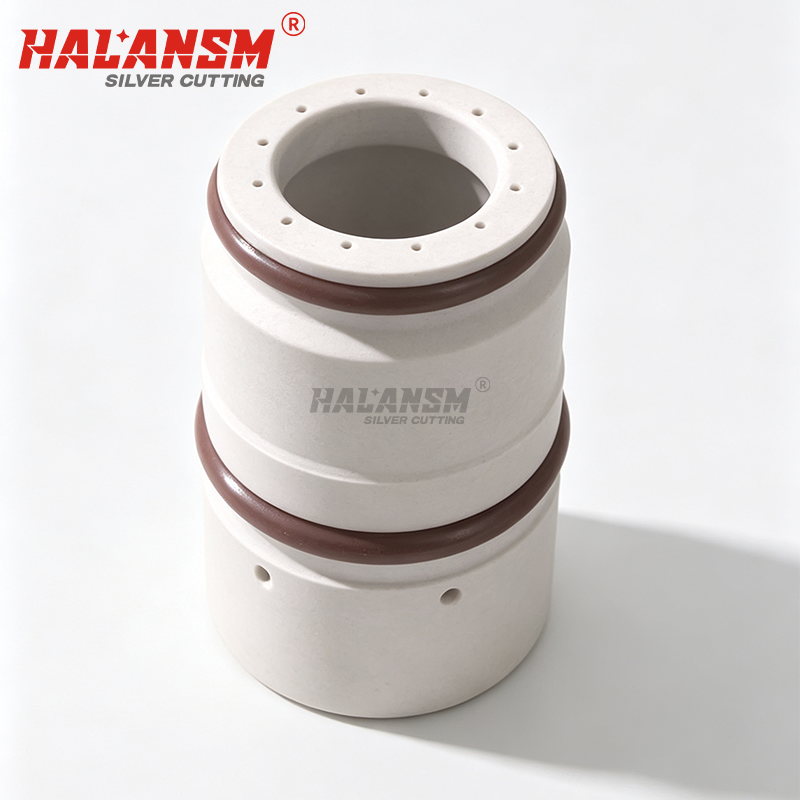

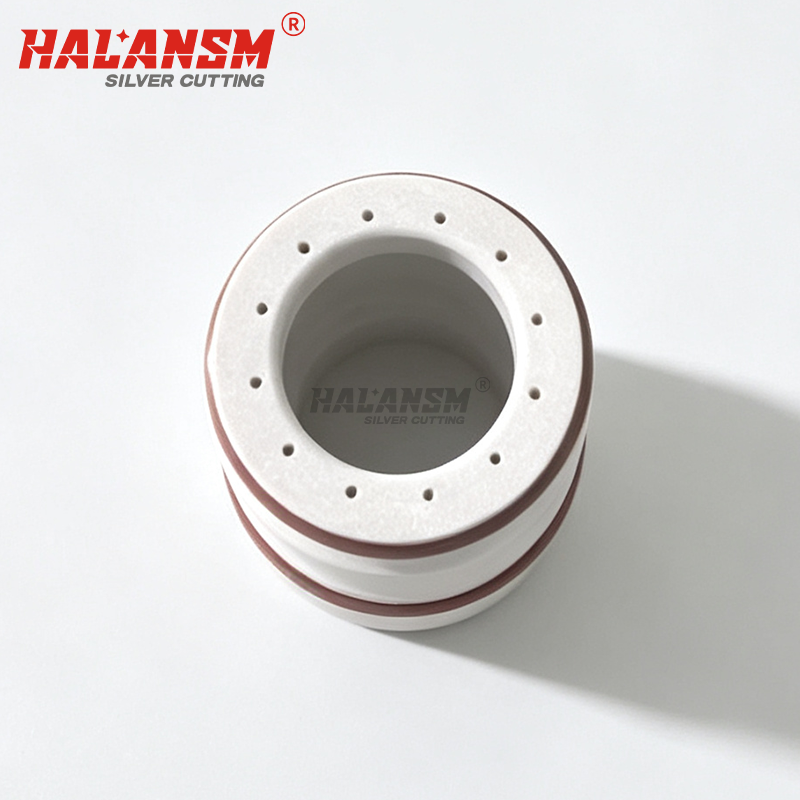

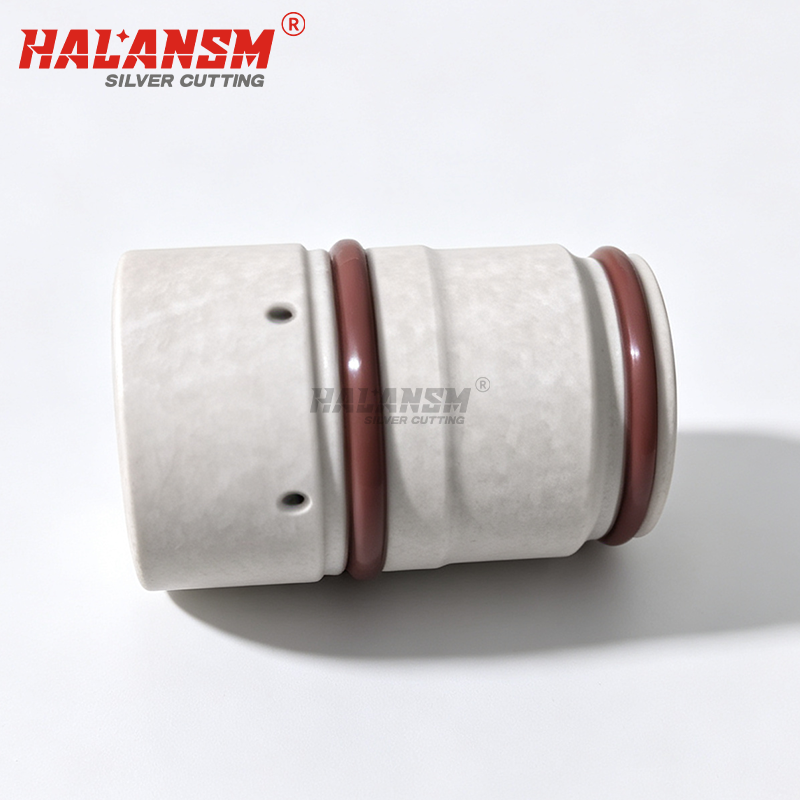

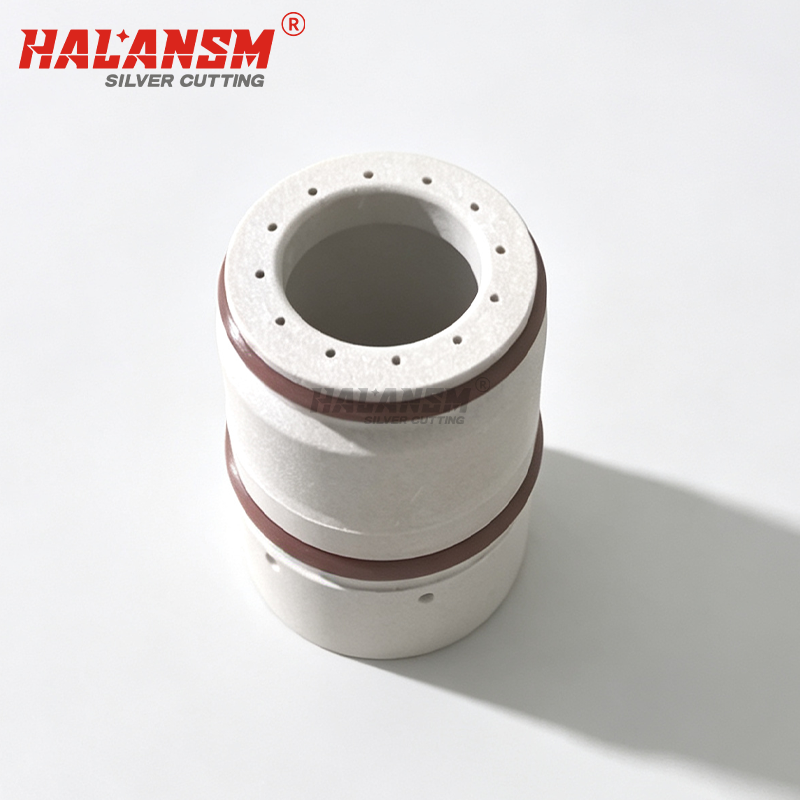

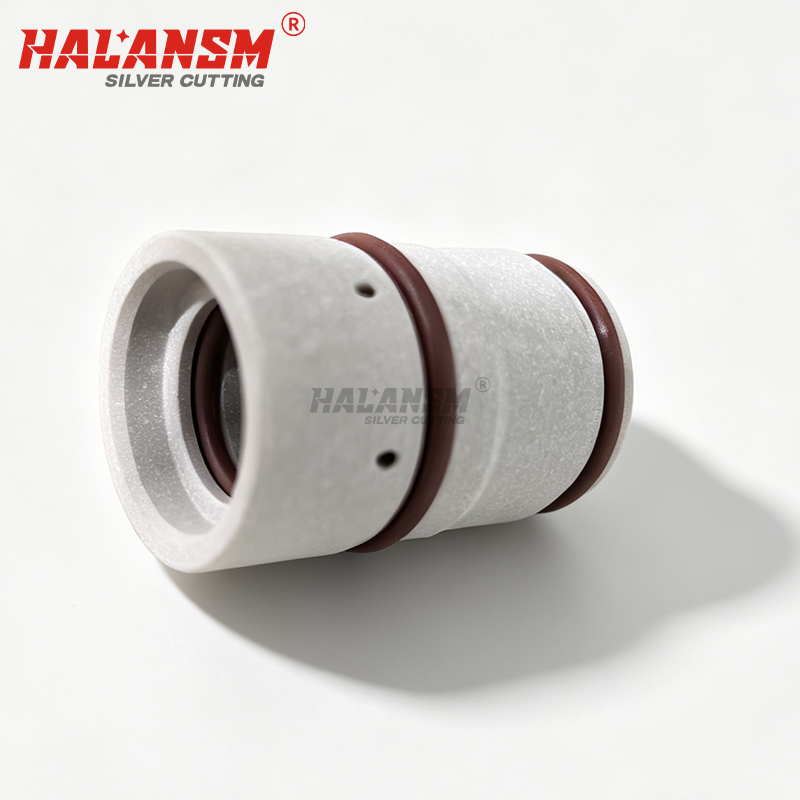

220631 Swirl Ring for Hypertherm HPR400A Plasma Torch Consumables (Bevel 400A)

Swirl Ring 220631 for Hypertherm HPR400A Plasma Torch – HALANSM®

The HALANSM® 220631 Swirl Ring is a premium, heavy-duty consumable specifically engineered for fabricators performing high-definition bevel cutting with Hypertherm HPR400A plasma systems. As a critical component in the plasma torch, the swirl ring directs the plasma gas flow in a rotational pattern, which is essential for maintaining a stable arc at extreme angles.

Designed for Extreme Angle Performance

Bevel cutting introduces significant thermal and mechanical stress at non-standard angles. The HALANSM 220631 swirl ring features precision-machined internal vanes that create a stable, rotating plasma plume, ensuring clean, slag-free bevel cuts on thick-section materials. This optimized gas flow is crucial for achieving precise angular cuts required for weld preparation.

Key Features:

• Precision Gas Dynamics: The internal geometry is designed to minimize turbulence and maximize cut quality, even when the torch is tilted.

• High Thermal Resistance: Constructed from high-grade ceramic and metal composites to withstand extreme thermal stress and prevent warping.

• Full System Compatibility: Drop-in replacement for Hypertherm part numbers 220631 and compatible variants. Ideal for use with the HPR400A bevel stack (220629 Electrode, 220632 Nozzle, 220635 Retaining Cap).

• Systematic Replacement: For peak performance and to prevent torch damage, replace the swirl ring as part of a complete set including the electrode, nozzle, and retaining cap.

Complete 400A Bevel Consumable Stack Reference:

To achieve optimal results, the HALANSM 220631 swirl ring should be used with the following matched components:

• 400A Bevel Set: Electrode (220629), Swirl Ring (220631), Nozzle (220632), Retaining Cap (220635), Shield (220636), Shield Cap (220637).

NOTE: This 220631 swirl ring is specifically designed for 400A bevel cutting applications. Using it in a standard straight-cut configuration is possible but may not provide the same cost-efficiency as the standard 400A swirl ring (220630). HALANSM 220631 is an aftermarket compatible replacement, not manufactured by Hypertherm.

Disclaimer: HALANSM® is an independent brand offering compatible aftermarket spare parts. This product is not manufactured, endorsed, or affiliated with Hypertherm, Inc.

Real Shot: Images 1–11 above show the actual HALANSM torch ceramic head, Euro connector pins, cable coil, consumable-installed view and length comparison you will receive.
