HALANSM® HPR 400A 260A 200A Bevel Cutting Consumables Kit - Plasma Torch Electrode Nozzle Swirl Ring

HALANSM® HPR 200A 260A 400A Bevel Cutting Consumables Kit – Plasma Torch Parts

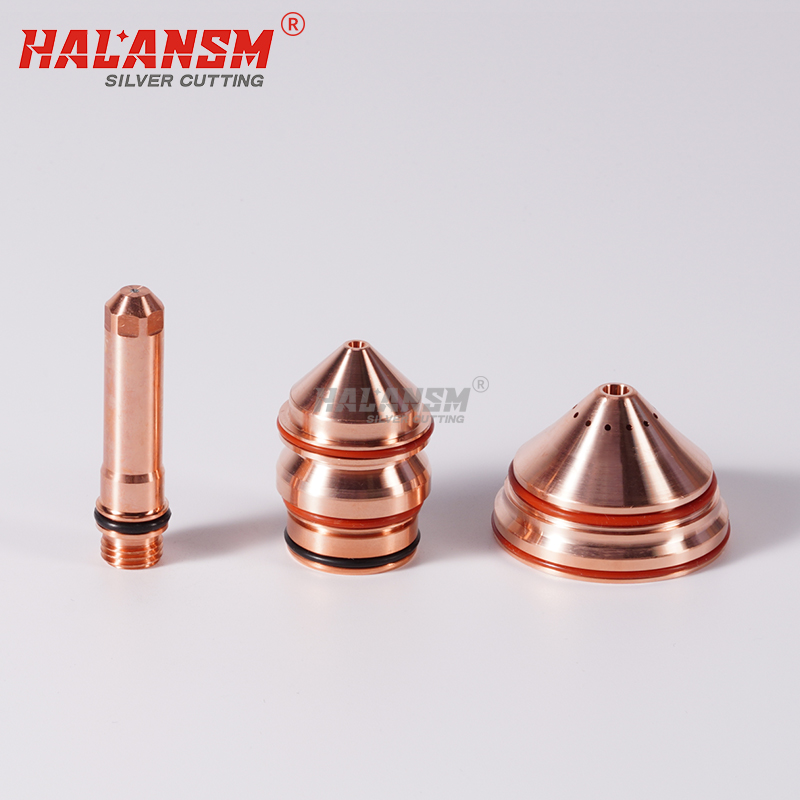

The HALANSM® HPR Bevel Cutting Consumables Kit is a comprehensive maintenance solution designed for fabricators who require precise angled cuts for weld preparation using Hypertherm HPR plasma systems. This expertly assembled kit includes the three most critical wear components of the torch: the Electrode (220629), Swirl Ring (220631), and Nozzle (220632), covering 200A, 260A, and 400A bevel cutting operations.

Why Choose the HALANSM Bevel Consumables Kit?

Bevel cutting places significant thermal and mechanical stress on plasma consumables due to the angled torch position. Using substandard or mismatched parts can lead to arc instability, excessive dross, and premature failure. The HALANSM kit is specifically engineered to replicate OEM designs, ensuring your torch maintains peak performance across various current levels.

Key Features:

• Electrode (220629): Features a robust copper body with a precision-machined embedded silver drag tip, designed to withstand the extreme conditions of high-current bevel operations.

• Swirl Ring (220631): Constructed from high-purity ceramic and metal composites, this ring features precision-machined internal vanes that create a stable, rotating plasma gas flow for precise angular cuts.

• Nozzle (220632): Precision-drilled from high-conductivity CuCrZr alloy, this nozzle provides the optimal orifice size and standoff distance for maximum energy transfer and a clean cut edge.

Complete Bevel Cutting Stack Reference:

For optimal performance and longevity, it is highly recommended to replace these components together as a set, along with the retaining cap and shield. The typical 400A Bevel stack includes:

• Electrode: 220629

• Swirl Ring: 220631

• Nozzle: 220632

• Retaining Cap: 220635

• Shield: 220636

• Shield Cap: 220637

NOTE: This kit is specifically designed for Bevel Cutting applications at 200A, 260A, and 400A. While the individual parts may physically fit other configurations, using them outside of their intended application may lead to suboptimal performance. HALANSM® is an independent brand offering premium aftermarket replacements compatible with Hypertherm® systems.

Disclaimer: HALANSM® is an independent brand offering compatible aftermarket spare parts. This product is not manufactured, endorsed, or affiliated with Hypertherm, Inc.

Real Shot: Images 1–11 above show the actual HALANSM torch ceramic head, Euro connector pins, cable coil, consumable-installed view and length comparison you will receive.
