In the demanding world of industrial fabrication, having a reliable and comprehensive supply of spare parts is non-negotiable. The HALANSM® HSD130 Consumable Series is meticulously engineered to provide fabricators with a seamless, high-performance alternative to OEM parts for the Hypertherm HSD130 plasma cutting systems. Whether you are involved in intricate detail work or heavy-duty structural cutting, our full spectrum of components ensures your torch operates at peak efficiency, delivering clean cuts and maximizing your operational uptime.
Our HSD130 series incorporates HALANSM®'s proprietary Silver Cutting™ technology, a specialized surface treatment that enhances thermal conductivity and resists oxidation. This innovation results in more stable arc starts, reduced dross adhesion, and significantly extends the lifespan of critical components compared to standard chrome-zirconium alternatives.
The true power of the HALANSM® HSD130 series lies in its versatility. Our consumables are specifically designed and cross-referenced to perform flawlessly across various current levels and assist gases. This adaptability makes them ideal for a wide range of fabrication tasks, from thin-gauge sheet metal to thick structural sections.
Amperage & Gas Type | Ideal Application Scenarios | Recommended Fabrication Tasks |
|---|---|---|
45A (Air) | General fabrication, HVAC ductwork, automotive repair. | Cutting thin to medium gauge mild steel and stainless steel with high precision. |
50A (Oxygen) | Shipbuilding, pipeline construction, heavy structural fabrication. | Superior cut quality on mild steel with faster piercing times and cleaner edges. |
130A (Air/Nitrogen/H35) | Heavy machinery manufacturing, large-scale construction, demolition. | Thick plate processing, high-speed drag cutting, and bevel preparations. |

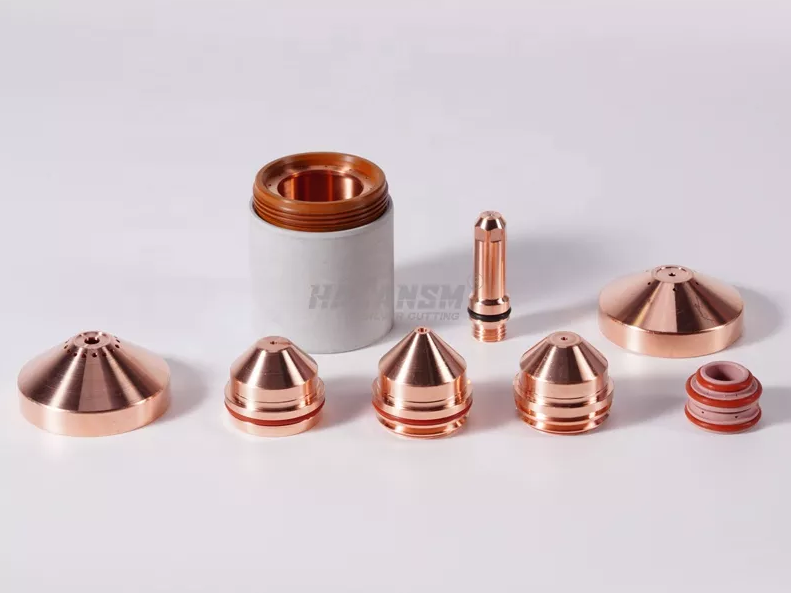

Maintaining optimal cut quality requires replacing the entire consumable stack simultaneously. HALANSM® provides all the necessary components to keep your HSD130 running at peak efficiency. Below is a detailed breakdown of our compatible parts and their OEM equivalents.
Component | HALANSM® Model | OEM Cross Reference | Primary Function |
|---|---|---|---|
Electrode | Compatible Part | 220528 (45A) / 220487 (130A Air) / 020415 (130A H35) | Generates the primary plasma arc; features a high-purity hafnium insert. |

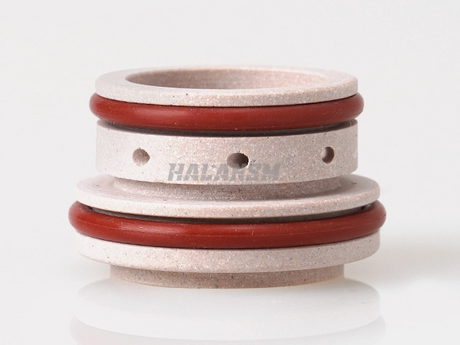

Swirl Ring | Compatible Part | 220529 (45A/50A) / 220488 (130A) | Creates the vortex gas flow necessary to cool the nozzle and center the arc. |
Nozzle | Compatible Part | 220525 (45A) / 220530 (50A O₂) / 220492 (130A Air) | Focuses the plasma stream for piercing and cutting through sheet metal. |
Inner Shield | Compatible Part | 220532 (45A) / 220536 (130A Air) / 220491 (130A O₂) | Shields the nozzle from spatter and assists in arc focusing. |
Retaining Cap | Compatible Part | 220578 (Air) / 220534 (N2/H35) | Secures the nozzle and swirl ring assembly within the torch head. |
Water Tube | Compatible Part | 220521 | Delivers high-pressure internal water cooling to prevent torch meltdown. |
Q: How does the Silver Cutting™ finish benefit the cutting process?
A: The Silver Cutting™ surface treatment enhances thermal conductivity and resists oxidation. This results in a more stable plasma arc during initial ignition and throughout the cutting cycle, which directly translates to cleaner edges and longer consumable life.
Q: Can these 130A parts be mixed and matched with lower-amperage consumables?
A: HALANSM® parts are designed to strict OEM dimensional tolerances. However, for optimal performance and to avoid damaging the torch, we recommend using the correct amperage-specific stack for your application.
Q: Is HALANSM® a direct replacement for genuine Hypertherm parts?
A: Yes. HALANSM® consumables are fully compatible drop-in replacements. They are manufactured to meet or exceed OEM specifications, providing professional-grade results at a more competitive price point.
