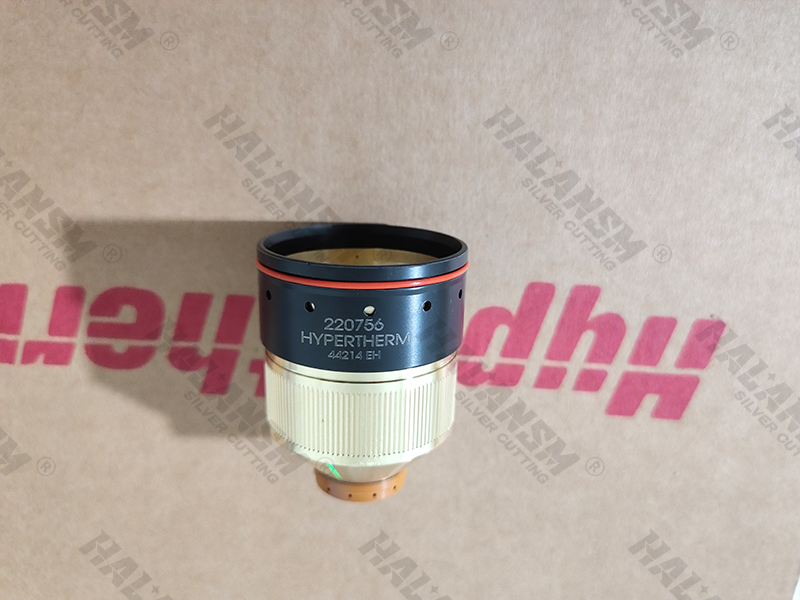

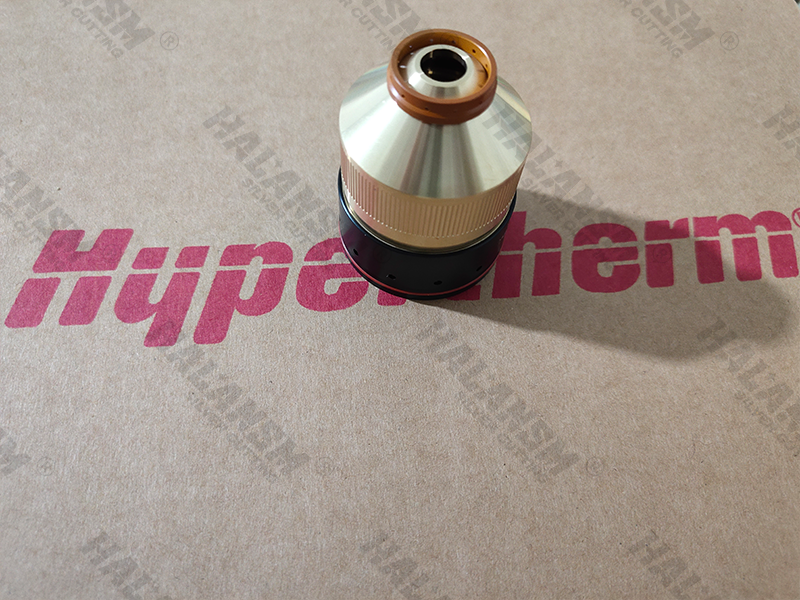

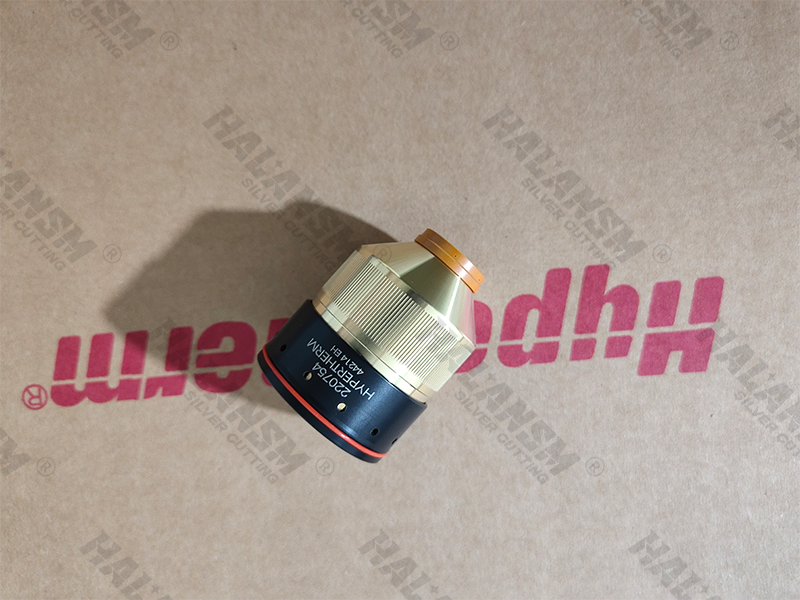

The Hidden Science Behind Extended Plasma Cutter Life: Why the HALANSM 220756 Retaining Cap is Non-Negotiable for HPR-XD Shops

In the demanding world of industrial fabrication, the efficiency of your equipment is directly tied to your bottom line. While operators often focus on electrodes and nozzles, one component quietly dictates the overall health of your plasma torch: the retaining cap. Specifically designed as the ultimate upgrade for the Hypertherm HPR130XD, HPR260XD, and HPR400XD platforms, the HALANSM® 220756 Nozzle Retaining Cap​ is engineered to solve the most pressing issues fabricators face—thermal runaway and premature wear.

Often overlooked, the retaining cap is the silent guardian of your torch's consumable cluster. It is not merely a screw-on cover; it is a precision-engineered vessel for heat management and arc integrity.

Unmatched Advantages of the HALANSM 220756:

• Optimized Cooling Channels:​ Features precision-machined waterways that maximize coolant flow around the nozzle. This prevents dangerous overheating and ensures the torch maintains stable arc characteristics even during extended high-current operations.

• Ultimate Material Durability:​ Constructed from high-grade, heat-resistant alloys, this cap withstands the extreme thermal cycling inherent in plasma cutting. It resists warping, cracking, and spatter adhesion far better than standard materials.

• Perfect Drop-In Compatibility:​ Reverse-engineered to exact OEM specifications. It installs seamlessly into HPR130XD, HPR260XD, and HPR400XD torches (for 80A and 130A bevel or straight cutting applications) without requiring any modifications.

• Enhanced Cut Quality:​ By providing a perfectly true seating for the nozzle and ensuring consistent water cooling, this retaining cap helps eliminate common cutting defects such as double arcing and excessive dross, resulting in cleaner edges and faster pierce times.

• Exceptional Value:​ HALANSM® is committed to providing premium aftermarket solutions. This retaining cap offers a significant cost saving over original equipment manufacturer parts while delivering equal or better performance and longevity.

The Hidden Science: How a Quality Retaining Cap Prevents Costly Downtime

Many fabricators only discover the importance of their retaining cap when it fails catastrophically. A substandard or worn cap can lead to a cascade of failures:

1. Misalignment:​ If the cap does not sit flush, the nozzle is pushed out of center, causing the plasma arc to "double arc" to the side of the torch. This destroys both the nozzle and the electrode in minutes.

2. Insufficient Cooling:​ In water-cooled torches like the HPR-XD series, the retaining cap forms a critical part of the cooling circuit. Poor thermal transfer leads to localized hot spots, causing the brass components to expand unevenly and the o-rings to fail.

3. Erosion Acceleration:​ Cracks or imperfections in the cap allow high-velocity plasma gas to escape unpredictably, eroding the consumables unevenly and wasting cut quality.

The HALANSM 220756 eliminates these risks. Its robust, heat-resistant construction and precise machining provide a rock-solid platform for your most critical components.

Application & Equipment Compatibility:

The HALANSM 220756 is the ideal upgrade for fabricators who refuse to compromise on quality to save money.

• Compatible Systems:​ Hypertherm HPR130XD Plasma Power Source, Hypertherm HPR260XD Plasma Power Source, Hypertherm HPR400XD Plasma Power Source.

• Applicable Current:​ Specifically designed for 80A and 130A cutting operations.

• Target Industries:​ Heavy fabrication, shipbuilding, automotive restoration, HVAC, and architectural steelwork where maximum uptime and cut quality are critical.

Complete Your Cutting Kit with These Essential Accessories:

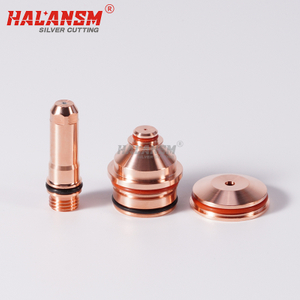

For optimal performance, safety, and to prevent premature failure of your new retaining cap, it is highly recommended to replace the entire consumable cluster simultaneously. HALANSM® offers a full range of compatible spares for your HPR-XD torch:

Invest in the HALANSM 220756 Nozzle Retaining Cap to protect your significant investment in a Hypertherm HPR-XD system. Experience fewer production stoppages and consistently superior cut quality.
