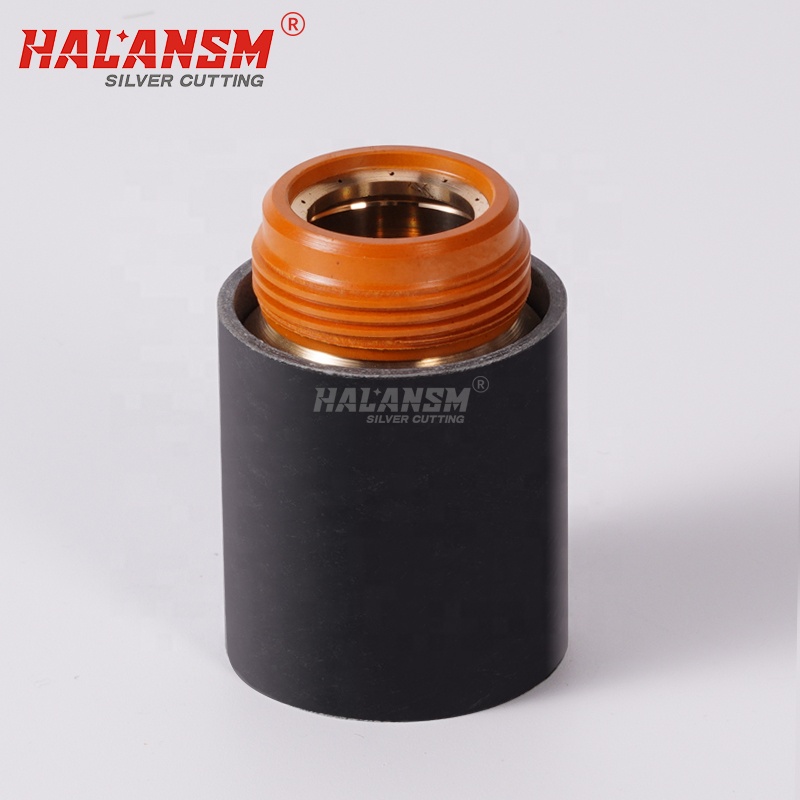

HALANSM 220977 retaining cap locking 220975 nozzle and 220971 electrode on Powermax125 SL100 torch HALANSM 220977 retaining cap locking 220975 nozzle and 220971 electrode on Powermax125 SL100 torch

loading

220977 Retaining Cap For Hypertherm Powermax 125 (45–125A) Plasma Cutting Torch

SKU:
Availability:
Quantity:
Inquire Add to Basket

PDF Export

The HALANSM 220977​ is the PM125-dedicated retaining cap​ that locks the front-end stack (electrode → swirl → nozzle → shield) into the Powermax125 SL100 / Duramax Hyamp 180 torch. Rated 45–125A, it seats against the shield (220976 mechanized / 220992 drag on PM125) and threads onto the torch body 428147.

  • 220977

  • HALANSM

  • HLN-220977

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button
Previous:
Next:
Technical Specifications
Product Description
Catalogue
Part Number
220977
Process Type​
Retaining Cap
Compatible Torch​
Powermax125 SL100 handheld / Duramax Hyamp 180 machine
Amperage Range​
45–125A
Material
Heat-resistant engineering polymer + copper-alloy insert
Seats Against
Shield 220976 (mech) / 220992 (drag) on PM125
Locks Stack
220971 elec + 220975 nozzle + 220976 shield
OEM Reference
Hypertherm 220977



Retaining Cap 220977 For Hypertherm Powermax 125 (45–125A) Plasma Cutting Torch

The retaining cap is the "lock nut" at the front of the torch head. Its job: clamp electrode + swirl + nozzle + shield into square alignment so the arc stays centered and the nozzle face doesn't get blasted by molten-back.


Key Points (buyer-facing)

  • PM125-Only Geometry: 220977 is the Powermax125 / Duramax Hyamp 180 cap. Thread pitch and seat land differ from PM105's 220854 (hand) / 220953 (Ohmic mech). Even though they lookclose, cross-mounting breaks the seal.

  • 45–125A Span: One cap covers the full PM125 amperage range (drag 65A through Hyamp 125A), so you don't stock multiple caps per amp tier on PM125.

  • Polymer + Copper Insert: Outer body takes the handling/scrape; copper insert keeps the thread seat dimensionally stable under heat cycling.

  • Stack Alignment: Locks 220971 electrode + 220975 nozzle + 220976 shield (mech) or 220992 (drag) against torch body 428147.


PM125 Front-End Stack (reference)

Pos

Component

PM125 Ref #

Electrode

220971 (Silver)

220971

Nozzle

220975 (65–125A)

220975

Swirl

integrated in 220971 stack or 220994

220994

Shield

220976 (mech) / 220992 (drag)

220976 / 220992

Retaining Cap

220977

220977

Torch Body

428147

428147

Cross-sell:If buyer runs PM105 + PM125 mixed fleet, explicitly flag: 220854/220953 ≠ 220977. We can bundle PM105 (220854) + PM125 (220977) as a "mixed fleet cap set" so the floor doesn't mix them up.


Disclaimer: This product is manufactured by HALANSM as a compatible replacement part. It is not created or endorsed by Hypertherm Inc. as an OEM product.
