Powermax45 Consumables Series Engineering: Complete 30–45A Stack Cross-Reference For T45v And Duramax Lock Torches With HALANSM® Precision Replication

The Powermax45 Consumables Series: Two Torch Platforms, One Physics Foundation

The HALANSM® Powermax45 Consumables Series​ is a complete family of plasma arc-constriction components engineered for Hypertherm's Powermax45 plasma cutting systems, covering the full 30–45A operating range. Critically, the Powermax45 exists in two distinct torch architectures​ that are not interchangeable:

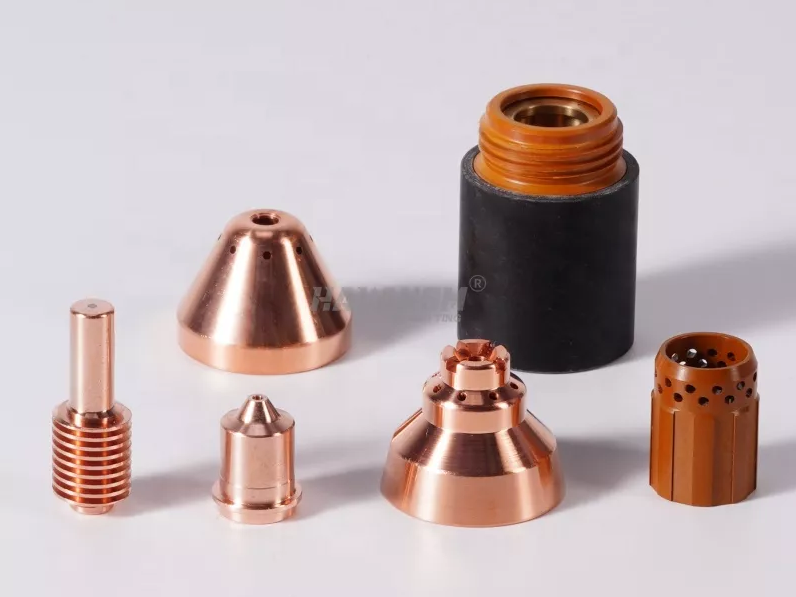

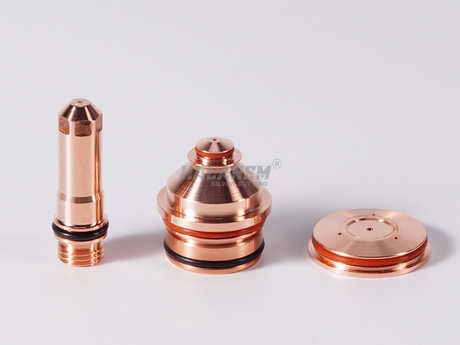

1. Legacy T45v handheld torch​ — Uses the original consumable stack: 220674 shield · 220713 retaining cap · 220671 nozzle · 220669 electrode · 220670 swirl ring (45A)

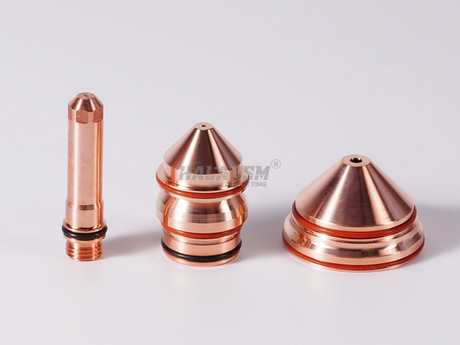

2. Powermax45 XP Duramax Lock torch​ — Uses the modern Duramax consumable platform shared with Powermax65/85/105: 220818 shield · 220854 retaining cap · 220941 nozzle · 220842/220777 electrode · 220857 swirl ring (45A)

Both platforms operate on the same core physical principle: the swirl ring imparts a vortex to the compressed air, the electrode's hafnium emitter provides the arc attachment point, the nozzle constricts the arc into a laminar core, and the shield directs the flow while protecting the torch body. The Powermax45 is an air-cooled system​ — there is no water tube requirement. At 45A, the system delivers 50% duty cycle (5 minutes arc-on per 10 minutes); at 32A, it reaches 100% duty cycle .

Critical platform note: The Powermax45 XP can be upgraded to the Powermax45 SYNC cartridge platform​ (428925/428926/428927/428928/428932/428933) , which replaces the multi-piece stack-up with a single-piece SmartSYNC cartridge. However, this article addresses the multi-piece consumable series​ that remains in active service worldwide on both T45v and Duramax Lock torches.

Why Does Hafnium Emitter Physics Govern The 30–45A Range?

To understand why the 220842 (Duramax) or 220669 (T45v) electrode serves the entire 30–45A range, we must examine the arc attachment mechanism.

Hafnium Work Function And Arc Root Attachment

Both the 220842 (Duramax XP) and 220669 (T45v) electrodes feature a hafnium insert embedded in a copper-chromium-zirconium (CuCrZr) holder. Hafnium has a low work function (~3.5 eV) and an exceptionally high melting point (2,233°C / 4,051°F) — properties that make it the ideal arc root attachment point. When the pilot arc initiates, the hafnium emits electrons via thermionic emission, establishing a stable, low-resistance path for the main arc. The electrode's hafnium cavity geometry is dimensioned so that at any current between 30A and 45A, the arc root remains pinned to the center of the hafnium button. This is why a single electrode part number serves the entire 30–45A range — the hafnium emitter's job does not change with current; only the volume of ionized gas around it scales with amperage, which is managed by the nozzle.

CopperPlus Alternative (220777)

Hypertherm also offers the 220777 "CopperPlus" electrode for the Duramax Lock platform . CopperPlus is a copper-zirconium alloy that provides longer service life compared to standard copper electrodes, particularly when cutting metal 12mm (1/2") and under . The 220777 is dimensionally and electrically identical to the 220842 — it is a direct replacement that extends electrode life. HALANSM® manufactures both 220842 and 220777 equivalents to OEM specification.

Swirl Ring Vortex And Arc Centering

The 220857 (Duramax XP) or 220670 (T45v) swirl ring sits immediately upstream of the nozzle. Its internal vanes impart a helical rotation to the incoming compressed air, creating a cyclonic vortex. This vortex serves two physical functions:

1. Centripetal arc pinning​ — The rotating gas column generates a radial pressure gradient that forces the plasma arc to remain coaxial with the torch body, preventing the arc root from wandering off the hafnium emitter

2. Laminar core establishment​ — The vortex organizes the gas flow into a coherent annular pattern, leaving a low-turbulence central core through which the arc column passes

At 45A, the electromagnetic forces trying to destabilize the arc are at their maximum for this system class. The swirl ring's vortex must counteract these forces continuously. Any disruption to the swirl ring's gas injection orifices — caused by spatter, debris, or dimensional variance in aftermarket copies — breaks the vortex symmetry, allowing the arc to "wobble" and strike the nozzle wall, initiating double arcing.

Nozzle Bore Constriction And Laminar Core Formation

The nozzle (220941 at 45A for Duramax XP; 220671 at 45A for T45v) provides the final geometrical constraint on the plasma arc. Its converging-diverging bore profile:

• Accelerates​ the swirl-organized gas to supersonic velocity at the orifice exit

• Mechanically pins​ the arc column to a precise diameter at the exit plane

• Establishes a laminar flow core​ — a low-turbulence central gas column that thermally insulates the arc from the nozzle wall

The bore diameter is amperage-specific: 45A requires a wider orifice than 30A to accommodate the larger arc column without the arc striking the bore wall. This is why 45A uses 220941 (Duramax XP) or 220671 (T45v), while 30A uses 220480 (T45v legacy). Installing a 45A nozzle at 30A would create an overly wide arc with poor energy density; installing a 30A nozzle at 45A would cause immediate double arcing as the enlarged arc column strikes the narrow bore wall.

Double Arcing Mechanics In The Powermax45 Series

Double arcing occurs when the plasma arc — instead of passing cleanly through the nozzle orifice — attaches simultaneously to the nozzle tip and an intermediate surface (shield or retaining cap). In the Powermax45's air-cooled architecture, double arcing is particularly destructive because there is no water cooling to absorb the thermal spike. The failure sequence is:

1. Nozzle bore wear or swirl ring clogging disrupts the laminar core

2. Arc root wanders off the hafnium center

3. Arc strikes the nozzle bore wall → localized copper vaporization

4. Molten copper bridges the gap to the shield → full double arc

5. Torch body damage within seconds

This is why Hypertherm's operator manual explicitly warns: "Tighten the consumables only to finger-tight. Overtightening can cause the torch to misfire" . Beyond torque, operating beyond wear limits dramatically increases double arcing risk.

The Complete Consumable Cross-Reference Matrix: Two Platforms

Per Hypertherm's official documentation , here are the authoritative cross-references for both Powermax45 torch platforms:

A. Powermax45 XP — Duramax Lock Platform (Modern)

*220955 = deflector for unshielded cutting; 220953 = ohmic retaining cap for height sensing

Source: Hypertherm Powermax45 XP consumables page and Rapid Welding cross-reference

B. Legacy T45v Handheld Platform (Original Powermax45)

*220719 = ohmic retaining cap for height sensing

Source: Hypertherm Powermax45 product support page

⚠️ Universal constraints across both Powermax45 platforms:

• Platform incompatibility​ — T45v consumables (220669/220670/220671/220674/220713) are NOT​ compatible with Duramax Lock torches. Duramax XP consumables (220842/220857/220941/220818/220854) are NOT​ compatible with T45v torches. The thread geometry, O-ring placement, and electrode/seat dimensions are fundamentally divergent .

• Swirl ring is mandatory and amperage-specific​ — 220857 for Duramax XP (serves 30–45A drag, gouging, marking); 220947 for FineCut (Duramax XP); 220670 for T45v (serves 30–45A)

• Powermax45 is air-cooled​ — there is no "longer water tube" requirement (unlike MAXPRO200 extreme bevel). The torch relies entirely on compressed air cooling .

• Finger-tight only​ — "Overtightening can cause the torch to misfire" . This is a hard constraint from Hypertherm's operator manual .

• Power must be OFF​ before changing consumables

Sister-Part Divergence: Why Nozzle Bore Diameter Dictates Amperage And Process

Source: Hypertherm Powermax45 XP consumables page , T45v consumables page , and Rapid Welding cross-reference

The critical engineering insight: For the Duramax Lock platform, the 220857 swirl ring is shared across drag-cutting, gouging, and marking processes​ (26–45A) . Only FineCut uses a different swirl ring (220947) . This means:

• ✅ You can​ switch between drag-cutting and gouging by changing only the nozzle and shield — the electrode (220842) and swirl ring (220857) remain constant

• ❌ You cannot​ use a 45A drag nozzle (220941) for FineCut — FineCut requires the dedicated 220930 nozzle and 220947 swirl ring for the ultra-fine arc profile

• ❌ You cannot​ use a 30A T45v nozzle (220480) on a 45A process — the undersized bore causes immediate double arcing

Application Scenarios: Matching Stack To Fabrication Demand

Source: Hypertherm Powermax45 XP cut charts and consumables specification

HALANSM® Powermax45 Series: Verifiable Engineering Advantages

HALANSM® manufactures every component in the Powermax45 consumables series to Hypertherm's published specifications. The engineering facts:

1. Bore Geometry Replication To Micron Tolerance

Each nozzle (220941, 220930, 420419, 420415 for Duramax XP; 220671, 220480 for T45v) is machined to Hypertherm's converging-diverging bore specification to within micron tolerance. At 45A, any bore variance of 0.01–0.03mm disrupts the laminar gas core and triggers double arcing. HALANSM®'s CNC machining process holds the orifice profile, exit angle, and swirl ring mating interface to OEM dimensions, ensuring the plasma arc exits with identical velocity, focus, and trajectory as genuine Hypertherm parts.

2. Silver Cutting™ Mirror-Finish Internal Bore

The internal bore of every HALANSM® nozzle receives the proprietary Silver Cutting™​ mirror polish. This eliminates micro-scratches and tooling marks that would otherwise create arc attachment sites on the bore wall — the root cause of double arcing. The mirror finish reduces micro-turbulence in the gas flow, maintaining laminar core stability even at 45A where arc forces are at their maximum.

3. Hafnium Emitter Seat Precision (220842 / 220669 Electrodes)

The 220842 (Duramax XP) and 220669 (T45v) electrodes' hafnium inserts are pressed into the CuCrZr holder using a controlled-force process that ensures concentricity within 5 microns. This concentricity is critical: any offset of the hafnium button from the bore axis causes the arc root to attach asymmetrically, leading to uneven nozzle wear. HALANSM® validates every electrode against a go/no-go gauge that verifies hafnium centeredness before shipment. For the CopperPlus variant (220777), HALANSM® replicates the copper-zirconium alloy microstructure to extend service life on cuts of 12mm and under .

4. Swirl Ring Vane Geometry Verification (220857 / 220670 / 220947)

The 220857 (Duramax XP drag/gouge/mark), 220670 (T45v), and 220947 (FineCut) swirl rings' internal vanes are the most geometrically sensitive components in the stack — they determine the vortex characteristics that center the arc. HALANSM® machines each swirl ring's vanes to OEM vane angle and depth specifications, then flow-tests every unit with compressed air to verify the vortex pattern matches Hypertherm's reference. This verification eliminates arc attachment drift caused by swirl/vane mismatch — the #1 cause of premature nozzle failure in the Powermax45 series.

5. CuCrZr Microstructure Control

All shields (220818, 220931, 420480, 420414 for Duramax XP; 220674, 220569 for T45v) and nozzles are manufactured from high-purity copper-chromium-zirconium (CuCrZr) alloy. HALANSM® controls the grain structure through precision heat treatment, ensuring dimensional stability under the thermal gradient of 45A cutting. This microstructural discipline prevents the "bell-mouthing" deformation that plagues inferior nozzles and extends shield service life.

6. Thread And O-Ring Groove Integrity

The retaining caps (220854, 220713) and shield threaded interfaces are high-stress zones. HALANSM® rolls threads post-machining to ensure maximum strength and prevents seizure during high-heat cycling. O-ring grooves are machined to exact tolerances to guarantee leak-proof seals — a gas leak at the swirl ring interface causes arc instability and rapid consumable failure. Critically, HALANSM® validates the thread pitch and O-ring placement against the exact torch platform​ (Duramax XP vs T45v) to guarantee finger-tight seating without galling.

Wear Diagnostics Across The Powermax45 Series

The HALANSM® advantage: By holding bore geometry and Silver Cutting™ finish to OEM specification, operators maximize consumable service life and minimize cost-per-cut across the entire 30–45A range. At 45A, Hypertherm specifies 50% duty cycle (5 minutes arc-on / 10 minutes) — proper consumable maintenance ensures you achieve the full rated duty cycle without torch faults .

Mandatory Installation Protocol For All Stacks

Per Hypertherm's operator manual , the non-negotiable sequence:

1. Power OFF​ — Ensure the power supply is completely de-energized before changing consumables

2. Remove the retaining cap​ (220854 for Duramax XP; 220713 for T45v) — unscrew by hand only

3. Remove the shield/nozzle​ — separate the shield (220818 for XP 45A drag; 220674 for T45v 45A) from the nozzle (220941 for XP; 220671 for T45v)

4. Remove the electrode​ (220842 for Duramax XP; 220669 for T45v)

5. Remove the swirl ring​ (220857 for Duramax XP drag/gouge/mark; 220947 for XP FineCut; 220670 for T45v) — handle with care; clean O-ring grooves

6. Inspect and clean​ — verify swirl ring metering holes are clear, O-rings are intact, electrode hafnium pit depth is within limits (<1.0mm)

7. Install the swirl ring​ (220857/220947/220670) — add a tiny amount of O-ring lubricant to the outside O-rings

8. Install the electrode​ (220842/220777 for Duramax XP; 220669 for T45v) — seat fully into the torch body

9. Install the nozzle​ (220941 for XP 45A drag; 220930 for XP FineCut; 220671 for T45v 45A)

10. Install the shield​ (220818 for XP 45A drag; 220931 for XP FineCut hand; 220674 for T45v 45A)

11. Thread on the retaining cap​ (220854 for Duramax XP; 220713 for T45v) — finger-tight ONLY​

12. For ohmic height sensing​ — substitute retaining cap 220953 (Duramax XP) or 220719 (T45v) when a compatible torch height controller is installed

⚠️ Six critical incompatibilities to never violate:

• ❌ Platform mixing​ — Duramax XP consumables (220842/220857/220941/220818/220854) are NOT​ compatible with T45v torches, and vice versa (220669/220670/220671/220674/220713). The thread geometry and O-ring placement are fundamentally divergent.

• ❌ Swirl ring substitution​ — 220857 (XP drag/gouge/mark) and 220947 (XP FineCut) are NOT interchangeable. Using 220857 in a FineCut stack disrupts the ultra-fine vortex needed for precision cutting.

• ❌ Over-amperage nozzle​ — Never install a 30A nozzle (220480 T45v) when cutting at 45A. The arc will double-arc within seconds.

• ❌ Process mismatch​ — Never use a drag-cutting nozzle (220941/220671) for gouging. Gouging requires the straight-bore nozzles (420419 for XP Max Control; 420415 for XP Precision; 220672 for T45v) .

• ❌ Over-tightening​ — "Overtightening can cause the torch to misfire" . Finger-tight is the maximum allowable torque.

• ❌ Powermax45 is air-cooled​ — There is no water tube requirement. Do NOT attempt to install water-cooled consumables from MAXPRO200 or other liquid-cooled systems.

Frequently Asked Questions (FAQ)

Q: Can I use Duramax XP consumables (220842/220857/220941) on my original T45v torch?

A:​ No. The T45v and Duramax Lock torches have fundamentally different thread geometries, O-ring placements, and electrode/seat dimensions. The Duramax XP consumables (220842 electrode, 220857 swirl ring, 220941 nozzle, 220818 shield, 220854 retaining cap) will not physically seat correctly in a T45v torch body . You must use the correct T45v consumables: 220669 electrode, 220670 swirl ring, 220671 nozzle, 220674 shield, 220713 retaining cap (45A) . If you want to transition to the Duramax platform, you need to purchase a Duramax Lock torch conversion — or upgrade to the Powermax45 SYNC cartridge system .

Q: My Powermax45 cuts at 45A, but the cut quality is poor. Could the consumables be mismatched?

A:​ Absolutely. Common mistakes include: (1) Using a 30A nozzle (220480 T45v) at 45A — causes double arcing and wide kerf; (2) Using a drag-cutting nozzle for gouging — the constrained bore cannot handle the un-constricted gouging arc; (3) Damaged or clogged swirl ring (220857/220670) — disrupts vortex symmetry, causing arc wander; (4) Hafnium pit depth exceeding 1.0mm — replace the electrode immediately. Always verify you are using the exact stack for your amperage and process .

Q: Should I use the 220777 CopperPlus electrode instead of 220842?

A:​ The 220777 CopperPlus electrode is a direct replacement for the 220842 in all Duramax XP applications (drag-cutting, gouging, marking) . Hypertherm recommends CopperPlus "for longer consumable life when cutting metal 1/2 inch (12 mm) and under" . For thicker material or maximum power density at 45A, the standard 220842 may perform better. HALANSM® manufactures both 220842 and 220777 to OEM specification, giving you the choice based on your typical cutting thickness.

Q: How long should a set of consumables last at 45A?

A:​ Consumable life depends on numerous factors: gas quality (clean, dry, oil-free air per Hypertherm spec ), piercing frequency, material thickness, and duty cycle. At 45A, the Powermax45 operates at 50% duty cycle (5 minutes arc-on per 10 minutes) . Under normal drag-cutting conditions on mild steel 6–12mm, a well-maintained set of consumables (220842 electrode, 220857 swirl ring, 220854 cap, 220818 shield, 220941 nozzle) should deliver hundreds of arc starts. The swirl ring itself can last through many electrode/nozzle change-outs with careful handling. The electrode is typically the first to wear — replace when the hafnium pit exceeds 1.0mm.

Q: Can I use the Powermax45 for gouging, and which consumables do I need?

A:​ Yes. The Powermax45 supports two gouging processes :

• Max Control Gouging (26–45A): 420480 shield · 220854 cap · 420419 nozzle · 220842 electrode · 220857 swirl ring. Ideal for shallow gouge profiles and light washing applications.

• Precision Gouging (10–25A): 420414 shield · 220854 cap · 420415 nozzle · 220842 electrode · 220857 swirl ring. Ideal for spot weld removal and precise, low-amperage metal removal.

Note: At 45A, Hypertherm states the Max Control consumables are the correct choice — the Max Removal consumables (available on higher-amperage systems) do not offer an advantage at 45A .

Q: Is the Powermax45 SYNC cartridge system better than the multi-piece consumables?

A:​ The Powermax45 SYNC represents Hypertherm's modern cartridge platform, offering:

• Single-piece cartridge (428925/428926/428927/428928/428932/428933) — eliminates stack-up errors

• Built-in RFID chip for automatic amperage and gas pressure adjustment

• Up to 5× longer consumable life vs. higher-amperage competitors

• Color-coded identification (yellow band for FineCut)

However, the multi-piece consumable series (which this article addresses) remains fully supported by Hypertherm with ongoing parts availability . For existing Powermax45 XP owners with Duramax Lock torches, the multi-piece consumables continue to deliver reliable performance. The SYNC upgrade requires a new power supply and torch — a significant capital investment. HALANSM® supports both platforms, manufacturing the multi-piece consumables to OEM specification for continued service of legacy systems.

The Bottom Line: Why The HALANSM® Powermax45 Series Is Engineered For The Physics

The Powermax45 consumables series represents a modular, air-cooled plasma cutting ecosystem spanning 30–45A across multiple processes — drag-cutting, FineCut, gouging (Max Control and Precision), and marking. Critically, the series exists in two parallel architectures:

1. Duramax Lock platform​ (Powermax45 XP) — built around the 220857 swirl ring and 220842 electrode, with the 220941 nozzle for 45A drag-cutting

2. T45v legacy platform​ (original Powermax45) — built around the 220670 swirl ring and 220669 electrode, with the 220671 nozzle for 45A drag-cutting

At 45A — the Powermax45's maximum output — the system operates at 50% duty cycle (5 minutes arc-on per 10 minutes) . In this regime, the margin for error in bore geometry, swirl ring vane angle, hafnium concentricity, and surface finish is narrow. Generic consumables — with inconsistent orifice dimensions, unverified swirl vane geometry, or inadequate bore finishing — fail rapidly, triggering double arcing and torch damage.

HALANSM®'s engineering philosophy for the Powermax45 series is rooted in replication-plus-enhancement:

• Replicate​ Hypertherm's OEM bore geometries to micron tolerance across both platforms (Duramax XP and T45v)

• Enhance​ internal bores with Silver Cutting™ mirror finishing to eliminate double-arc initiation sites

• Control​ CuCrZr microstructural integrity for thermal shock resistance at 45A

• Verify​ 220857/220670/220947 swirl ring vane geometry with compressed-air flow testing against Hypertherm's reference vortex pattern

• Validate​ 220842/220669 hafnium emitter concentricity to within 5 microns

• Ensure​ thread integrity and O-ring groove precision to prevent gas path distortion and enable correct finger-tight seating

The result is a consumable series that delivers OEM-equivalent cut quality and service life, at a fraction of genuine Hypertherm cost — making HALANSM® the economically rational choice for fabricators operating Powermax45 systems, whether in handheld drag-cutting, CNC mechanized production, gouging, or FineCut applications.

Forward compatibility note: For Powermax45 XP owners seeking to modernize, Hypertherm's sanctioned Powermax45 SYNC cartridge platform​ transitions the system to single-piece SmartSYNC cartridges with RFID technology. HALANSM® continues to manufacture the full multi-piece consumable series (220842, 220857, 220941, 220818, 220854 and all sister parts) to the same engineering standard, providing sustained support for legacy systems worldwide.

In 45A plasma cutting, consumables aren't just wear items — they are the components that determine whether your cut is clean or scrapped.​ Choose HALANSM® Powermax45 Consumables Series: engineered for the physics, priced for the fabricator.
