In the demanding world of heavy fabrication, where piercing thick steel plates is routine, the reliability of your plasma consumables is non-negotiable. The HALANSM® 260A series represents the pinnacle of precision engineering for the Hypertherm HPR260XD platform. This comprehensive suite of replacement parts is meticulously designed to meet the rigorous thermal demands of thick plate cutting while delivering substantial cost savings over OEM alternatives.
Engineering Precision for Demanding Applications
Creating clean, vertical cuts on thick materials or precise angled bevels requires exacting tolerances across the entire plasma torch stack. The HALANSM® 260A series utilizes premium materials and advanced manufacturing processes to ensure unwavering arc stability. Whether you are running high-volume production or tackling complex structural steel, these components provide the necessary rigidity and gas flow dynamics to eliminate dross and ensure weld-ready edges.
Application & Equipment Compatibility Matrix
This series is engineered to integrate seamlessly with the HPR260XD, offering fabricators the flexibility to optimize their existing machinery for diverse production needs.
Application Type | Primary Use Case | Compatible Torch Systems |
|---|---|---|
260A Standard | Thick Mild Steel Straight Cutting | HPR260XD |
260A Bevel | Angled Weld Preparation | HPR260XD |

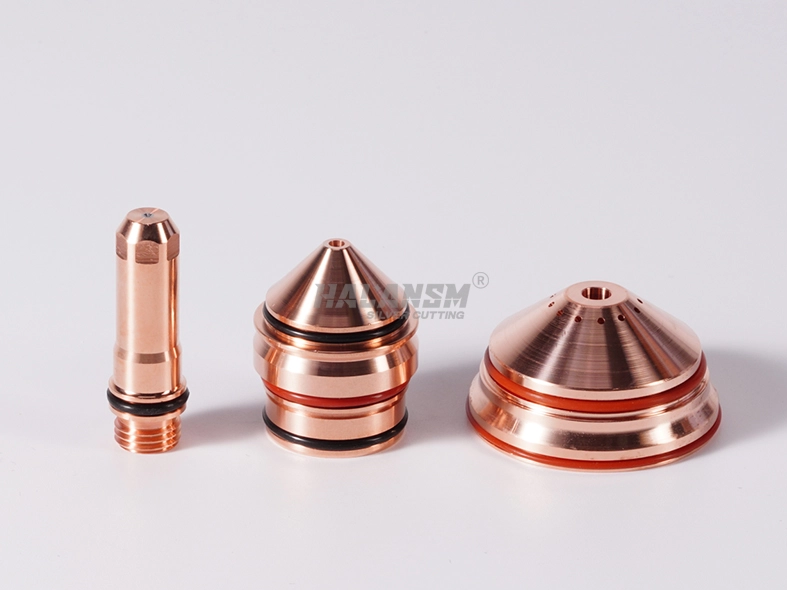

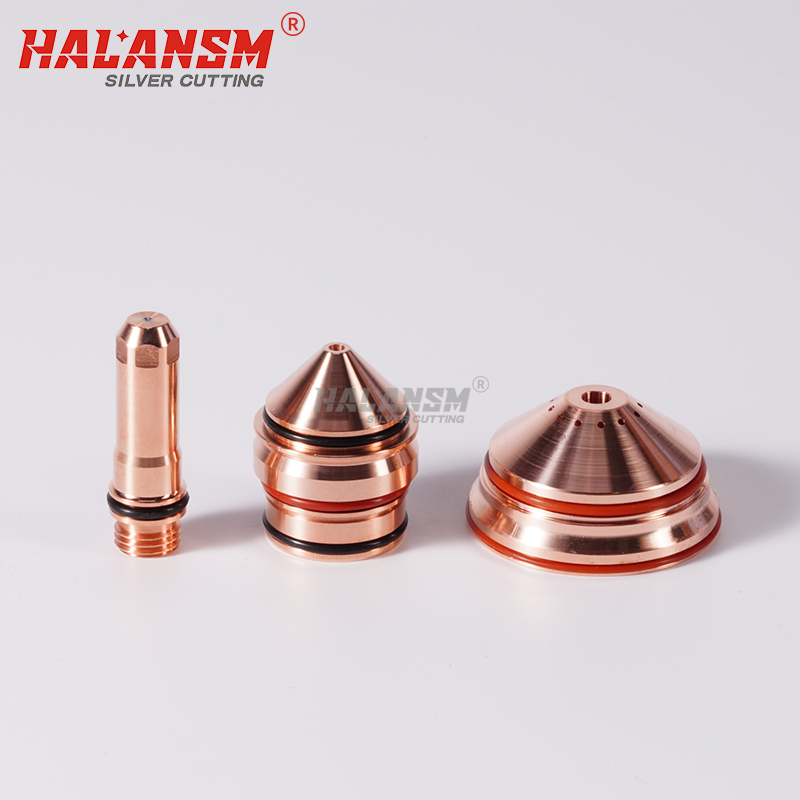

Complete Consumable Stack Specifications
Understanding that a single weak link compromises the entire system, HALANSM® provides fully compatible drop-in replacements for every component in the torch head.
Component Role | HALANSM® Model | OEM Cross Reference | Primary Function |
|---|---|---|---|
Outer Shield Cap | Compatible Part | 220637 | Secures the stack and provides final gas wash for edge quality. |
Inner Shield | Compatible Part | 220764 (Std) / 220741 (Bevel) | Protects the nozzle from spatter and assists in focusing the plasma arc. |
Nozzle Retaining Cap | Compatible Part | 220760 | Applies precise mechanical force to hold the consumable stack securely in place. |
260A Nozzle | Compatible Part | 220439 (Std) / 220542 (Bevel) | Focuses the plasma arc to pierce and cut through steel. |
Swirl Ring | Compatible Part | 220436 | Generates the critical vortex gas flow that cools the nozzle and centers the arc. |

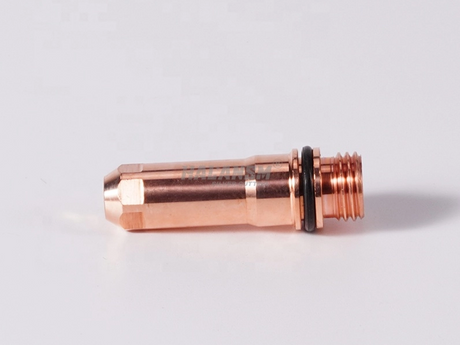

Electrode | Compatible Part | 220435 (Std) / 220541 (Bevel) | Generates the primary plasma arc; houses the hafnium insert. |
Water Tube | Compatible Part | 220668 (Std) / 220571 (Bevel) | Delivers critical internal water cooling to prevent torch meltdown. |
Frequently Asked Questions (FAQ)
Q: Does HALANSM® offer a complete kit for upgrading my HPR260XD to 260A?
A: Yes. HALANSM® provides fully assembled 260A Mild Steel and Bevel cutting kits. You can purchase the entire consumable stack together, ensuring perfect alignment and eliminating the guesswork in part selection.
Q: What materials are used in the HALANSM® 220435 Electrode?
A: Our 260A electrodes feature a high-purity copper body with a precisely centered hafnium insert, designed to withstand the intense heat of 260-amp operations while maintaining arc stability.
Q: Can these 260A parts be mixed and matched with older OEM consumables?
A: HALANSM® 260A series parts are designed to be fully backward compatible with original Hypertherm HPR260XD systems. However, for optimal cut quality and safety, we recommend replacing the entire stack (Nozzle, Swirl Ring, Electrode) simultaneously.
