Unleashing the Full Potential of Your HT2000 with HyPro2000 Technology
The Hypertherm HT2000 has long been a staple in heavy-duty fabrication shops worldwide. However, as production demands increase, simply maintaining the status quo is no longer enough. The HyPro2000 retrofit torch system was engineered to breathe new life into existing HT2000 power supplies, offering a significant boost in cutting speed—up to 50% faster—and extending consumable life by as much as 75% compared to standard configurations .
HALANSM® provides a comprehensive suite of compatible replacement parts designed to integrate seamlessly with your HyPro2000 upgrade. Our advanced manufacturing processes, including our proprietary Silver Cutting™ surface treatment, ensure that your plasma torch operates at peak efficiency, delivering clean, precise cuts every time.
Application & Compatibility Matrix
The beauty of the HyPro2000 system lies in its versatility. Whether you are cutting thin gauge sheet metal or heavy structural beams, there is a specific consumable stack optimized for your task. Below is a breakdown of common applications and their corresponding amperage settings:
Amperage & Process | Ideal Application Scenarios | Recommended Fabrication Tasks |
|---|---|---|
50A (Oxygen - Mild Steel) | General fabrication, shipbuilding, pipeline. | Superior edge quality and faster piercing on medium-thickness mild steel. |
130A (Air / Nitrogen) | Automotive repair,HVAC, stainless steel fabrication. | High-precision cutting on non-ferrous metals and intricate patterns. |
200A (Oxygen - Heavy Structural) | Heavy machinery manufacturing, demolition. | Rapid processing of thick plate steel with minimal dross. |

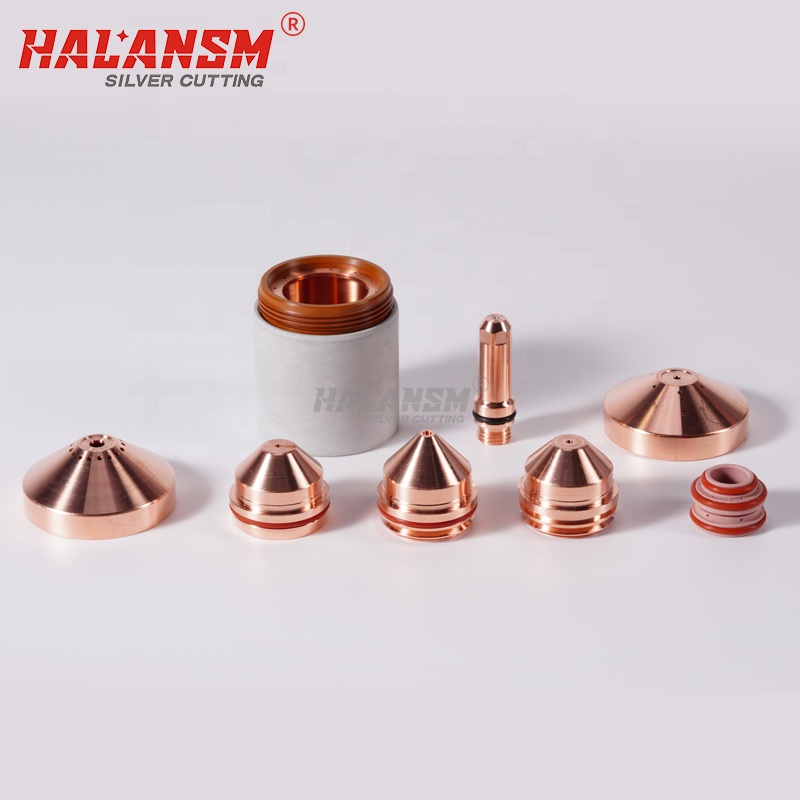

Complete Consumable Stack Recommendations
Maintaining optimal cut quality requires replacing the entire consumable stack simultaneously. HALANSM® provides all the necessary components to keep your HyPro2000 running at peak efficiency.
Component | HALANSM® Model | OEM Cross Reference | Primary Function |
|---|---|---|---|
Electrode | Compatible Part | 220528 (50A O₂) / 220487 (130A Air) / 020415 (130A H35) | Generates the primary plasma arc; features high-purity hafnium insert. |
Swirl Ring | Compatible Part | 220529 (50A/130A) / 220834 (200A) | Creates the vortex gas flow necessary to cool the nozzle and center the arc. |
Nozzle | Compatible Part | 220890 (50A) / 220893 (130A) / 220831 (200A) | Focuses the plasma stream for piercing and cutting through thick plate. |
Shield Cap | Compatible Part | 220932 (50A) / 220491 (130A) / 220832 (200A) | Shields the nozzle from spatter and provides final gas wash for clean edges. |
Retaining Cap | Compatible Part | 220936 (Shared) | Secures the nozzle and swirl ring assembly within the torch head. |
Water Tube | Compatible Part | 220521 | Delivers high-pressure internal water cooling to prevent torch meltdown. |
Frequently Asked Questions (FAQ)
Q: Is the HALANSM® 220529 Swirl Ring difficult to install?
A: Not at all. The HALANSM® 220529 is a true drop-in replacement. It has been manufactured to match the exact dimensional specifications of the OEM part, allowing for a straightforward "bolt-on" installation.
Q: Can these parts handle gases other than Oxygen, like Nitrogen or Air?
A: Yes. While the 220529 is often associated with Oxygen cutting, HALANSM® produces a full range of consumables for Air and Nitrogen applications on the HyPro2000 platform. Ensure you select the correct orifice size for your specific gas mixture.
Q: How does the Silver Cutting™ finish benefit the cutting process?
A: The Silver Cutting™ surface treatment enhances thermal conductivity and resists oxidation. This results in a more stable plasma arc during initial ignition and throughout the cutting cycle, which directly translates to cleaner edges and longer consumable life.
