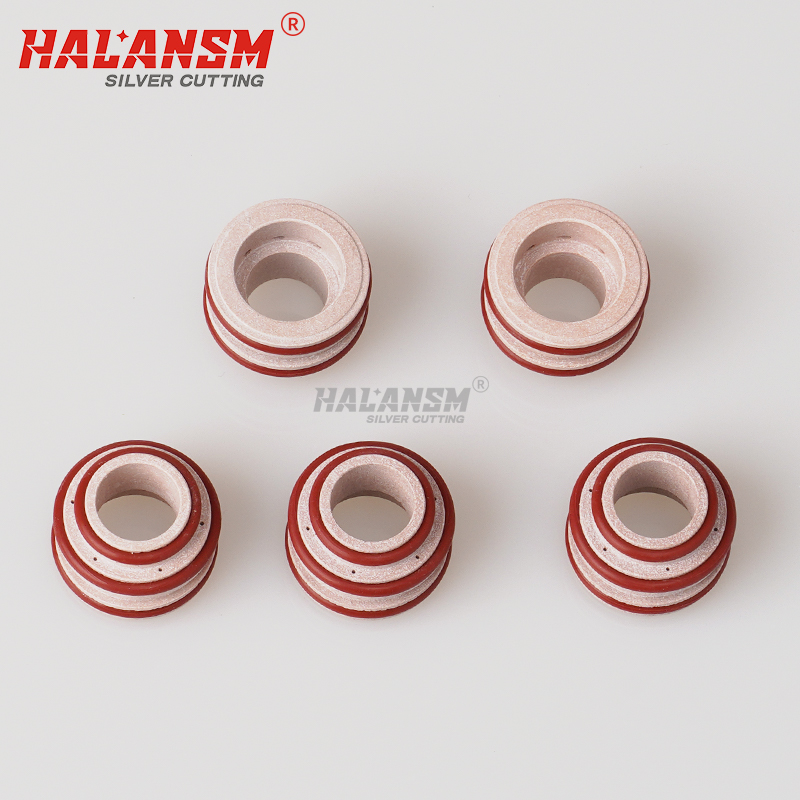

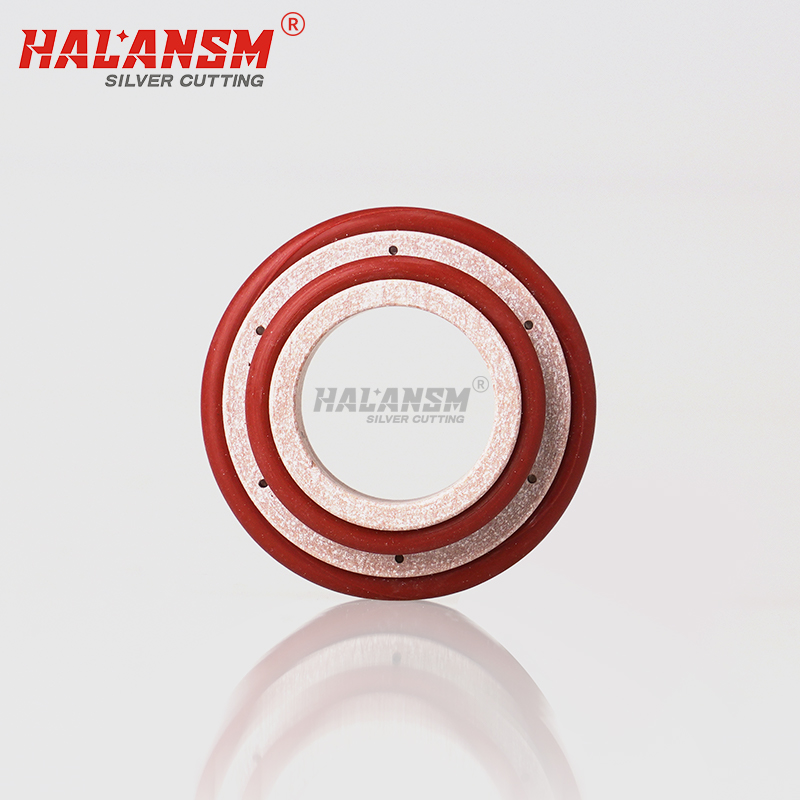

The HALANSM® 220834 is a high-performance swirl ring precision-machined for the 200A Oxygen stack on Hypertherm HyPro2000 systems. It features a specialized ceramic-plastic composite body that guarantees consistent vortex gas flow, critical for stabilizing the plasma arc at maximum amperage. By maintaining perfect alignment between the electrode and nozzle, the 220834 minimizes double arcing and extends the life of your most expensive consumables, reducing overall operating costs on heavy-duty production cuts.
220834
HALANSM®
HLN-220834
HALANSM® 220834 Swirl Ring: Engineered for 200A Oxygen Performance
When operating your Hypertherm HyPro2000 at 200A on oxygen, the swirl ring is arguably the most critical component for cut quality. The HALANSM® 220834 is designed to meet or exceed OEM specifications, providing the exact dimensional stability required for high-amperage plasma arcs.
Key Features:
Oxygen-Specific Flow Dynamics: Unlike 130A swirl rings, the 220834 features a refined internal geometry that induces the precise vortex needed to constrict the arc when using oxygen plasma. This chemical exothermic reaction requires a perfectly balanced gas flow to prevent blowback and ensure a square, dross-free cut edge on thick mild steel.
Arc Root Stability: The precision-molded ceramic body ensures perfect centering of the electrode within the nozzle. This concentricity prevents the plasma arc from "wandering," which is essential for piercing thick plate and maintaining cut speed on automated table systems.
High Thermal Resistance: The advanced composite material is engineered to withstand extreme thermal cycling without warping or cracking. This structural integrity prevents gas bypass, which can cause catastrophic failures in the electrode and nozzle.
Extended Service Life: While the 200A process is inherently more demanding, the HALANSM® 220834's superior material composition resists thermal breakdown longer than standard alternatives, providing more cuts per set and reducing maintenance downtime.
200A Oxygen Consumable Stack Reference:
For optimal performance, the 220834 is used exclusively in the following configuration:
Electrode: 220937 (SilverPlus)
Swirl Ring: 220834 (HALANSM®)
Nozzle: 220831 (Oxygen)
Shield Cap: 220832
Retaining Cap: 220936
Note: This 220834 swirl ring is specifically manufactured by HALANSM® as a compatible replacement for Hypertherm® systems. It is intended for the 200A Oxygen process only. Using this part in an Air or Nitrogen stack (which typically use part 220488 at lower amps) will result in poor cut quality and potential damage to your torch. Always replace the swirl ring whenever changing the nozzle or electrode to maintain peak performance.
