420828 Oxygen Bevel Nozzle Engineering: How HALANSM® Powers MAXPRO200 130A Extreme Bevel Cutting At 66.5° Torch Tilt

The 420828 In Context: An Oxygen-Specific Arc Constrictor For Extreme Geometry

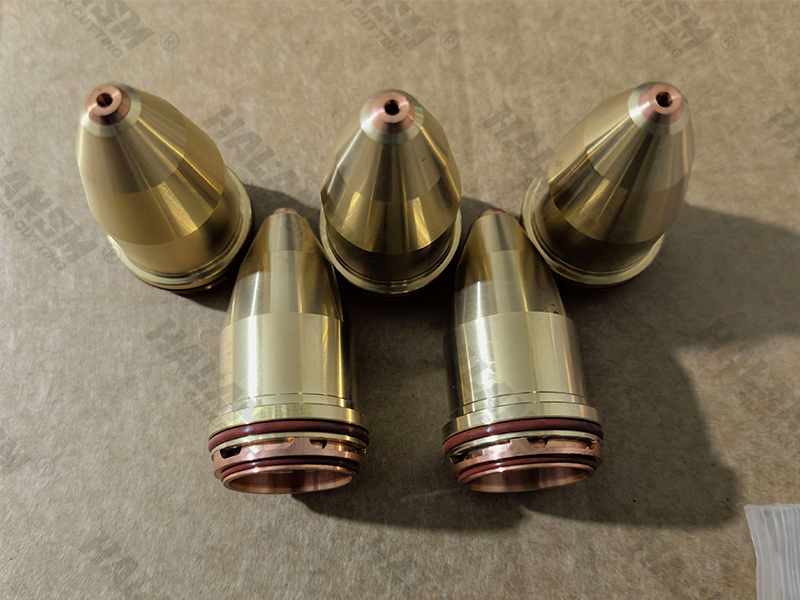

The 420828 is a 130A oxygen plasma bevel nozzle in Hypertherm's Extreme Bevel consumable family for the MAXPRO200 air and oxygen plasma cutting systems . Unlike the 130A air​ extreme bevel nozzle (420829), the 420828 is specifically calibrated for the oxygen-mild steel reaction — a chemically exothermic process that demands a distinct internal bore geometry, gas wash characteristic, and thermal management profile .

What makes the 420828 technically unique is its role within the mandatory six-piece extreme bevel stack. Hypertherm's official instruction manual states unequivocally: "The standard MAXPRO200 water tube is not compatible with extreme bevel consumables. You must exchange it with the longer water tube (420823) prior to using extreme bevel consumables" . This requirement signals that extreme bevel cutting fundamentally re-architects the thermal and electrical path inside the torch head — and the 420828 nozzle is the component that must withstand the most aggressive conditions in that re-architected path.

The Physics Of Oxygen Plasma Nozzle Constriction

To understand why the 420828 matters, we must examine what happens at the molecular level during oxygen plasma cutting of mild steel.

The Exothermic Oxygen Reaction

When oxygen is used as the plasma gas on mild steel, the gas exiting the nozzle orifice does more than just mechanically sever the metal — it actively participates in a chemical reaction. The iron in the steel reacts with the oxygen plasma to form iron oxide (FeO, Fe₂O₃, Fe₃O₄), releasing additional heat that augments the plasma arc's cutting energy . This exothermic reaction is why O₂ cutting achieves faster cut speeds and cleaner edges than air cutting on mild steel — but it also means the nozzle must manage a far more violent thermal environment at the orifice.

Arc Constriction And The Laminar Core

The nozzle's primary function is to constrict the plasma arc into a coherent, high-velocity jet. The 420828's internal bore is precision-machined to a specific converging-diverging profile that:

• Accelerates the ionized gas​ to supersonic velocities at the orifice exit

• Mechanically pins the arc root​ to the center of the hafnium emitter in the 420824 electrode

• Establishes a laminar gas core​ that acts as a thermal insulator between the ~30,000°F arc column and the copper nozzle wall

Any disruption to this laminar core — caused by bore surface imperfections, dimensional variance, or swirl ring mismatch — results in double arcing: the plasma arc attaches to the sidewall of the nozzle instead of passing cleanly through the orifice. Double arcing destroys nozzles within minutes .

Why Bevel Geometry Amplifies The Challenge

When the torch tilts to extreme angles (up to 66.5° per Hypertherm's specification ), the gravitational and electromagnetic symmetry of the plasma arc is fundamentally altered. The arc wants to travel vertically; the tilted nozzle forces it to exit at an angle. This asymmetry places uneven thermal and electromagnetic stress on the nozzle bore. A standard nozzle in this regime would fail rapidly. The 420828's geometry is specifically engineered so that the arc's attachment point on the hafnium emitter (in the paired 420824 electrode) remains centered despite the tilted exit trajectory .

420828 vs. 420829: The Air/Oxygen Divergence

A common point of technical confusion is why two seemingly similar 130A extreme bevel nozzles exist. The divergence is rooted in plasma physics:

Critical engineering note: The 420828 and 420829 are NOT interchangeable. Installing a 420829 in an O₂ process will result in loss of cut speed, excessive dross adhesion, and accelerated nozzle wear. The swirl ring must also be switched (220529 for O₂; 220488 for air) — these components are engineered as a coupled system .

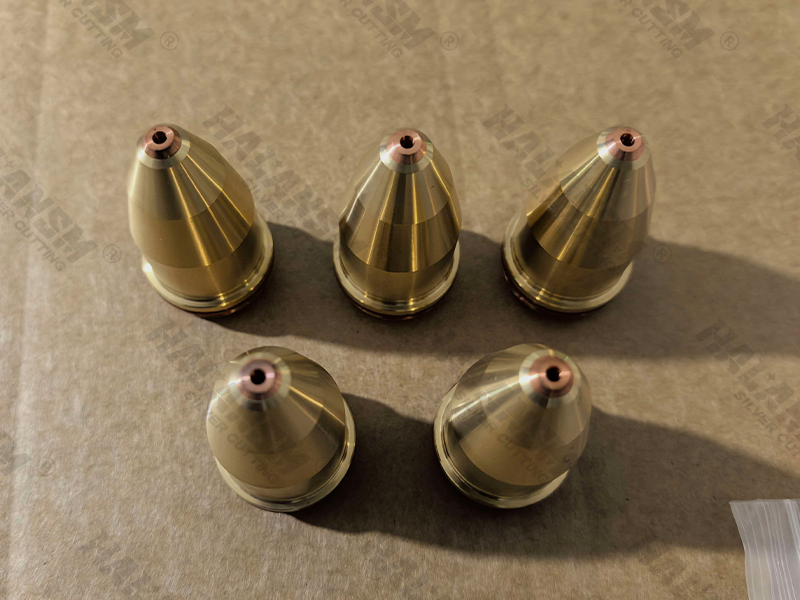

The 130A O₂ Extreme Bevel Stack: Full Compatibility Matrix

Per Hypertherm's official specification sheet and MAXPRO200 consumables page , the 420828 operates in the following mandatory 130A O₂ configuration:

Source: Hypertherm Extreme Bevel Consumables Specification Sheet (Revision 1898040, 11/2020) and Hypertherm MAXPRO200 consumables page

Application Scenarios: Where 420828-Driven O₂ Bevel Cutting Excels

Hypertherm's official documentation confirms the extreme bevel family (including the 420828) is designed for :

• Steep Mechanized Beveling​ — Up to 66.5° torch tilt enables single-pass bevels that would require multiple operations with conventional plasma or oxyfuel

• Tube & Pipe Cutting​ — The extended conical shield (420735) provides accessibility in hard-to-reach curved surfaces; O₂ process delivers clean, weld-ready bevels on mild steel pipe

• Structural Steel Work​ — Beam flanges and areas with limited clearance become reachable; O₂ chemistry provides faster cutting speeds vs. air

• Pressure Vessel Construction​ — The O₂ process delivers a smaller heat-affected zone (HAZ) than oxyfuel, minimizing high-cost secondary operations

• Handheld Cutting​ — Operators gain better visibility and access to limited-clearance areas; O₂ bevel reduces dross and rework

• Robotic & Automated Cutting​ — MAXPRO200's 100% duty cycle at 130A enables lights-out bevel production with consistent O₂ chemistry

Why Oxygen Over Air For These Applications?

Hypertherm's own comparison data shows O₂ plasma cutting delivers :

• Faster cut speeds​ than oxyfuel and air plasma for maximized productivity

• Less dross​ and a smaller heat-affected zone than oxyfuel, minimizing secondary operations

• Improved safety​ over oxyfuel (no highly flammable acetylene gas)

HALANSM® 420828: Technical Advantages Over Generic Alternatives

While Hypertherm's genuine 420828 sets the benchmark, HALANSM®'s engineering approach targets the specific failure modes that plague generic aftermarket bevel nozzles:

1. Bore Geometry Replication To Micron Tolerance

The 420828's converging-diverging bore profile is the single most critical dimension in the entire stack. Generic nozzles often exhibit variance of 0.01–0.03mm in orifice diameter — enough to disrupt the laminar gas core and trigger double arcing. HALANSM® machines each 420828 bore to Hypertherm's published specification, ensuring the plasma arc exits the orifice with identical velocity, focus, and angular trajectory as the genuine OEM part. This geometric fidelity is what enables consistent 66.5° bevel angles across thousands of cut cycles .

2. Silver Cutting™ Internal Bore Finishing

The interior surface of the 420828 bore — where the plasma arc makes its closest approach to the copper wall — receives HALANSM®'s proprietary Silver Cutting™ mirror finish. This ultra-polishing process eliminates micro-scratches and tooling marks that would otherwise:

• Create arc attachment sites on the bore wall (double arcing)

• Disrupt the laminar gas flow, causing arc wander

• Accelerate erosive wear at the orifice exit

The result is a more stable arc column, fewer double-arcing events, and measurably longer nozzle service life compared to standard aftermarket alternatives.

3. Copper-Chromium-Zirconium Alloy Microstructure Control

The 420828 is manufactured from a high-purity copper-chromium-zirconium (CuCrZr) alloy, selected for its combination of high thermal conductivity and resistance to recrystallization under thermal shock . HALANSM® controls the grain structure through precision heat treatment, ensuring dimensional stability even after repeated exposure to the intense heat of O₂ plasma piercing. This microstructural discipline prevents the "bell-mouthing" deformation of the orifice that plagues inferior nozzles.

4. Two-Piece Design Integrity

Hypertherm's specification notes the extreme bevel nozzle features a "two-piece design for maximum cooling and long-lasting performance" . The 420828's two-piece construction (inner insert + outer body) creates a dedicated coolant channel that draws heat directly from the orifice region. HALANSM® replicates the interfacial tolerances of this two-piece assembly to micron accuracy, ensuring optimal heat transfer from the inner insert to the outer body — critical because O₂ cutting generates more exothermic heat than air cutting .

5. Swirl Ring Interface Verification

The 420828 must mate perfectly with the 220529 swirl ring . HALANSM® verifies every 420828 nozzle against the 220529's gas vortex output characteristics, ensuring the swirl-induced centripetal force centers the arc root on the hafnium emitter in the paired 420824 electrode. This verification eliminates the #1 cause of extreme bevel nozzle failure: arc attachment drift caused by nozzle/swirl mismatch .

6. Extended Conical Shield Compatibility

The 420828 operates exclusively with the extended conical shield (420735) . This shield's extended length changes the torch-pivot length by >100% . HALANSM®'s 420828 is dimensionally verified to maintain the correct standoff distance and gas wash characteristics when paired with the 420735 shield, ensuring proper cut height and edge quality at maximum torch tilt .

Nozzle Wear: Diagnostics For The 420828

Understanding wear patterns is essential for maximizing 420828 service life. Based on plasma nozzle wear mechanics:

The HALANSM® advantage: Because HALANSM® holds bore geometry and Silver Cutting™ finish to OEM specification, operators consistently achieve the "normal wear" pattern even at 45°–66.5° torch tilt — maximizing nozzle service life and minimizing cost-per-bevel-cut.

Installation & Stack Replacement Protocol

Per Hypertherm's instruction manual , the mandatory sequence when installing the 420828 for O₂ extreme bevel cutting:

1. Remove​ standard water tube (220521 or equivalent) — "The standard MAXPRO200 water tube is not compatible with extreme bevel consumables"

2. Install​ extended water tube 420823​ (mandatory — standard tube will cause nozzle overheating)

3. Install​ swirl ring 220529​ (O₂-specific; do NOT use 220488 air swirl ring)

4. Install​ electrode 420824

5. Install​ nozzle 420828​ (O₂-specific; do NOT use 420829 air nozzle)

6. Install​ extended conical shield 420735

7. Secure​ with retaining cap 220936

⚠️ Three critical incompatibilities to never violate:

• Standard water tube (220521) → MUST be replaced with 420823

• Air swirl ring (220488) → MUST use O₂ swirl ring 220529

• Air nozzle (420829) → MUST use O₂ nozzle 420828

Violating any of these will result in rapid consumable failure and potential torch damage.

The Bottom Line: Why 420828 Is The Technical Gatekeeper Of O₂ Extreme Bevel

The HALANSM® 420828 oxygen bevel nozzle is where plasma physics meets extreme geometry under the most thermally aggressive cutting process available on the MAXPRO200 — oxygen plasma at up to 66.5° torch tilt. In this regime, the margin for error in bore geometry, surface finish, and microstructural integrity approaches zero. Generic nozzles — with inconsistent orifice dimensions, unverified swirl ring mating, or inadequate bore finishing — fail rapidly, triggering double arcing that can destroy not just the nozzle but the entire consumable stack.

HALANSM®'s engineering philosophy for the 420828 is rooted in replication-plus-enhancement:

• Replicate​ Hypertherm's OEM bore geometry to micron tolerance

• Enhance​ the internal bore with Silver Cutting™ mirror finishing

• Control​ CuCrZr microstructural integrity for thermal shock resistance

• Verify​ swirl ring (220529) and electrode (420824) mating compatibility

• Validate​ two-piece cooling assembly interfacial tolerances

The result is a nozzle that delivers OEM-equivalent cut quality and service life at a fraction of genuine Hypertherm cost — making the 420828 the economically rational choice for fabricators running O₂ extreme bevel operations on MAXPRO200 systems.

In O₂ extreme bevel cutting, the nozzle isn't just a consumable — it's the component that determines whether your 66.5° bevel is weld-ready or scrap.​ Choose HALANSM® 420828: engineered for the physics, priced for the fabricator.
