Solving Excessive Dross And Erratic Cutting: Why Your HPR260XD Needs The 220757 Shield

In high-pressure plasma cutting environments, the smallest component often dictates the overall quality of the finished part. The HALANSM® 220757 Shield​ is not just a replacement part; it is the critical interface that protects your electrode and nozzle while ensuring optimal gas flow dynamics for the HPR260XD system.

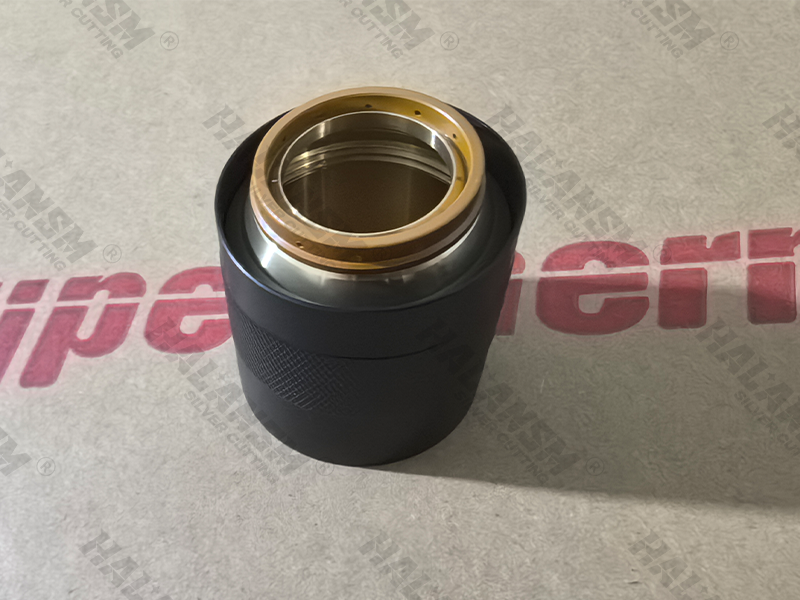

High-resolution angled view of the HALANSM 220757 inner shield with gold-plated retaining ring, designed for Hypertherm HPR260XD 200A mild steel cutting applications.
Top-down close-up of the HALANSM 220757 shield showcasing the precision-machined gas injection holes and OEM-spec concentricity for stable arc geometry.

Identifying the Problem:

Many fabricators encounter frustrating issues such as excessive dross adherence, inconsistent pierce times, or a shortened consumable life when operating their HPR260XD at the 200A level. Often, these problems are not with the machine itself, but with a worn or substandard inner shield.

The HALANSM® 220757 Advantage:

Our 220757 Shield is specifically engineered to meet or exceed OEM tolerances for the 200A mild steel cutting process. Constructed from high-purity, oxygen-free copper, the HALANSM® shield offers superior thermal conductivity. This means the shield itself runs cooler, resists warping under extreme heat, and maintains the precise compression needed for a stable plasma arc. By stabilizing the arc envelope, our 220757 shield helps minimize dross, resulting in cleaner cuts and significantly extending the life of your expensive electrodes and nozzles.

Application & Compatibility Matrix:

To maximize the performance of your HALANSM® 220757 shield, it must be used as part of a matched consumable set. Below is a reference matrix for the 200A Mild Steel application in the HPRXD series:

Component Role

HALANSM® Model Number

OEM Cross Reference

Primary Function

Outer Shield Cap​

Compatible Part

220637​

Secures the entire consumable stack and directs the shield gas flow.

Inner Shield​

220757​

220757​

Protects the nozzle tip and assists in arc constriction for fine cut quality.

Nozzle Retaining Cap​

Compatible Part

220762​

Holds the nozzle firmly in place against the shield.

Nozzle​

Compatible Part

220758​

Focuses the plasma arc into a precise cutting stream.

Swirl Ring​

Compatible Part

220343​

Creates the vortex gas flow that cools the nozzle and focuses the arc.

Electrode​

Compatible Part

220342​

Generates the plasma arc; requires maximum protection.

Water Tube​

Compatible Part

220340​

Provides critical internal water cooling for the torch head.

Strategic Recommendations:

When servicing your HPR260XD or HPR400XD torches, we recommend replacing the shield, nozzle, and swirl ring as a complete assembly. Using a mismatched or worn shield (like an incorrect 80A shield) with new consumables will compromise cut quality and negate the benefits of high-quality parts like the HALANSM® 220757.
