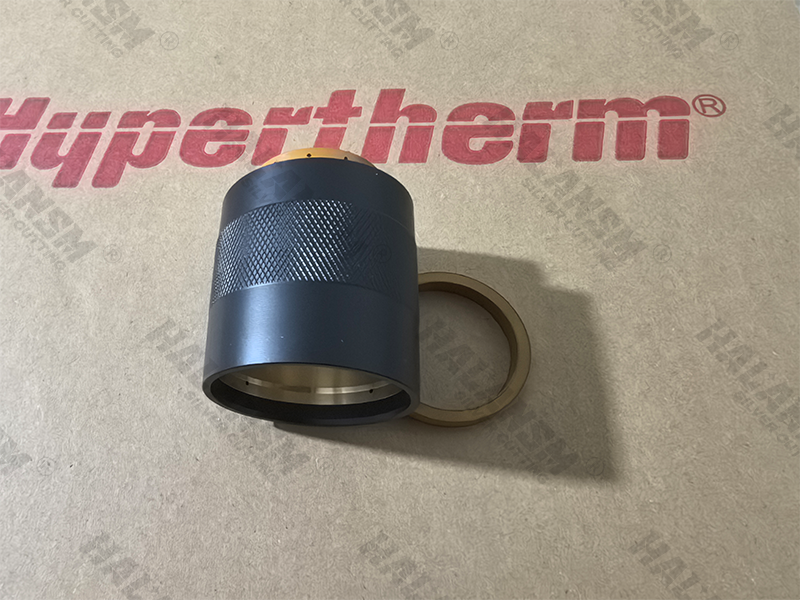

In high-amperage plasma cutting applications such as those handled by the Hypertherm HPR260XD and HPR400XD systems, the integrity of the torch head is non-negotiable. While often overlooked, the Nozzle Retaining Cap is a critical component responsible for maintaining the precise compression of the plasma arc. A poorly fitting or warped retainer cap can lead to catastrophic torch failures, including nested shorting and excessive dross. HALANSM® is proud to present the 220760 Nozzle Retaining Cap, an industrial-grade upgrade designed to protect your significant investment in plasma technology.
Uncompromising Structural Integrity
The HALANSM® 220760 is not just a spare part; it is a precision-engineered solution. Manufactured to exact OEM tolerances, this retaining cap ensures a perfect mechanical fit every time. Its robust housing provides uniform clamping pressure across the nozzle face, preventing unwanted vibration or movement during high-speed piercing operations.
Advanced Material Science for Extreme Heat
We utilize premium-grade materials selected for their exceptional thermal stability. Unlike inferior alternatives that can soften or crack under intense heat cycles, the HALANSM® 220760 maintains its structural rigidity. This resistance to thermal deformation is crucial for preserving the critical stand-off distance between the nozzle and the workpiece, directly impacting cut quality and consumable lifespan.
Reduce Costs Without Sacrificing Performance
Opting for the HALANSM® 220760 means gaining access to a premium aftermarket part at a fraction of the OEM cost. By preventing common failure modes associated with substandard retainers, shops can significantly reduce their total cost of ownership while maximizing the duty cycle of their HPR series torches.
Complete Your Setup With Confidence
To ensure optimal performance, the HALANSM® 220760 must be used as part of a matched consumable set. Below is a reference matrix detailing the compatible OEM part numbers required for a comprehensive 260A mild steel cutting stack rebuild:
Component Role | HALANSM® Model Number | OEM Cross Reference | Primary Function |
|---|---|---|---|
Outer Shield Cap | Compatible Part | 220637 | Secures the entire consumable stack and directs the shield gas flow. |
Inner Shield | Compatible Part | 220757 | Protects the nozzle tip and assists in arc constriction. |
Nozzle Retaining Cap | 220760 | 220760 | Applies precise mechanical force to secure the nozzle and shield. |
Nozzle | Compatible Part | 220758 | Focuses the plasma arc into a precise cutting stream. |
Swirl Ring | Compatible Part | 220343 | Creates the vortex gas flow that cools the nozzle. |
Electrode | Compatible Part | 220342 | Generates the plasma arc; requires maximum protection. |
Strategic Recommendations:

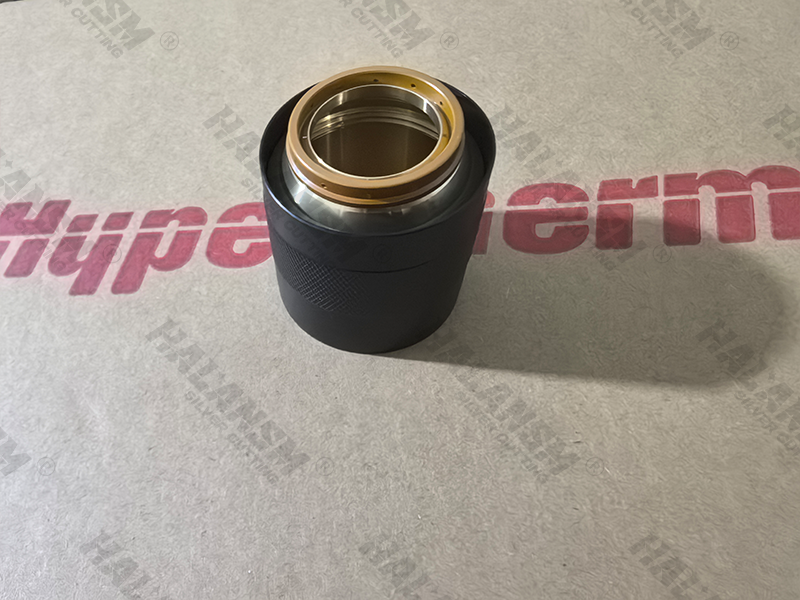

When servicing your HPR260XD or HPR400XD torches, always inspect the O-ring groove and threads of the retaining cap for wear. Pairing a new HALANSM® 220760 with fresh nozzles and swirl rings as a complete kit ensures consistent arc starts and the cleanest possible cut edges.
