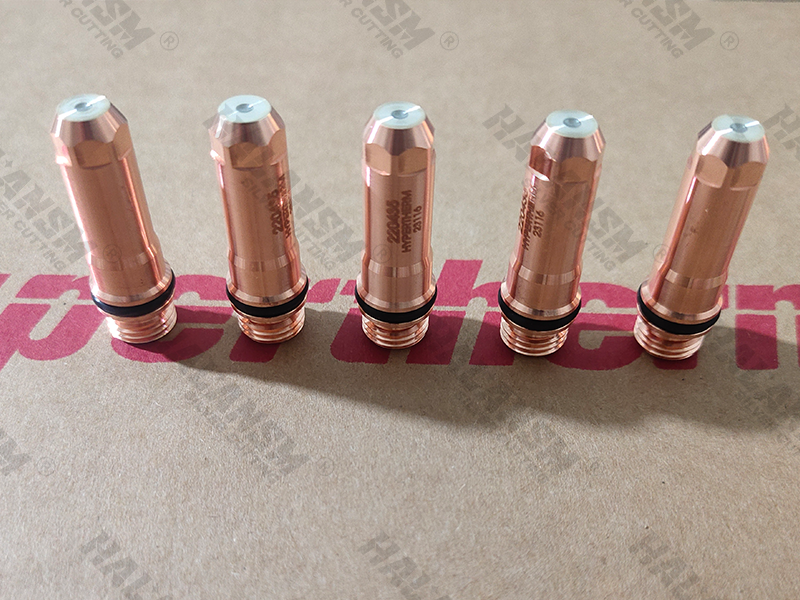

The Powerhouse Behind Heavy-Duty Fabrication: The HALANSM® 220629 Electrode
In heavy fabrication and structural steel manufacturing, speed and precision are non-negotiable. When tackling thick plate cutting on a Hypertherm HPR400XD, the quality of your bevel cuts can make or break a weld joint. At the heart of this high-precision operation lies the electrode. Generic replacements often fail under the extreme thermal load, leading to arc instability and costly downtime. This is where the HALANSM® 220629 Bevel Electrode makes a definitive difference.
Technical Deep Dive: What Makes the 220629 Superior?
Designed specifically as a high-current, bevel-cutting solution for the HPR400XD platform, the HALANSM® 220629 is built to withstand the rigors of industrial CNC plasma systems .
Built for Extreme Thermal Cycling: Plasma bevel cutting requires the torch to maintain a stable arc at extreme angles through thick material. The HALANSM® 220629 utilizes a robust hafnium insert mated to a high-purity copper body, engineered to resist thermal erosion far better than standard electrodes. This durability ensures consistent cut quality from the first pierce to the last.
Precision Engineered for True Bevel: Achieving accurate V, Y, or X-type bevels for welding preparation requires absolute arc integrity. The 220629 features a precisely centered hafnium tip that promotes a stable, focused pilot arc. This minimizes dross and eliminates the need for secondary grinding, saving significant labor hours on large fabrication orders.
Maximizing Your Investment: While the upfront cost of a high-grade electrode matters, the total cost per cut is what impacts your bottom line. By choosing HALANSM®, you gain an electrode that significantly outlasts inferior alternatives. This means fewer changeovers, less machine idle time, and a drastic reduction in consumable waste—directly increasing your shop's profitability.
Complete Your Setup: The HPR400XD 400A Bevel Stack
Pairing the HALANSM® 220629 with the correct supporting consumables is critical for unlocking its full potential. Below is the definitive stack configuration for HPR400XD 400A Bevel Cutting :
Component Position | HALANSM® Model Number | OEM Cross Reference | Primary Function |
|---|---|---|---|
Outer Shield Cap | Compatible Part | 220637 | Secures the entire stack and directs the shield gas flow. |
Inner Shield | Compatible Part | 220636 | Protects the nozzle tip and assists in arc constriction. |
Nozzle Retaining Cap | Compatible Part | 220635 | Applies precise mechanical force to secure the nozzle. |
Bevel Nozzle | Compatible Part | 220632 | Focuses the plasma arc at a specific angle for true bevel cutting. |
Swirl Ring | Compatible Part | 220631 | Creates the vortex gas flow that cools the nozzle. |
Electrode (Core) | 220629 | 220629 | Generates the plasma arc; requires maximum protection. |
Water Tube | Compatible Part | 220571 | Provides critical internal water cooling for the torch head. |
Frequently Asked Questions (FAQ)
Q: Is the HALANSM® 220629 compatible with my existing HPR400XD torch?
A: Yes. The HALANSM® 220629 is dimensionally identical to the OEM Hypertherm 220629, ensuring a true drop-in replacement without requiring any modifications to your torch or CNC programming.
Q: What is the difference between the standard 220629 and the SilverPlus version?
A: Hypertherm offers a SilverPlus® variant (Part # 420530) which uses a silver front-end for extended life. The HALANSM® 220629 provides an alternative engineered to OEM-critical tolerances. For those seeking even longer life, HALANSM® also offers Silver-equivalent upgrades.
Q: Can I use the 220629 for standard flat cutting, or is it only for beveling?
A: While specifically highlighted for its role in bevel stacks, the 220629 is a 400A electrode capable of handling standard flat cutting applications on the HPR400XD. However, using the correct nozzle and shield for the job (flat vs. bevel) is always recommended.
