When it comes to high-precision fabrication and structural steel manufacturing, the difference between a "good enough" cut and a weld-ready bevel often lies in the smallest component: the plasma nozzle. In the demanding environment of the Hypertherm HPR400XD, the OEM nozzle is a critical consumable that dictates cut quality, dross levels, and overall torch life. The HALANSM® 220632 Bevel Nozzle isn't just a replacement; it's an engineering upgrade designed to meet the rigorous standards of industrial CNC plasma cutting.
The Engineering Behind HALANSM® 220632

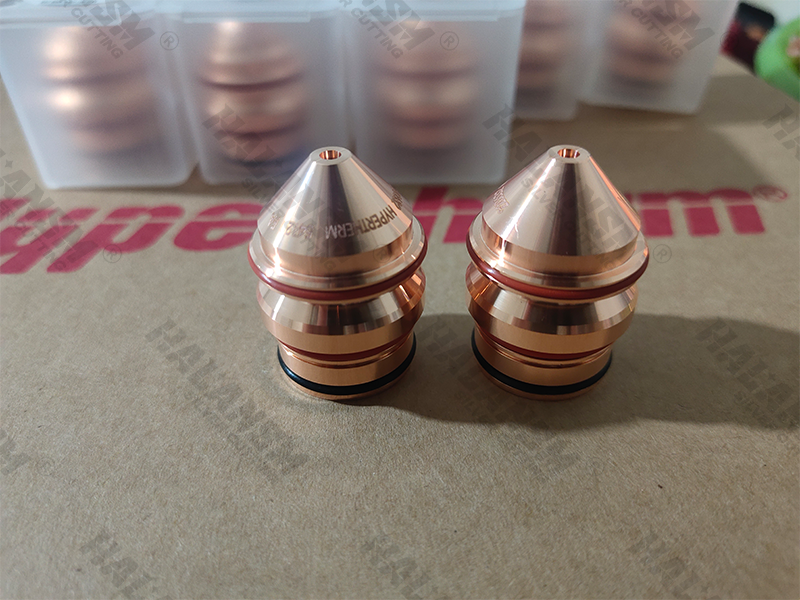

The 220632 is specifically designed as a 400A Mild Steel Bevel Nozzle, playing a pivotal role in creating the angled cuts required for preparing heavy plate joints.
Precision Cooling Channels: Our engineering team has meticulously replicated the OEM-spec internal geometry, including optimized cooling channels. These channels ensure that the critical tip area is sufficiently cooled during high-load 400A operations, preventing premature thermal deformation.

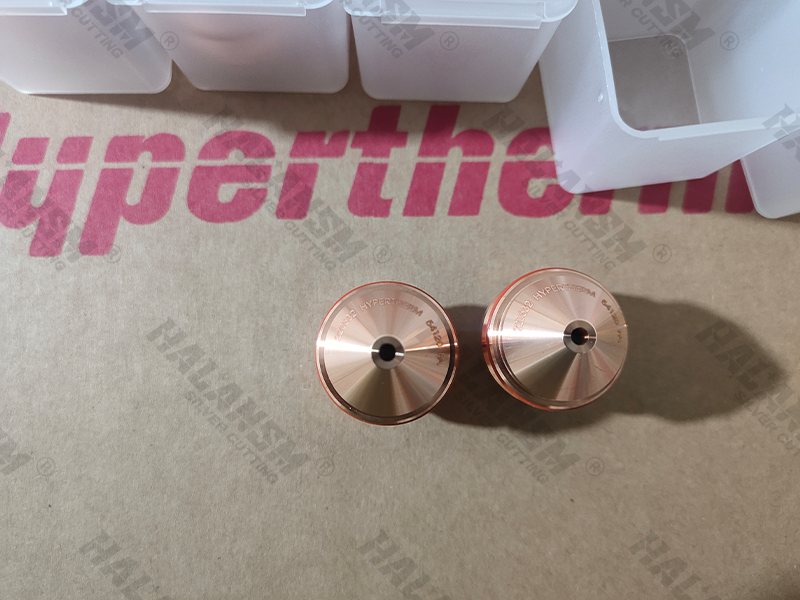

Surface Integrity and Finish: The HALANSM® 220632 features a mirror-like surface finish inside the orifice. This precision prevents premature arc constriction and ensures a stable, focused plasma stream. A high-quality nozzle directly translates to smoother kerfs and drastically reduces the amount of post-cut grinding required on beveled edges.
Material Synergy: Crafted from premium-grade copper alloy with advanced heat treatment, the 220632 offers superior thermal conductivity and wear resistance, ensuring it lasts through demanding production schedules.
Unlocking System-Wide Performance
A plasma nozzle does not operate in isolation. To achieve the maximum potential of your HPR400XD torch, the HALANSM® 220632 must be paired with the correct supporting consumables. Using a mismatched nozzle or swirl ring can lead to arc instability and rapid nozzle failure.
Below is a detailed matrix of the compatible OEM components required to assemble a fully functional 400A Mild Steel Bevel Stack:
Component Role | HALANSM® Model Number | OEM Cross Reference | Primary Function |
|---|---|---|---|
Outer Shield Cap | Compatible Part | 220637 | Secures the consumable stack and provides final gas wash for cut quality. |
Inner Shield | Compatible Part | 220636 | Protects the nozzle and assists in arc constriction. |
Nozzle Retaining Cap | Compatible Part | 220635 | Applies the precise mechanical force to secure the nozzle and shield. |
Bevel Nozzle | 220632 | 220632 | Focuses the plasma arc at a specific angle for true bevel cutting. |
Swirl Ring | Compatible Part | 220631 | Creates the vortex gas flow that cools the nozzle and centers the arc. |
Electrode | Compatible Part | 220629 | Generates the plasma arc; requires maximum protection from a quality nozzle. |
Water Tube | Compatible Part | 220571 | Provides critical internal water cooling for the torch head. |
Frequently Asked Questions (FAQ)
Q: Is the HALANSM® 220632 a direct replacement for the OEM part?
A: Yes. The HALANSM® 220632 is dimensionally identical to the genuine Hypertherm 220632. It is a true drop-in replacement that fits seamlessly into your existing HPR400XD torch without requiring any modifications.
Q: Can the 220632 nozzle be used for standard flat cutting?
A: While the 220632 is specifically manufactured and optimized as a bevel nozzle for angled cuts, it can technically function in standard flat cutting applications. However, for optimal performance and cost-efficiency, we recommend pairing the correct nozzle style (bevel vs. standard) with the appropriate set of consumables for your specific cutting task.
Q: How does the HALANSM® 220632 reduce operating costs?
A: The HALANSM® 220632 is designed to maintain critical concentricity and surface finish far longer than generic aftermarket alternatives. This extended service life reduces the frequency of stoppages for part replacement. Furthermore, a perfectly functioning nozzle prevents arc scattering, which protects the 220629 electrode and 220631 swirl ring from premature failure—delivering the lowest possible cost-per-cut for your operation.
