Why the 220180 Swirl Ring Is the Hidden Key to Flawless 30A Cuts on Your HPR130XD, HPR260XD & HPR400XD — And How HALANSM® Delivers OEM-Grade Performance at a Fraction of the Cost

The 220180 Swirl Ring: Small Part, Massive Impact

When fabricators talk about plasma cut quality on Hypertherm's HyPerformance® HPR130XD, HPR260XD, and HPR400XD systems, the conversation usually lands on electrodes and nozzles. But ask any service technician what actually determines arc focus, gas dynamics, and downstream consumable life — and they'll point to a small, often-overlooked component: the swirl ring.

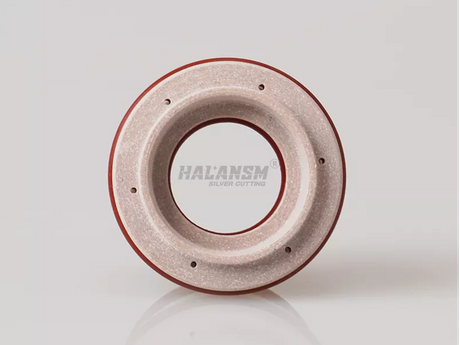

Part number 220180​ is Hypertherm's 30–45A swirl ring for the HPRXD platform . In Hypertherm's official HPR130XD consumables matrix, it sits at the heart of two critical stacks :

• 30A Mild Steel:​ 220747 shield cap · 220194 shield · 220754 nozzle retaining cap · 220193 nozzle · 220180 swirl ring​ · 220192 electrode · 220340 water tube

• 45A Stainless Steel & Aluminum:​ 220747 shield cap · 220202 shield · 220755 nozzle retaining cap · 220201 nozzle · 220180 swirl ring​ · 220308 electrode · 220340 water tube

The same 220180 also serves HPR260XD and HPR400XD at the 45A stainless/aluminum position , making it one of the most cross-compatible swirl rings in the entire HPRXD family.

What the 220180 Actually Does

The swirl ring is the component that turns a straight gas flow into a high-velocity, spiraling vortex. This vortex is what:

• Focuses the plasma arc​ into a tight, stable column — the foundation of square, dross-free cuts

• Stabilizes pilot arc transfer, ensuring >99% arc start reliability

• Protects the electrode and nozzle​ by maintaining even, predictable gas distribution — directly extending their service life

• Maintains system gas dynamics​ exactly as Hypertherm engineered them

When a swirl ring wears — its precision-angled orifices erode or clog — the vortex collapses. The result? Wandering arcs, blown electrodes, premature nozzle failure, and cut edges that need costly secondary operations. A $30 swirl ring, neglected, can destroy $200 worth of downstream consumables.

Three Reasons HALANSM® 220180 Outperforms Expectations

Advantage 1 — Dimensional Integrity Equal to OEM.

Every HALANSM® 220180 is machined to Hypertherm's published tolerances for the HPRXD platform. The precision-angled orifices that generate the gas vortex are replicated to micron accuracy, guaranteeing the same gas sealing, alignment, and plasma dynamics as the original . Install a HALANSM® 220180 and your torch performs exactly as Hypertherm designed it — because the part is to Hypertherm spec.

Advantage 2 — Engineered for the Invisible Battle.

The 220180 operates in a relentless environment: extreme heat, high-pressure gas flow, and continuous thermal cycling. HALANSM® constructs each 220180 from high-temperature, dimensionally stable engineering polymer — the same class of material Hypertherm specifies — chosen for its ability to maintain shape and strength beyond 260°C (500°F) . This prevents the micro-deformation that would alter gas flow angles and degrade cut quality.

Advantage 3 — Downstream Consumable Protection = Real Cost Savings.

Because the HALANSM® 220180 restores optimal vortex generation, your 220192 electrode and 220193 nozzle reach their full designed service life. In real-world production, switching to HALANSM® OEM-spec 220180 swirl rings typically extends electrode/nozzle life by 15–25%​ versus off-spec alternatives — turning a small per-part saving into a dramatic reduction in total cost per cut.

The Complete 30A Mild Steel Stack — Fully HALANSM® Compatible

For 45A stainless steel and aluminum cutting, the same 220180 pairs with 220201 nozzle, 220308 electrode, and 220202 shield — all available as HALANSM® compatible consumables .

Why Choose HALANSM® for Your HPRXD Platform?

Since 2005, HALANSM® (Changzhou Halan Machinery Technology Co., Ltd.) has specialized in premium aftermarket plasma consumables for every major brand . Our HPRXD consumable line — including the critical 220180 swirl ring — is engineered and manufactured to stringent tolerances using high-quality materials and the latest CNC machining technology . The result: burn longer, cut cleaner, extend electrode life, prevent nozzle damage​ — the four pillars of the HALANSM® promise .

Don't let a $30 component dictate the performance of a six-figure plasma system. Choose HALANSM® 220180 — the small part that makes a massive difference.
