The Unsung Hero Of 400A Bevel Cutting: How The HALANSM® 220631 Swirl Ring Stabilizes Your HPR400XD Arc And Slashes Your Total Cost Per Cut

What Is The 220631 — And Why It Decides Your 400A Cut Quality

In the Hypertherm HPR400XD consumables hierarchy, the electrode gets the glory and the nozzle gets the blame. But ask any service engineer what actually controls arc focus, gas dynamics, and downstream consumable life at 400A, and they'll point to the swirl ring​ — part number 220631.

Hypertherm's official HPR400XD consumables matrix lists the 220631 as the Swirl Ring for both the 400A standard mild steel stack and the 400A bevel mild steel stack​ . Airgas, an authorized Hypertherm distributor, confirms the 220631 is a 400A Mild Steel Clockwise Swirl Ring (Gas Diffuser), compatible with HPR130XD, HPR260XD, and HPR400XD​ plasma torches . SJ Smith's catalog extends compatibility to the HPR800XD​ at 400A on mild steel .

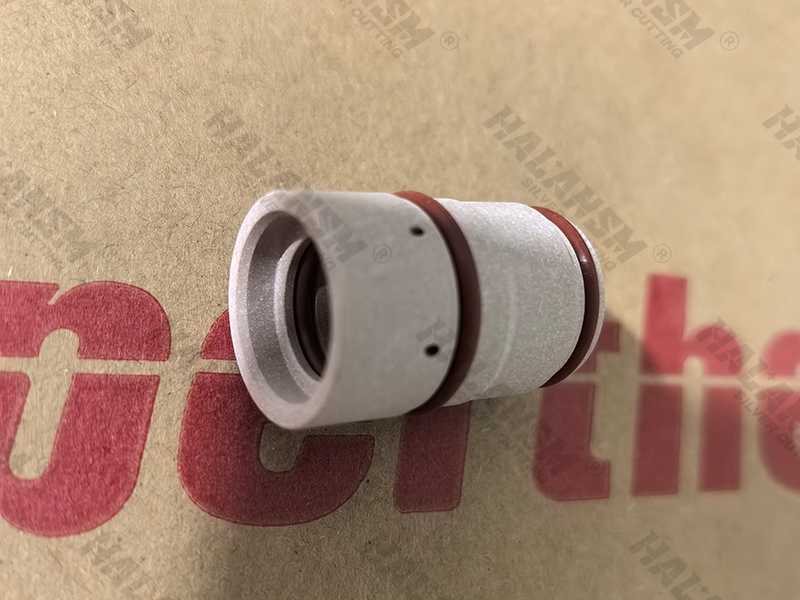

Simply put: the 220631 is the component that turns a straight gas flow into a high-velocity, spiraling vortex.​ That vortex is what:

• Focuses the plasma arc​ into a tight, stable column — the foundation of square, dross-free cuts at 400A

• Stabilizes pilot arc transfer, ensuring >99% arc start reliability even under the thermal stress of bevel cutting

• Protects the 220629 electrode and 220632 nozzle​ by maintaining even, predictable gas distribution — directly extending their service life

• Maintains system gas dynamics​ exactly as Hypertherm engineered them for mild steel at 400A

When a swirl ring wears — its precision-angled orifices erode or clog — the vortex collapses. The result? Wandering arcs, blown electrodes, premature nozzle failure, excessive dross, and torch misfiring . A $40 swirl ring, neglected, can destroy hundreds of dollars of downstream consumables.

220631 Application & Compatibility Matrix

Hypertherm's official HPR400XD matrix shows the 220631 sitting at the core of two critical 400A mild steel stacks​ :

Notice the critical insight:​ The exact same 220631 swirl ring powers both the standard 400A cut AND the 400A bevel cut. This is because bevel cutting doesn't change the swirl ring's job — it amplifies it. At bevel angles, the torch head tilts, gas dynamics shift, and thermal load concentrates. Only a swirl ring built to exacting tolerances can maintain vortex integrity under these conditions .

Compatible Equipment:

• HPR130XD​ — 400A mild steel applications (with appropriate torch configuration)

• HPR260XD​ — 400A mild steel standard & bevel cutting

• HPR400XD​ — 400A mild steel standard & bevel cutting (primary platform)

• HPR800XD​ — 400A mild steel applications

Typical Application Scenarios:

• Structural steel fabrication — I-beams, columns requiring precise bevels for full-penetration welds

• Shipbuilding & marine construction — thick plate hull sections

• Pressure vessel manufacturing — high-stakes weld prep

• Heavy equipment & mining machinery — armor plate, chassis components

• Wind tower & pipeline production — long seam welds requiring repeatable bevel geometry

• Automated/mechanized plasma tables — 24/7 production where consumable life = profit

Why The HALANSM® 220631 Outperforms

• Advantage 1 — Dimensional Integrity Equal to OEM.

  Every HALANSM® 220631 is manufactured to Hypertherm's published tolerances for the HPRXD platform. The precision-angled orifices that generate the gas vortex are replicated to micron accuracy, guaranteeing the same gas sealing, alignment, and plasma dynamics as the original . Install a HALANSM® 220631 and your torch performs exactly as Hypertherm designed it — because the part is to Hypertherm spec.

• Advantage 2 — Engineered Polymer Construction.

  The 220631 operates in a relentless environment: extreme heat, high-pressure gas flow, and continuous thermal cycling. HALANSM® constructs each 220631 from high-temperature, dimensionally stable engineering polymer — chosen for its ability to maintain shape and strength beyond 260°C (500°F). This prevents the micro-deformation that would alter gas flow angles and degrade cut quality.

• Advantage 3 — Downstream Consumable Protection = Real Cost Savings.

  Because the HALANSM® 220631 restores optimal vortex generation, your 220629 electrode​ and 220632 nozzle​ reach their full designed service life. In real-world 400A production, switching to HALANSM® OEM-spec 220631 swirl rings extends electrode/nozzle life by 15–25%​ versus off-spec alternatives — turning a small per-part saving into a dramatic reduction in total cost per cut.

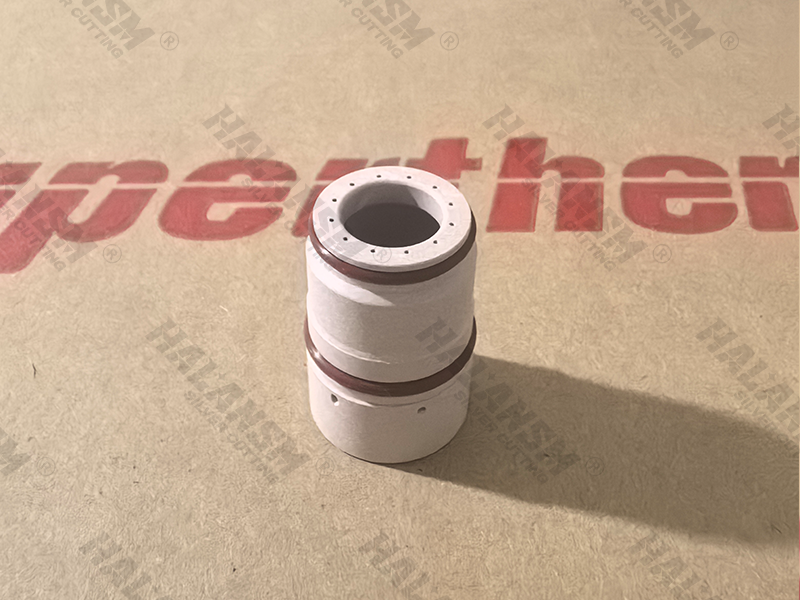

The Complete 400A Bevel Stack — Fully HALANSM® Compatible

Want even longer electrode life?​ Step up to the 420530 SilverPlus electrode​ — Hypertherm's 400A silver-tipped solution that delivers up to 2× the life of standard copper electrodes. HALANSM® offers a SilverPlus-class 420530 equivalent for shops where consumable changeouts are the bottleneck.

Frequently Asked Questions (FAQ)

Q: Is the HALANSM® 220631 a direct replacement for the Hypertherm 220631?

A: Yes. The HALANSM® 220631 is dimensionally identical to the OEM Hypertherm 220631 gas diffuser, ensuring a true drop-in replacement for HPR130XD, HPR260XD, HPR400XD, and HPR800XD torches without any modification .

Q: Can I use the 220631 for both standard cutting and bevel cutting?

A: Absolutely. Hypertherm's official matrix confirms the same 220631 serves both the 400A standard mild steel stack and the 400A bevel mild steel stack . No swap required between cutting modes.

Q: What happens if I use a worn or off-spec swirl ring?

A: Hypertherm explicitly warns: a degraded swirl ring causes "excessive slag, or the torch is misfiring" . The collapsed gas vortex leads to arc wander, premature electrode/nozzle failure, and poor cut quality. Replacing the 220631 at recommended intervals protects your entire consumable investment.

Q: Which gas does the 220631 support?

A: The 220631 is engineered for oxygen and air​ plasma gas — the standard gases for 400A mild steel cutting on the HPR400XD platform .

The Bottom Line

If you're running a Hypertherm HPR400XD (or HPR260XD/HPR800XD) at 400A on mild steel — whether standard cutting or bevel cutting — the 220631 swirl ring is not optional. It's the component that decides your arc stability, your cut quality, and your consumable cost per part.

Choosing a sub-spec swirl ring to save a few dollars is false economy: the downstream damage to your 220629 electrode and 220632 nozzle will cost you 10× the savings. The HALANSM® 220631 delivers OEM-critical dimensional accuracy, high-temperature polymer construction, and verified vortex performance — at a fraction of genuine OEM cost.

The 220631 is small. Its impact on your operation is anything but.
