The Engineering Role Of The 420734 Bevel Shield In Hypertherm MAXPRO200 200A Extreme Bevel Systems

The 420734 In Context: An Air-Specific Arc Constrictor For Extreme Geometry At 200 Amperes

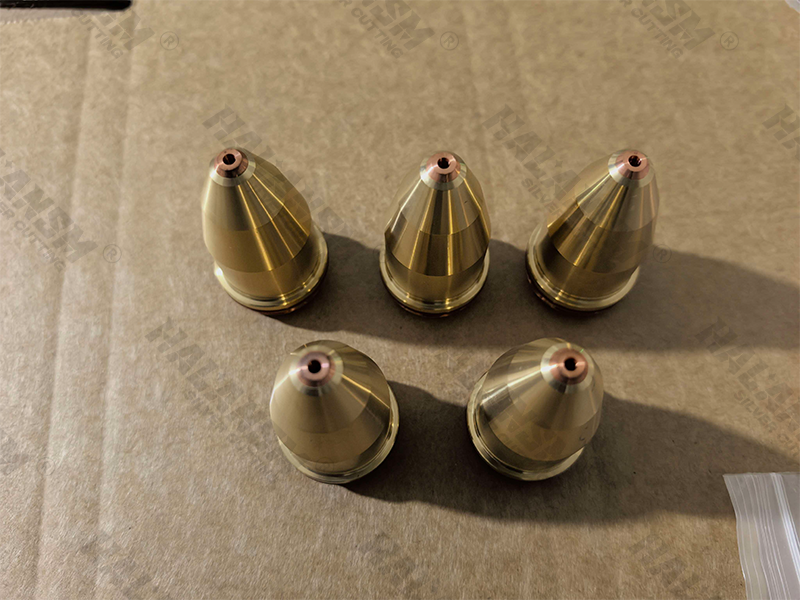

The 420734 is a 200A air plasma bevel nozzle in Hypertherm's Extreme Bevel consumable family for the MAXPRO200 air and oxygen plasma cutting systems . Within this family, the 420734 is the highest-amperage air nozzle​ — sitting above the 130A air sister nozzle (420829) and alongside the 200A oxygen sister nozzle (420733). It is specifically calibrated for the air plasma process on mild steel at 200A — where cutting is achieved through a combination of thermal melting and high-velocity gas mechanical ejection rather than the exothermic chemical reaction that defines oxygen cutting .

⚠️ Part Identity Clarification: In Hypertherm's official extreme bevel specification, 420734 is the 200A Air nozzle, while 420737 is the shield​ (shared by both 200A Air and 200A O₂ stacks). This article addresses the 420734 nozzle — the component that constricts and angles the 200A air plasma arc.

What makes the 420734 technically unique is its role within the mandatory seven-piece extreme bevel stack. Hypertherm's official instruction manual states unequivocally: "The standard MAXPRO200 water tube is not compatible with extreme bevel consumables. You must exchange it with the longer water tube (420823) prior to using extreme bevel consumables" . This requirement signals that extreme bevel cutting at 200A fundamentally re-architects the thermal and electrical path inside the torch head — and the 420734 nozzle is the component that must withstand the most aggressive conditions in that re-architected path.

The Physics Of 200A Air Plasma Nozzle Constriction

To understand why the 420734 matters, we must examine what happens at the molecular level during 200A air plasma cutting of mild steel.

The Air Plasma Energy Transfer Mechanism At 200 Amperes

Unlike oxygen cutting — where the O₂ gas chemically reacts with iron to release supplementary exothermic heat — air plasma cutting severs metal primarily through thermal melting and high-velocity gas mechanical ejection . The air stream (roughly 78% nitrogen, 21% oxygen, 1% argon) is ionized in the arc column to form a high-temperature plasma plume (~30,000°F) that melts the metal, while the supersonic gas velocity physically ejects the molten material from the kerf .

At 200A, this process demands the most aggressive gas acceleration in the entire MAXPRO200 platform. The 420734's internal bore must convert the maximum available pneumatic energy into a coherent, supersonic jet — while simultaneously managing the thermal load at the orifice where the arc makes its closest approach to the copper wall.

Arc Constriction And The Laminar Core

The nozzle's primary function is to constrict the plasma arc into a coherent, high-velocity jet. The 420734's internal bore is precision-machined to a specific converging-diverging profile that:

• Accelerates the ionized air​ to supersonic velocities at the orifice exit

• Mechanically pins the arc root​ to the center of the hafnium emitter in the paired 420732 electrode

• Establishes a laminar gas core​ that acts as a thermal insulator between the arc column and the copper nozzle wall

Any disruption to this laminar core — caused by bore surface imperfections, dimensional variance, or swirl ring mismatch — results in double arcing: the plasma arc attaches to the sidewall of the nozzle instead of passing cleanly through the orifice. Double arcing destroys nozzles within minutes .

Why Bevel Geometry At 200A Amplifies The Challenge

When the torch tilts to extreme angles (up to 66.5° per Hypertherm's specification ), the gravitational and electromagnetic symmetry of the plasma arc is fundamentally altered. The arc wants to travel vertically; the tilted nozzle forces it to exit at an angle. This asymmetry places enormous thermal and electromagnetic stress on the nozzle bore.

Compounding this, Hypertherm's own cut charts specify that bevel cutting dramatically increases effective material thickness . At maximum tilt, the 420734 must maintain arc constriction and cut quality through this amplified thermal load. A standard nozzle in this regime would fail catastrophically within seconds. The 420734's geometry is specifically engineered so that the arc's attachment point on the hafnium emitter (in the paired 420732 electrode) remains centered despite the tilted exit trajectory and increased effective thickness .

420734 vs. 420733 vs. 420829: The Family Divergence

A critical point of technical precision is why three extreme bevel nozzles coexist in the Hypertherm ecosystem. The divergence is rooted in plasma physics:

Source: Hypertherm Extreme Bevel Consumables Specification Sheet and Hypertherm MAXPRO200 Operating Data

Critical engineering note: The 420734, 420733, and 420829 are NOT interchangeable. The 420734 is specifically engineered for:

• 200A​ (not 130A) — the hafnium emitter in the 420732 electrode generates a larger, higher-energy arc that demands a wider bore

• Air​ (not oxygen) — the air process requires a specific gas wash geometry to manage the mechanical ejection mechanism

• 220488 swirl ring​ (shared with 420733) — the 220488's vortex characteristics are calibrated for 200A gas volumes

Installing a 420733 (O₂) or 420829 (130A Air) in a 200A Air process will result in loss of cut speed, excessive dross adhesion, arc instability, and accelerated nozzle wear.

The 200A Air Extreme Bevel Stack: Full Compatibility Matrix

Per Hypertherm's official specification sheet and MAXPRO200 consumables page , the 420734 operates in the following mandatory 200A Air configuration:

Source: Hypertherm Extreme Bevel Consumables Specification Sheet (Revision 1898040, 11/2020) and Hypertherm MAXPRO200 Official Consumables Page

Application Scenarios: Where 420734-Driven Air Bevel Cutting Excels

Hypertherm's official documentation confirms the extreme bevel family (including the 420734) is designed for :

• Steep Mechanized Beveling​ — Up to 66.5° torch tilt enables single-pass bevels that would require multiple operations with conventional plasma or oxyfuel

• Tube & Pipe Cutting​ — The extended conical shield (420737) provides accessibility in hard-to-reach curved surfaces; air process delivers clean bevels on mild steel pipe and is also effective on stainless and aluminum pipe

• Structural Steel Work​ — Beam flanges and areas with limited clearance become reachable ; 200A Air provides maximum versatility across material types

• Pressure Vessel Construction​ — The air process delivers a smaller heat-affected zone than oxyfuel, minimizing high-cost secondary operations

• Shipbuilding & Heavy Plate​ — MAXPRO200's 100% duty cycle at 200A enables lights-out bevel production on thick plate

• Robotic & Automated Cutting​ — 100% duty cycle at 200A enables continuous production

• Handheld Cutting​ — 65° handheld torch option allows operators better visibility and access to limited-clearance areas

• Mixed-Material Job Shop​ — Unlike O₂ process (mild steel only), the air process 420734 stack can cut mild steel, stainless steel, and aluminum — making it ideal for diverse fabrication

Why Air At 200A For These Applications?

Hypertherm's own operating data shows 200A Air plasma cutting delivers :

• Versatility​ — single gas for mild steel, stainless, aluminum

• High speed​ — 4885 mm/min on 6mm mild steel (Air plasma), 2794 mm/min on 12mm mild steel (Air shield)

• Cost efficiency​ — compressed air is dramatically cheaper than oxygen supply

• Safety​ — eliminates the handling of high-pressure oxygen and flammable acetylene (used in oxyfuel)

• Quality​ — less dross and a smaller heat-affected zone vs. oxyfuel, minimizing secondary operations

HALANSM® 420734: Technical Advantages Over Generic Alternatives

While Hypertherm's genuine 420734 sets the benchmark, HALANSM®'s engineering approach targets the specific failure modes that plague generic aftermarket bevel nozzles:

1. Bore Geometry Replication To Micron Tolerance

The 420734's converging-diverging bore profile is the single most critical dimension in the entire stack. At 200A Air, the plasma arc column carries maximum energy density — any bore variance of 0.01–0.03mm disrupts the laminar gas core and triggers double arcing. HALANSM® machines each 420734 bore to Hypertherm's published specification, ensuring the plasma arc exits the orifice with identical velocity, focus, and angular trajectory as the genuine OEM part. This geometric fidelity is what enables consistent 66.5° bevel angles across thousands of cut cycles at maximum amperage .

2. Silver Cutting™ Internal Bore Finishing

The interior surface of the 420734 bore — where the plasma arc makes its closest approach to the copper wall — receives HALANSM®'s proprietary Silver Cutting™ mirror finish. This ultra-polishing process eliminates micro-scratches and tooling marks that would otherwise:

• Create arc attachment sites on the bore wall (double arcing)

• Disrupt the laminar gas flow, causing arc wander

• Accelerate erosive wear at the orifice exit — particularly critical at 200A where thermal load is maximum

The result is a more stable arc column, fewer double-arcing events, and measurably longer nozzle service life compared to standard aftermarket alternatives.

3. Copper-Chromium-Zirconium Alloy Microstructure Control

The 420734 is manufactured from a high-purity copper-chromium-zirconium (CuCrZr) alloy, selected for its combination of high thermal conductivity and resistance to recrystallization under thermal shock . At 200A Air, the nozzle tip experiences the most extreme thermal gradient in the air process MAXPRO200 platform. HALANSM® controls the grain structure through precision heat treatment, ensuring dimensional stability even after repeated exposure to the intense heat of air plasma piercing. This microstructural discipline prevents the "bell-mouthing" deformation of the orifice that plagues inferior nozzles.

4. Two-Piece Design Integrity

Hypertherm's specification notes the extreme bevel nozzle features a "two-piece design for maximum cooling and long-lasting performance" . The 420734's two-piece construction (inner insert + outer body) creates a dedicated coolant channel that draws heat directly from the orifice region. HALANSM® replicates the interfacial tolerances of this two-piece assembly to micron accuracy, ensuring optimal heat transfer from the inner insert to the outer body — critical because air cutting at 200A places intense thermal load directly at the orifice .

5. Swirl Ring Interface Verification

The 420734 must mate perfectly with the 220488 swirl ring . HALANSM® verifies every 420734 nozzle against the 220488's gas vortex output characteristics at 200A flow rates, ensuring the swirl-induced centripetal force centers the arc root on the hafnium emitter in the paired 420732 electrode. This verification eliminates the #1 cause of extreme bevel nozzle failure: arc attachment drift caused by nozzle/swirl mismatch .

6. Extended Conical Shield Compatibility

The 420734 operates exclusively with the extended conical shield (420737) . This shield's extended length changes the torch-pivot length by >100% . HALANSM®'s 420734 is dimensionally verified to maintain the correct standoff distance and gas wash characteristics when paired with the 420737 shield, ensuring proper cut height and edge quality at maximum torch tilt .

7. Mandatory 420823 Water Tube Interface

The 420734's rear cooling jacket is dimensioned to interface exclusively with the 420823 extended water tube . HALANSM® validates the 420823-to-420734 cooling interface to ensure maximum heat extraction from the nozzle tip — critical because at 200A Air the thermal load at the orifice exceeds any other air-process consumable configuration . Using a standard water tube (220521) will cause the 420734 to overheat within minutes .

Nozzle Wear: Diagnostics For The 420734

Understanding wear patterns is essential for maximizing 420734 service life. Based on plasma nozzle wear mechanics and Hypertherm's extreme bevel specifications:

The HALANSM® advantage: Because HALANSM® holds bore geometry and Silver Cutting™ finish to OEM specification, operators consistently achieve the "normal wear" pattern even at 45°–66.5° torch tilt and 200A — maximizing nozzle service life and minimizing cost-per-bevel-cut.

Installation & Stack Replacement Protocol

Per Hypertherm's instruction manual , the mandatory sequence when installing the 420734 for Air extreme bevel cutting:

1. Remove​ standard water tube (220521 or equivalent) — "The standard MAXPRO200 water tube is not compatible with extreme bevel consumables"

2. Install​ extended water tube 420823​ (mandatory — standard tube will cause nozzle overheating)

3. Install​ swirl ring 220488​ (200A-specific; do NOT use 220529 130A O₂ swirl ring)

4. Install​ electrode 420732​ (200A hafnium emitter; do NOT substitute 130A 420824)

5. Install​ nozzle 420734​ (200A Air-specific; do NOT use 420733 O₂ or 420829 130A Air)

6. Install​ extended conical shield 420737

7. Secure​ with retaining cap 220936

8. Install​ O-ring 220935 without tab​ (the "without tab" variant is required for extreme bevel stacks)

⚠️ Four critical incompatibilities to never violate:

• Standard water tube (220521) → MUST be replaced with 420823

• 130A Air swirl ring (220488 is shared, but electrode 420824) → MUST use 200A electrode 420732

• 200A O₂ nozzle (420733) → MUST use 200A Air nozzle 420734

• 130A Air nozzle (420829) → NOT compatible with 200A stack

Violating any of these will result in rapid consumable failure and potential torch damage.

The Bottom Line: Why 420734 Is The Technical Gatekeeper Of 200A Air Extreme Bevel

The HALANSM® 420734 air bevel nozzle is where plasma physics meets extreme geometry under the most thermally demanding air-process cutting mode on the MAXPRO200 — 200A air plasma at up to 66.5° torch tilt. In this regime, the margin for error in bore geometry, surface finish, and microstructural integrity approaches zero. Generic nozzles — with inconsistent orifice dimensions, unverified swirl ring mating, or inadequate bore finishing — fail rapidly, triggering double arcing that can destroy not just the nozzle but the entire consumable stack.

HALANSM®'s engineering philosophy for the 420734 is rooted in replication-plus-enhancement:

• Replicate​ Hypertherm's OEM bore geometry to micron tolerance

• Enhance​ the internal bore with Silver Cutting™ mirror finishing

• Control​ CuCrZr microstructural integrity for thermal shock resistance at 200A

• Verify​ swirl ring (220488) and electrode (420732) mating compatibility at 200A flow rates

• Validate​ two-piece cooling assembly interfacial tolerances

• Ensure​ 420823 extended water tube cooling interface for maximum heat extraction

The result is a nozzle that delivers OEM-equivalent cut quality and service life at a fraction of genuine Hypertherm cost — making the 420734 the economically rational choice for fabricators running 200A air extreme bevel operations on MAXPRO200 systems, whether as part of a standalone MAXPRO200 or integrated into a HyPro2000 retrofit for legacy HT2000 platforms .

In 200A air extreme bevel cutting, the nozzle isn't just a consumable — it's the component that determines whether your 66.5° bevel is weld-ready or scrap.​ Choose HALANSM® 420734: engineered for the physics, priced for the fabricator.
