In the world of industrial CNC plasma cutting, the 200A current setting represents the "sweet spot" for fabricators who need to process medium-to-heavy thickness materials efficiently. Whether you are operating a Hypertherm HPR260XD or utilizing the 200A mode on an HPR400XD, the longevity and precision of your plasma torch depend entirely on the quality of your consumables. HALANSM® delivers a specialized 200A product series designed to meet the rigorous demands of professional metal fabrication.
Why Choose HALANSM® for Your 200A Applications?
HALANSM® understands that high-current cutting generates extreme thermal stress. Our 200A series incorporates advanced manufacturing techniques to ensure dimensional accuracy and material purity. By choosing HALANSM®, you gain access to OEM-matching tolerances at a fraction of the cost, minimizing machine downtime and maximizing your shop's productivity.
HALANSM® 200A Full Consumable Stack Compatibility
To help you navigate part replacements, here is a comprehensive breakdown of the standard and bevel cutting stacks for the 200A range within the HPRXD family:
Component Position | HALANSM® Model | OEM Cross Reference | Primary Function | Application Scenario |
|---|---|---|---|---|
Outer Shield Cap | Compatible Part | 220637 | The outermost protective layer that provides final gas wash and impact resistance. | Universal for all 200A cuts. |
Inner Shield | Compatible Part | 220761 (Std) / 220658 (Bevel) | Shields the nozzle and assists in arc constriction for better focus. | General fabrication / Weld prep. |
Nozzle Retaining Cap | Compatible Part | 220757 (Std) / 220845 (Bevel) | Applies precise mechanical force to hold the consumable stack securely in place. | Universal for 200A stacks. |

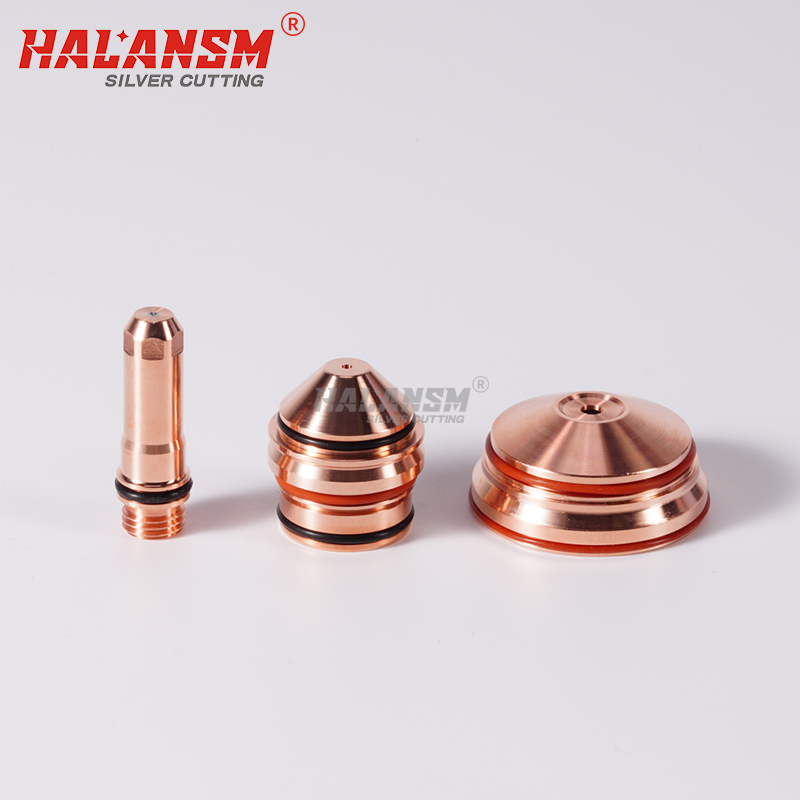

200A Nozzle | Compatible Part | 220354 | Focuses the plasma arc to pierce and cut through steel. | Standard flat cutting (Std). |
200A Bevel Nozzle | Compatible Part | 220659 | Precision-machined with a specific angle to generate bevel cuts. | Bevel / Weld preparation (Bevel). |
200A Swirl Ring | Compatible Part | 220353 | Generates the critical vortex gas flow that cools the nozzle and centers the arc. | Essential for all 200A operations. |
200A Electrode | Compatible Part | 220352 | Generates the primary plasma arc; houses the hafnium insert. | General fabrication. |
200A Bevel Electrode | Compatible Part | 220662 | Specialized electrode designed to work with high-angle bevel nozzles. | Structural steel beveling. |
Water Tube | Compatible Part | 220666 / 220700 | Delivers critical internal water cooling to prevent torch meltdown. | Required for sustained 200A cuts. |
Frequently Asked Questions (FAQ)
Q: Does HALANSM® offer a complete kit for upgrading my HPR260XD to 200A?
A: Yes. HALANSM® provides fully assembled 200A Mild Steel and Bevel cutting kits. You can purchase the entire consumable stack together, ensuring perfect alignment and eliminating the guesswork in part selection.
Q: What materials are used in the HALANSM® 220352 Electrode?
A: Our 200A electrodes feature a high-purity copper body with a precisely centered hafnium/tungsten insert, designed to withstand the intense heat of 200-amp operations while maintaining arc stability.
Q: Can these 200A parts be mixed and matched with older OEM consumables?
A: HALANSM® 200A series parts are designed to be fully backward compatible with original Hypertherm HPR260XD and HPR400XD systems. However, for optimal cut quality and safety, we recommend replacing the entire stack (Nozzle, Swirl Ring, Electrode) simultaneously.
