MAXPRO200 Extreme Bevel Consumables Series: Complete 130A/200A, Air/Oxygen Stack Engineering With HALANSM® Precision Replication

The MAXPRO200 Extreme Bevel Series: Four Stacks, One Physics Problem

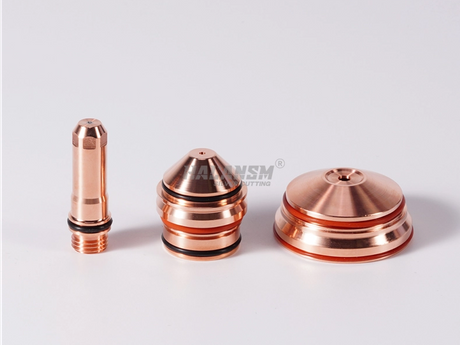

The HALANSM® MAXPRO200 Extreme Bevel Consumables Series​ is a complete family of plasma arc-constriction components engineered for Hypertherm's MAXPRO200 air and oxygen plasma cutting systems operating at torch tilt angles up to 66.5°​ . The series encompasses four distinct, fully cross-referenced stacks — 130A Air, 200A Air, 130A O₂, and 200A O₂ — each built around the same core physical principle: constricting and stabilizing a high-current plasma arc while the torch is pivoted far off the vertical axis.

Every component in this series — from the hafnium emitter electrode (420732/420824) to the extended conical shield (420737/420735) — shares one core physical mandate: maintain a stable, centered, laminar arc column despite the asymmetric electromagnetic and thermal loads induced by extreme tilt . The mandatory longer water tube (420823) and the divergent swirl ring coupling (220488 for 200A and 130A Air; 220529 for 130A O₂) are not optional optimizations — they are hard engineering requirements​ documented by Hypertherm .

Why Does Bevel Geometry Fundamentally Change Plasma Arc Physics?

To understand why the extreme bevel series demands entirely new component geometries, we must examine what happens to the plasma arc at 66.5° tilt.

Asymmetric Electromagnetic Force Distribution

At 200A, the plasma arc generates a Lorentz force (F = I × B) that constrains the arc column. In a standard 90° cut, this pinch force is symmetric. When the torch tilts to 66.5°, the force vector skews — the arc wants to travel vertically while the nozzle forces it to exit at an angle. This creates a lateral "bow" that presses the arc column against the lower inner wall of the nozzle and shield . Without precision-machined bore geometries and verified swirl ring coupling, the arc latches onto the bore wall, triggering double arcing​ — a failure mode that vaporizes copper and destroys the torch within minutes.

The Effective Thickness Doubling Effect

Hypertherm's own cut chart mathematics specify: Effective thickness = Workpiece thickness / sin(torch angle) . At 60° tilt, a 12mm workpiece behaves like 25.4mm at 90° — the effective thickness more than doubles​ . This means the extreme bevel nozzle must constrict an arc that is cutting through twice the effective material thickness, generating twice the thermal load at the orifice. The 200A stacks (420732 electrode + 420733/420734 nozzle) are specifically engineered with the thermal mass and bore geometry to handle this amplified load. The 130A stacks (420824 electrode + 420828/420829 nozzle) are dimensioned for the lower effective thickness at reduced amperage.

Swirl Ring Vortex And Arc Centering

The swirl ring (220488 or 220529) imparts a helical rotation to the plasma gas. This vortex creates a centripetal force that pins the arc root to the center of the hafnium emitter in the electrode . In extreme bevel applications, this centering force fights against the tilt-induced asymmetry. Hypertherm's specification reveals a critical coupling divergence: the 200A stacks (both Air and O₂) use the 220488​ swirl ring, while the 130A O₂ stack uses 220529​ . This is not arbitrary — the 220529's gas injection orifices are calibrated for the 130A O₂ flow volume and the 420828 nozzle's internal bore geometry. Mismatching swirl rings disrupts the vortex, causing arc wander and accelerated wear.

Double Arcing Mechanics At The Nozzle And Shield

Double arcing occurs when the plasma arc attaches simultaneously to the nozzle tip and an intermediate surface (shield wall or retaining cap). At 200A and 66.5° tilt, the margin for error in bore geometry is effectively zero. The extreme bevel nozzle's two-piece design — an inner insert within an outer body — creates a dedicated coolant channel that draws heat directly from the orifice region . Without this design, combined with the mandatory 420823 extended water tube, the nozzle would anneal and fail within seconds.

The Complete Four-Stack Consumable Cross-Reference Matrix

Per Hypertherm's official specification sheet (Rev 1898040) , here is the authoritative cross-reference for all four extreme bevel configurations:

⚠️ Universal mandatory constraint (verbatim from Hypertherm manual): "The standard MAXPRO200 water tube is not compatible with extreme bevel consumables. You must exchange it with the longer water tube (420823) prior to using extreme bevel consumables" . This applies to all four stacks. The standard 220521 water tube is physically too short to reach the cooling jacket of the extended conical shield (420737/420735) — installation without the 420823 will cause rapid thermal failure.

Additional compatibility note: Hypertherm confirms that "Standard MAXPRO200 retaining caps and swirl rings are compatible with extreme bevel consumables" . However, "compatible" does not​ mean "interchangeable across all stacks" — the 130A O₂ stack specifically requires the 220529 swirl ring, not the 220488 .

Sister-Part Divergence: Why 420733/420734 (200A) And 420828/420829 (130A) Are Not Interchangeable

A frequent source of torch destruction is the assumption that the extreme bevel nozzles are freely interchangeable. They are demonstrably not.

Source: Hypertherm Extreme Bevel Consumables Specification Sheet

The critical insight: The 220488 swirl ring serves both 200A stacks and the 130A Air stack, but the 130A O₂ stack requires 220529 . This means:

• ✅ You can​ swap between 200A Air (420734) and 200A O₂ (420733) by changing only the nozzle — the electrode (420732) and swirl ring (220488) remain constant

• ❌ You cannot​ move a 130A Air stack to 130A O₂ by changing only the nozzle — you must also swap the swirl ring from 220488 to 220529

• ❌ You cannot​ mix 130A and 200A components — the electrode hafnium emitter size, nozzle bore diameter, and shield cooling volume are all dimensionally mismatched

Application Scenarios: Matching Stack To Fabrication Demand

Hypertherm's official documentation confirms the extreme bevel series is designed for :

HALANSM® Extreme Bevel Series: Verifiable Engineering Advantages

HALANSM® manufactures every component in the extreme bevel series to meet Hypertherm's published specifications. The engineering facts:

1. Bore Geometry Replication To Micron Tolerance

Each nozzle (420733, 420734, 420828, 420829) is machined to Hypertherm's converging-diverging bore specification to within micron tolerance. At 200A, any bore variance of 0.01–0.03mm disrupts the laminar gas core and triggers double arcing. HALANSM®'s CNC machining process holds the orifice profile, exit angle, and swirl ring mating interface to OEM dimensions.

2. Silver Cutting™ Mirror-Finish Internal Bore

The internal bore of every HALANSM® extreme bevel nozzle receives the proprietary Silver Cutting™​ mirror polish. This eliminates micro-scratches and tooling marks that would otherwise create arc attachment sites on the bore wall — the root cause of double arcing. The mirror finish reduces micro-turbulence in the gas flow, maintaining laminar core stability even at 66.5° tilt.

3. CuCrZr Microstructure Control

All shields (420737, 420735) and nozzles are manufactured from high-purity copper-chromium-zirconium (CuCrZr) alloy. HALANSM® controls the grain structure through precision heat treatment, ensuring dimensional stability under the extreme thermal gradient of 200A extreme bevel cutting — where effective thickness can double . This microstructural discipline prevents the "bell-mouthing" deformation that plagues inferior nozzles.

4. Two-Piece Nozzle Assembly Integrity

HALANSM® replicates Hypertherm's two-piece nozzle design to micron-accurate interfacial tolerances . The inner insert and outer body create a dedicated coolant channel that draws heat directly from the orifice region. This design is mandatory for 200A operation — without it, combined with the 420823 extended water tube, the nozzle would anneal and fail.

5. Swirl Ring Interface Verification

Every HALANSM® nozzle is verified against its correct swirl ring coupling:

• 220488​ for: 200A Air (420734), 200A O₂ (420733), 130A Air (420829)

• 220529​ for: 130A O₂ (420828)

This verification eliminates arc attachment drift caused by nozzle/swirl mismatch — the #1 cause of extreme bevel nozzle failure.

6. 420823 Water Tube Dimensional Validation

The rear cooling jacket of every HALANSM® 200A shield (420737) and 130A shield (420735) is dimensionally validated against the 420823 extended water tube. The 420823's longer length reaches the cooling jacket that the standard 220521 cannot — using the wrong water tube leaves the shield uncooled and causes thermal runaway .

7. Extended Conical Shield Geometry

The 420737 (200A) and 420735 (130A) shields feature the extended conical profile that Hypertherm specifies for 66.5° tilt accessibility . HALANSM® replicates the conical angle, face plane orientation, and overall length to micron tolerance, ensuring the correct standoff distance is maintained throughout the full tilt range.

Wear Diagnostics Across The Extreme Bevel Series

The HALANSM® advantage: By holding bore geometry and Silver Cutting™ finish to OEM specification, operators consistently achieve the "normal wear" pattern even at 45°–66.5° torch tilt — maximizing service life and minimizing cost-per-bevel-cut.

Mandatory Installation Protocol For All Four Stacks

Per Hypertherm's instruction manual , the non-negotiable sequence:

1. Remove​ standard water tube (220521) — "The standard MAXPRO200 water tube is not compatible with extreme bevel consumables"

2. Install​ extended water tube 420823​ (mandatory for all four stacks)

3. Select the correct stack​ based on amperage and gas:

   • 200A Air → 420734 nozzle + 420732 electrode + 220488​ swirl ring

   • 200A O₂ → 420733 nozzle + 420732 electrode + 220488​ swirl ring

   • 130A Air → 420829 nozzle + 420824 electrode + 220488​ swirl ring

   • 130A O₂ → 420828 nozzle + 420824 electrode + 220529​ swirl ring

4. Install​ the matched swirl ring (verify 220488 vs 220529 for O₂ processes)

5. Install​ the matched electrode (420732 for 200A, 420824 for 130A)

6. Install​ the matched nozzle (420733/420734 for 200A, 420828/420829 for 130A)

7. Install​ shield (420737 for 200A, 420735 for 130A)

8. Secure​ with retaining cap 220936

9. Install​ O-ring 220935 without tab

⚠️ Five critical incompatibilities to never violate:

• ❌ Standard water tube (220521) → MUST use 420823

• ❌ 130A O₂ swirl ring (220488) → MUST use 220529 for 130A O₂ stack

• ❌ 200A electrode (420732) in 130A stack → MUST use 420824

• ❌ 130A electrode (420824) in 200A stack → MUST use 420732

• ❌ Mixing nozzle gas types (420733 O₂ in Air process, or 420734 Air in O₂ process) → will cause dross, arc instability, and accelerated wear

Frequently Asked Questions (FAQ)

Q: Can I run the 200A extreme bevel stacks without the 420823 water tube if I cut at lower amperage?

A:​ No. The 420823 is mandatory for all extreme bevel configurations regardless of operating amperage . The extended conical shield (420737/420735) physically requires the 420823's extended length to reach the cooling jacket. The standard 220521 water tube will not make thermal contact, causing the shield to overheat within minutes even at 130A.

Q: Why does the 130A O₂ stack use swirl ring 220529 while the 200A O₂ stack uses 220488?

A:​ The 220529 swirl ring's gas injection orifices are calibrated for the 130A O₂ flow volume and the 420828 nozzle's internal bore geometry . The 220488 is designed for the higher gas volumes of 200A operation (both Air and O₂). Using 220488 in a 130A O₂ stack disrupts the vortex pattern, causing arc wander and double arcing. This is the one stack in the extreme bevel series where the swirl ring is not shared .

Q: Can I switch between Air and O₂ processes at 200A by changing only the nozzle?

A:​ Yes, within the 200A series. The 200A Air stack (420734 nozzle) and 200A O₂ stack (420733 nozzle) share the same electrode (420732), swirl ring (220488), shield (420737), water tube (420823), and O-ring (220935 w/o tab) . You only change the nozzle (420734 ↔ 420733) to switch gases. However, the 130A series does NOT have this flexibility — switching from 130A Air to 130A O₂ requires both nozzle (420829 → 420828) AND swirl ring (220488 → 220529) changes .

Q: What is the maximum torch tilt angle, and what happens if I exceed it?

A:​ The maximum tilt angle is 66.5°​ per Hypertherm's specification . Exceeding this angle causes the plasma arc to strike the shield face directly, triggering double arcing. The extended conical shield geometry is engineered specifically for the 66.5° envelope — beyond this, the shield's protective clearance is compromised.

Q: How does the effective thickness calculation affect my cut charts?

A:​ Per Hypertherm's formula Effective thickness = Workpiece thickness / sin(torch angle) , a 12mm workpiece at 60° tilt has an effective thickness of 25.4mm . This means you must select cut chart parameters for 25.4mm material, not 12mm. Ignoring this results in insufficient power density, excessive dross, and accelerated consumable wear.

Q: Is the HALANSM® extreme bevel series compatible with HyPro2000 retrofit torches on HT2000 systems?

A:​ Yes. The HALANSM® MAXPRO200 extreme bevel consumables are fully compatible with HyPro2000 retrofit torch heads installed on legacy HT2000 systems, provided the correct 200A extreme bevel torch head geometry is used. The 420823 water tube, 220488/220529 swirl ring coupling, and micron-tolerance bore replication ensure OEM-equivalent performance in the retrofit configuration.

The Bottom Line: Why The HALANSM® Extreme Bevel Series Is Engineered For The Physics

The MAXPRO200 extreme bevel series represents the most thermally and electromagnetically aggressive cutting regime in the entire Hypertherm plasma portfolio — 200A plasma at up to 66.5° torch tilt, where effective material thickness more than doubles . In this regime, the margin for error in bore geometry, swirl ring coupling, surface finish, and cooling interface integrity approaches zero.

Generic consumables — with inconsistent orifice dimensions, unverified swirl ring mating, or inadequate bore finishing — fail rapidly, triggering double arcing that destroys not just the nozzle but the entire torch head. The four stacks in this series demand absolute precision:

• 200A Air: 420737·220936·420734·220488·420732·420823·220935 w/o tab

• 200A O₂: 420737·220936·420733·220488·420732·420823·220935 w/o tab

• 130A Air: 420735·220936·420829·220488·420824·420823·220935 w/o tab

• 130A O₂: 420735·220936·420828·220529·420824·420823·220935 w/o tab

HALANSM®'s engineering philosophy for the extreme bevel series is rooted in replication-plus-enhancement:

• Replicate​ Hypertherm's OEM bore geometries to micron tolerance across all four stacks

• Enhance​ internal bores with Silver Cutting™ mirror finishing to eliminate double-arc initiation sites

• Control​ CuCrZr microstructural integrity for thermal shock resistance at 200A with effective thickness doubling

• Verify​ swirl ring coupling (220488 for 200A/130A Air; 220529 for 130A O₂) at flow rates specific to each stack

• Validate​ 420823 extended water tube cooling interface for maximum heat extraction

• Ensure​ two-piece nozzle assembly interfacial tolerances for dedicated orifice cooling

The result is a consumable series that delivers OEM-equivalent cut quality and service life at a fraction of genuine Hypertherm cost — making HALANSM® the economically rational choice for fabricators running extreme bevel operations on MAXPRO200 systems, whether as part of a standalone MAXPRO200 or integrated into a HyPro2000 retrofit for legacy HT2000 platforms.

In 200A extreme bevel cutting, consumables aren't just wear items — they are the components that determine whether your 66.5° bevel is weld-ready or scrap.​ Choose HALANSM® MAXPRO200 Extreme Bevel Series: engineered for the physics, priced for the fabricator.
