In the world of industrial plasma cutting, the difference between a perfectly pierced 16-gauge sheet and a warped, dross-covered edge often comes down to the quality of the consumables. For operators of the Hypertherm HPR260XD and HPR400XD systems, the 80A and 130A current ranges represent the "sweet spot" for high-speed, precision cutting of thin to medium gauge mild steel, stainless steel, and aluminum.

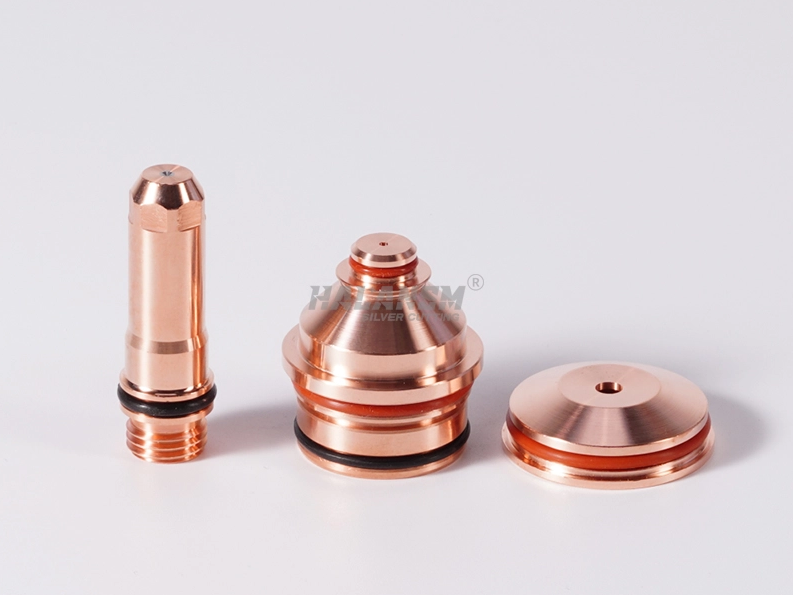

The HALANSM® 80A & 130A series consumables are not merely replacements; they are engineered upgrades designed to unlock the full potential of your XD torch system. Whether you are running a high-volume HVAC duct fabrication shop or a custom automotive shop, maintaining a consistent plasma arc is critical.
Why Choose HALANSM® for Your 80A and 130A Needs?
Silver Cutting™ Thermal Dynamics: Our proprietary Silver Cutting™ technology focuses on maximizing thermal conductivity. The 80A and 130A nozzles feature ultra-smooth internal orifices that minimize arc scattering, resulting in cleaner kerfs and virtually slag-free edges that require little to no secondary grinding.
Extended Service Life: Utilizing premium-grade copper alloys and advanced manufacturing tolerances, the HALANSM® retaining caps and swirl rings provide superior cooling and gas swirl. This means less warping under heat stress and a longer lifespan for your critical 220181 (130A) and 220187 (80A) electrodes.
Seamless Drop-In Compatibility: We understand that downtime is expensive. Every component in the HALANSM® 80A/130A series is reverse-engineered to match OEM dimensions to the micron, ensuring a perfect fit into your existing HPRXD consumable stack without requiring any modifications to your CNC torch height control.
System-Wide Compatibility: Your Guide to the HALANSM® 80A & 130A Stack
A plasma torch is a complex ecosystem. To achieve optimal performance, the nozzle, swirl ring, and electrode must work in perfect harmony. Below is a comprehensive table detailing the HALANSM® compatible parts for the 80A and 130A cutting systems, including their OEM cross-references and specific applications.
Component Position | HALANSM® Model | OEM Cross Reference | Application / Current | Primary Function |
|---|---|---|---|---|
Outer Shield Cap | Compatible Part | 220747 | Universal (80A/130A) | The outermost protective layer that secures the entire consumable stack. |
Inner Shield Cap | Compatible Part | 220189 (80A)220183 (130A) | Specific to 80A / 130A | Protects the nozzle from spatter and assists in focusing the plasma arc. |
Nozzle Retaining Cap | Compatible Part | 220756 | Universal (80A/130A) | Applies the precise mechanical force to hold the nozzle and swirl ring in alignment. |
Standard Nozzle | Compatible Part | 220188 (80A)220182 (130A) | Flat / Straight Cutting | Focuses the plasma stream for piercing and cutting through sheet metal. |
Bevel Nozzle | Compatible Part | 220806 (80A)220646 (130A) | Bevel / Weld Prep | Angled nozzle for creating weld-ready bevel cuts on plate stock. |
Swirl Ring | Compatible Part | 220179 | Universal (80A/130A) | Creates the vortex gas flow necessary to cool the nozzle and center the arc. |
Electrode | Compatible Part | 220187 (80A)220181 (130A) | Power Generation | Generates the primary plasma arc; contains the hafnium insert. |
Water Tube | Compatible Part | 220340 | Universal Coolant Line | Delivers high-pressure internal water cooling to prevent torch meltdown. |
Frequently Asked Questions (FAQ)
Q: Is the HALANSM® 130A nozzle a direct replacement for the OEM 220182?
A: Yes. The HALANSM® 130A nozzle is dimensionally identical to the genuine Hypertherm part. It is a true drop-in replacement that integrates flawlessly with your HPR400XD torch.
Q: My plasma cutter struggles with piercing 14-gauge steel without warping the material. Will upgrading to HALANSM® help?
A: Absolutely. The precision-machined orifice in the HALANSM® 130A nozzle ensures a stable, focused arc during piercing. This minimizes the heat-affected zone (HAZ), preventing burn-through and warping on light gauge materials.
Q: Can I mix HALANSM® 80A nozzles with OEM 130A electrodes?
A: While the torch might physically assemble, we strongly advise against mixing brands or amperage ratings. The tolerances are calculated based on the entire stack working together. Using mismatched parts can lead to arc instability, premature wear, and void any potential warranty.
