The HALANSM 220936 is the outer shield cap for Hypertherm HyPro2000 torches, listed under both "HyPro2000 for MAX200" and native "MAXPRO200" hosts — 50A/130A/200A one-cap-universal across the HyPro amp range (unlike MAX200 standard line where caps/mates split by amp). Copper body with ceramic insulator ring seats and locks the shield cup (220532@50A / 220620@130A / 220627@200A) to the torch barrel, while 220935 retaining cap handles inner lock (elec/swirl/noz). 220936 ≠ MAX200 standard caps (020423/120837) — HyPro/MAXPRO thread & seat differ.
220936
HALANSM®
HLN-220936

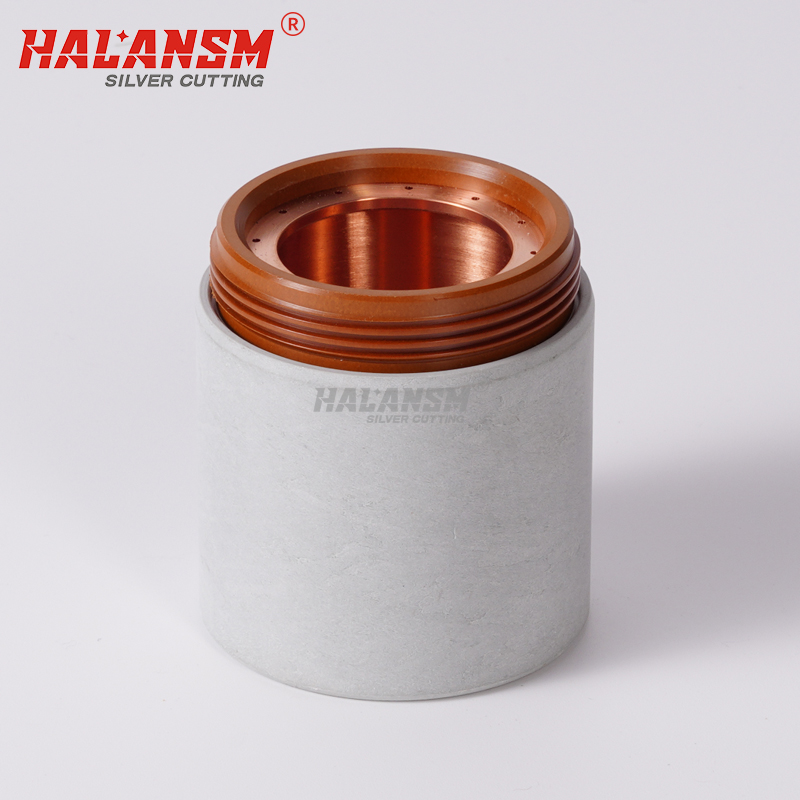

Shield Cap 220936 / 50-130-200A Universal Outer Cap for HyPro2000 (MAX200) & MAXPRO200 – HALANSM
220936 is Hypertherm's outer shield cap for the HyPro2000 torch family, appearing on two hosts: HyPro2000 retrofitted onto legacy MAX200 and native MAXPRO200. Copper body + ceramic insulator ring (white band) — seats the shield cup and protects the inner stack (elec/swirl/noz) from spatter and radiant heat. The inner counterpart is 220935 retaining cap, which locks elec+swirl+noz from the torch-head side; 220936 then locks the shield cup from the outside. Together 220935+220936 form the fixed cap pair for the entire HyPro/MAXPRO consumable family.
220936 in HyPro2000 / MAXPRO200 stack by amp
Amp | Elec | Swirl | Noz | Shield | Inner Cap | Outer Cap (this) |
|---|---|---|---|---|---|---|
50A | 220528 | 220529 | 220890 / 220891 | 220532 | 220935 | 220936 |
130A | 220537 | 220538 | 220539 | 220620 | 220935 | 220936 |
200A | 220540 | 220541 | 220542 | 220627 | 220935 | 220936 |
Key Points (buyer-facing)
One outer cap across 50/130/200A: Shield cup swaps by amp (220532 / 220620 / 220627), inner cap 220935 and outer cap 220936 stay put. Fewer SKUs than Powermax families where caps often split by amp, and fewer than MAX200 standard line where handheld (020423 graphite) and machine (120837 copper) are different part numbers.
Shield cap (outer) ≠ retaining cap (inner): 220936 = outer, locks shield cup to barrel; 220935 = inner, locks elec+swirl+noz from torch-head side. Both must be 2209xx series — cannot mix inner 220935 + outer MAX200 standard cap, or vice versa. Threads and seat geometry differ.
220936 ≠ MAX200 standard caps: Plain "MAX200" (no HyPro upgrade) runs handheld 40A = 020423 graphite cap or machine 40/100/200A = 120837 copper cap — thread & seat incompatible with 220935/220936. Forcing HyPro caps onto MAX200 standard barrel (or reverse) = thread gall + gas leak + arc wander.
Host confirmation: 220936 fits two hosts — HyPro2000 hanging on MAX200 backplane, and native MAXPRO200. Backplanes differ (MAX200 legacy cabinet vs MAXPRO200 newer cabinet), but HyPro torch + 220xxx consumables cross between them. Plain "MAX200" (no "HyPro2000" prefix on torch) = wrong line for 220936.
Real Shot: Images 1–11 above show the actual HALANSM torch ceramic head, Euro connector pins, cable coil, consumable-installed view and length comparison you will receive.
