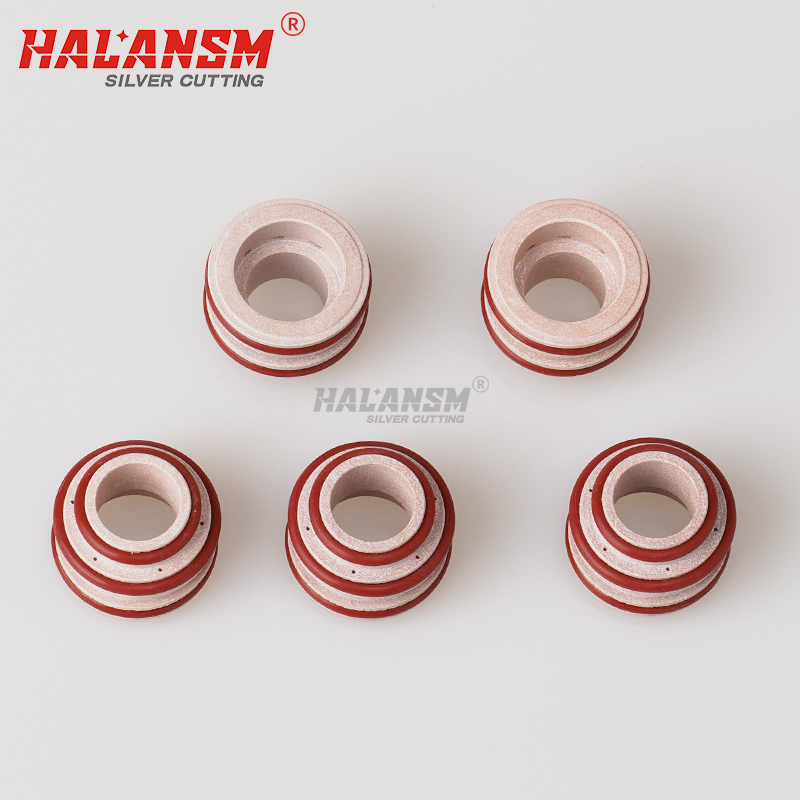

Pack of 5 HALANSM 220488 Swirl Rings replacements for Hypertherm HyPro2000 on MAX200 130A Pack of 5 HALANSM 220488 Swirl Rings replacements for Hypertherm HyPro2000 on MAX200 130A

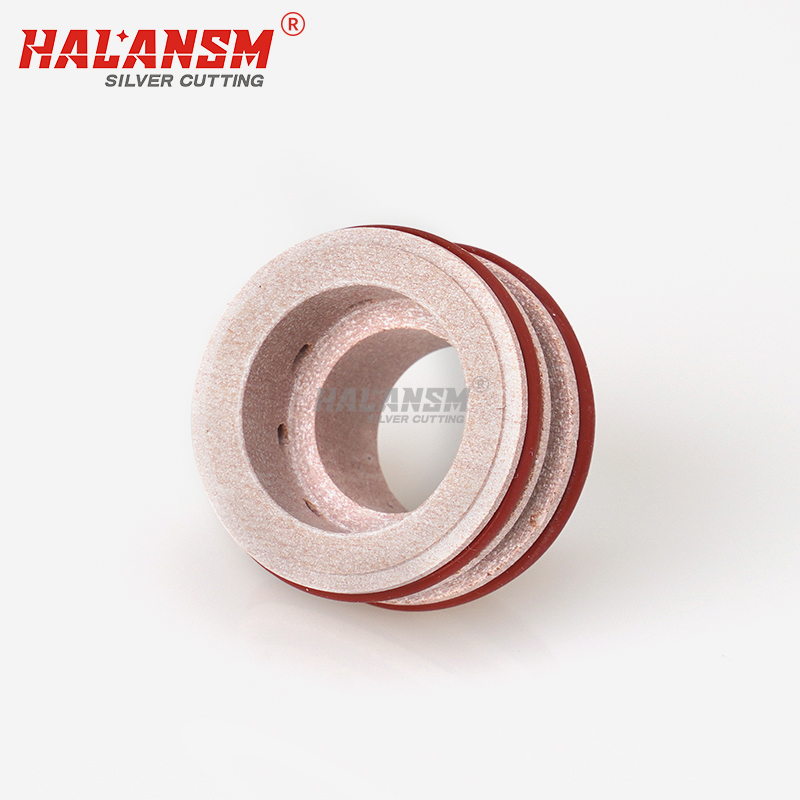

Top down view showing gas swirl channels of HALANSM 220488 for Hypertherm HyPro2000 on MAX200 130A Top down view showing gas swirl channels of HALANSM 220488 for Hypertherm HyPro2000 on MAX200 130A

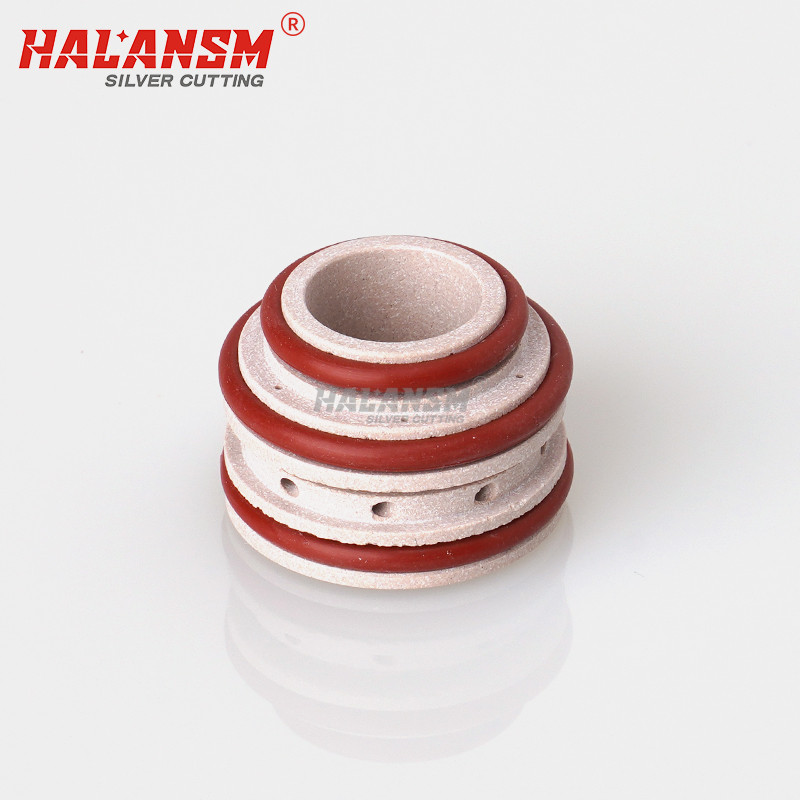

Side angle view of HALANSM 220488 Swirl Ring for Hypertherm HyPro2000 on MAX200 130A Side angle view of HALANSM 220488 Swirl Ring for Hypertherm HyPro2000 on MAX200 130A

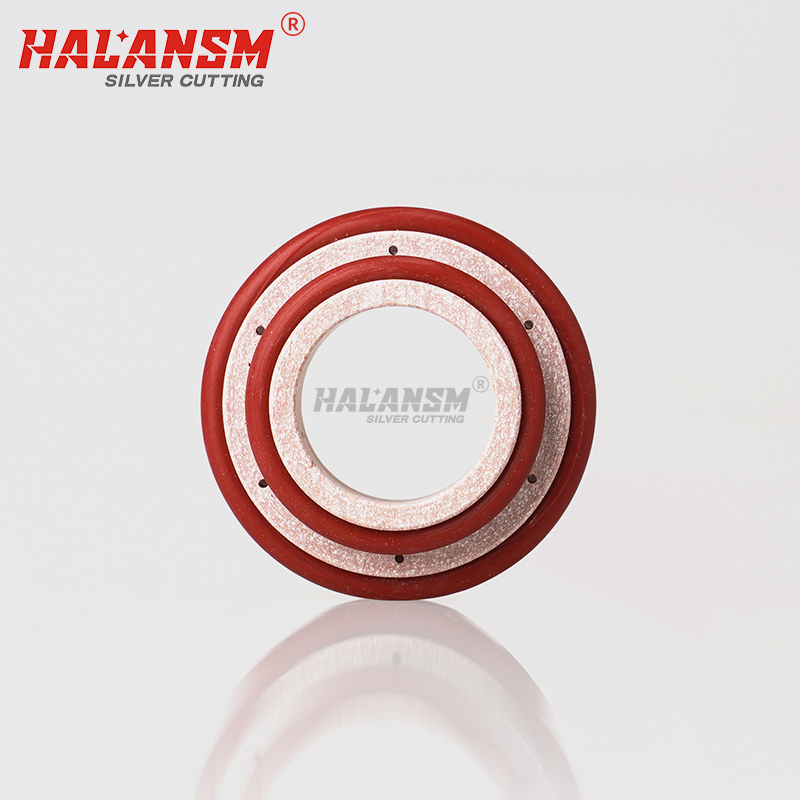

Replacement Swirl Ring 220488 for Hypertherm HyPro2000 on MAX200 130A Plasma Cutting Torch Consumables - HALANSM Replacement Swirl Ring 220488 for Hypertherm HyPro2000 on MAX200 130A Plasma Cutting Torch Consumables - HALANSM

loading

220488 Swirl Ring for Hypertherm HSD130 / MAXPRO200 130A 200A Plasma Cutting Torch Consumables

SKU:
Availability:
Quantity:
Inquire Add to Basket

PDF Export

The HALANSM 220488​ is the ceramic/lava swirl ring for Hypertherm HSD130​ and MAXPRO200​ plasma torches, covering both 130A and 200A in a single SKU (unlike lower-tier lines where swirls often split by amp). Precision-machined internal vanes generate the gas vortex that focuses the plasma arc — critical for cut quality and consumable life. 220488 body is ceramic/lava (not copper like MAX200 standard swirls), seated between electrode and nozzle in the HSD130/MAXPRO200 stack. Cross-reference note: buyer requesting via "HyPro2000 for MAX200" path should confirm — HyPro2000 130A uses 220538, 200A uses 220541; 220488 belongs to HSD130/MAXPRO200 host family, not HyPro2000.

  • 220488

  • HALANSM®

  • HLN-220488

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button
Previous:
Next:
Technical Specifications
Product Description
Catalogue
Model
220488
Type
Swirl Ring / Gas Diffuser
Amperage
130A / 200A (shared across both amps)
Material
Ceramic / Lava (high-temp rated)
Compatible Torch
Hypertherm HSD130 / MAXPRO200
Application
Machine / CNC Plasma & Mild Steel / Stainless / Aluminum
Paired Stack (130A)​
220487 elec + 220488 swirl​ + 220539 noz + 220620 shield + 220935/220936
Paired Stack (200A)​
220937 elec + 220488 swirl​ + 220542 noz + 220627 shield + 220935/220936
OEM Reference​
Hypertherm 220488



Swirl Ring 220488 / 130A & 200A Ceramic Swirl for HSD130 & MAXPRO200 – HALANSM

220488 is Hypertherm's ceramic/lava swirl ring for the HSD130 and MAXPRO200 plasma torch families, shared across 130A and 200A (shield + nozzle + electrode swap by amp, swirl stays 220488). The ceramic/lava body carries precision-machined vanes that impart a vortex spin to the plasma gas before it exits the nozzle — this vortex is what focuses the arc into a tight, stable column for clean cuts and even electrode wear.


220488 in HSD130/MAXPRO200 stack (130A & 200A)

Amp

Elec

Swirl

Noz

Shield

Caps

130A

220487

220488

220539

220620

220935 + 220936

200A

220937

220488

220542

220627

220935 + 220936


Key Points (buyer-facing)

  • Ceramic/lava body, not copper: 220488 is ceramic/lava construction, distinct from MAX200 standard swirls (020613/020607/020617/020604) which are copper-body. Ceramic handles higher thermal load and chemical stability in O₂/N₂/Ar-H₂ mixes better than copper in the HSD130/MAXPRO200 amp class.

  • 130A + 200A one swirl: Unlike some lower-tier lines where swirls split by amp, 220488 covers both 130A and 200A on HSD130/MAXPRO200 — only electrode/nozzle/shield swap by amp, swirl stays put. Fewer SKUs in stores.

  • Don't confuse with HyPro2000 swirls: If buyer arrives via "HyPro2000 for MAX200" path — HyPro2000 130A uses 220538 swirl, 200A uses 220541 swirl. Those are different part numbers, different torch barrel seat. 220488 = HSD130/MAXPRO200 barrel, not HyPro2000 barrel. Confirm torch badge reads "HSD130" or "MAXPRO200" before ordering.

  • Caps pair: 220488 sits inside the 220935 (inner retaining cap) + 220936 (outer shield cap) pair on HSD130/MAXPRO200 — both caps are 2209xx series, not MAX200 standard caps (020423/120837) and not interchangeable.


Real Shot: Images 1–11 above show the actual HALANSM torch ceramic head, Euro connector pins, cable coil, consumable-installed view and length comparison you will receive.
